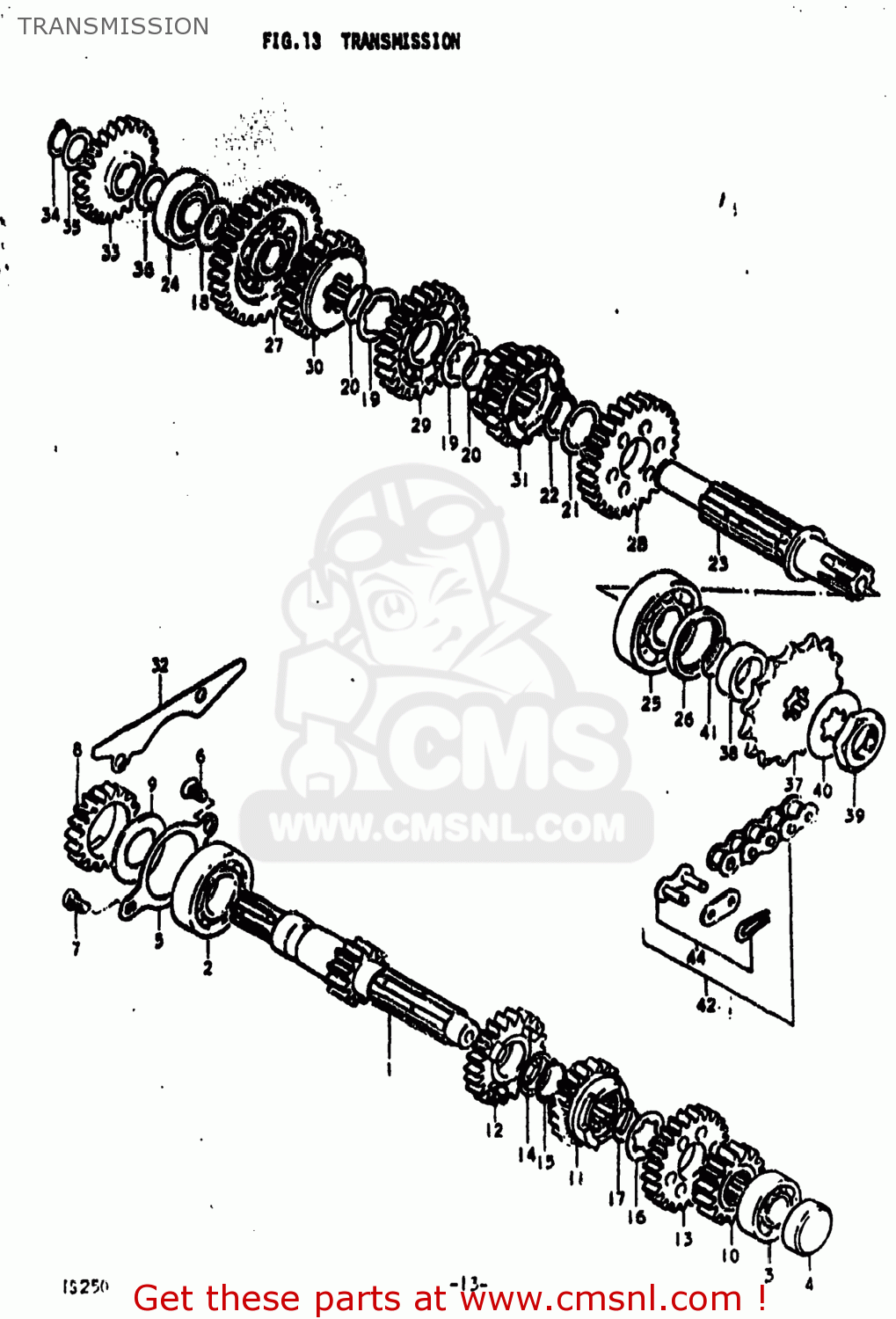

TRANSMISSION

ref

part #

description

quantity

1

2412130000
ref: 1

SHAFT,COUNTER

€ 70.50

2

0814362050
ref: 2
08143-62057

BEARING

€ 24.50

3

0811362030
ref: 3
09262-17023

BEARING

€ 14.00

4

0924130001
ref: 4
09241-30003

PLUG

€ 6.50

5

2474130100
ref: 5

PLATE,COUNTERSHAFT BEARING

€ 6.50

6

0212206128
ref: 6
02122-06127

SCREW

€ 3.00

7

0211206108
ref: 7
02112-06107

SCREW

€ 1.50

8-1

2628130700
ref: 8-1
26281-30001

GEAR,KICK STARTER DRIVE

€ 27.50

8-2

2628130001
ref: 8-2

GEAR,KICK STARTER DRIVE

€ 27.50

9

0916025009
ref: 9

WASHER(25X41X3)

€ 5.00

10

2422130000
ref: 10

GEAR,SECOND DRIVE

€ 29.00

11

2423130100
ref: 11

GEAR,THIRD DRIVE

€ 68.00

12

2424130000
ref: 12

GEAR,FOURTH DRIVE

€ 52.00

13

2425130100
ref: 13

GEAR,FIFTH DRIVE

€ 65.50

14

0821122281
ref: 14
09181-22139

SHIM

€ 4.00

15-1

0938022001
ref: 15-1
08331-3122A

CIRCLIP

€ 2.00

15-2

0833111229
ref: 15-2
08331-3122A

CIRCLIP

€ 2.00

16

0916722007
ref: 16

WASHER,LOCK

€ 3.50

17

0938022003
ref: 17

CIRCLIP

€ 13.50

18

0821117251
ref: 18

WASHER

€ 2.00

19

0916725004
ref: 19

WASHER

€ 5.50

20

0938025006
ref: 20

RING,SNAP

€ 2.00

21

0821125321
ref: 21

WASHER

€ 3.00

22

0938025003
ref: 22

RING,SNAP

€ 3.00

23

2413130001
ref: 23

SHAFT,DRIVE

€ 31.50

24

0814362030
ref: 24
08143-62037

BEARING

€ 18.50

25

0926222006
ref: 25
09262-22025

BEARING

€ 63.50

26

0928332003
ref: 26

SEAL,OIL(32X42X6)

€ 3.50

27

2431030001
ref: 27

GEAR,FIRST DRIVEN

€ 40.00

28

2432130000
ref: 28

GEAR,SECOND DRIVEN

€ 47.00

29

2433130100
ref: 29

GEAR,THIRD DRIVEN

€ 41.50

30

2434130001
ref: 30

GEAR,FOURTH DRIVEN

€ 50.00

31

2435130101
ref: 31

GEAR,5TH DRIVEN

€ 87.50

32

2487130000
ref: 32

PLATE,OIL RESERVOIR

€ 4.00

33

2626030001
ref: 33
26260-30002

GEAR,KICK STARTER IDLE

€ 46.00

34

0938017001
ref: 34

CIRCLIP

€ 2.00

35

0821117241
ref: 35

WASHER

€ 2.00

36

0916417002
ref: 36

WASHER

€ 0.00

37-1

2751118710
ref: 37-1

SPROCKET,ENGINE

€ 39.00

37-2

2751118700
ref: 37-2

SPROCKET,ENGINE

€ 36.00

37-3

2751118000
ref: 37-3

SPROCKET,ENGINE

€ 27.50

37-4

2751118720
ref: 37-4

SPROCKET,ENGINE

€ 18.00

38

0918022007
ref: 38

SPACER(22X32X11.5)

€ 10.00

39

0914022003
ref: 39

NUT

€ 10.00

40

0916722005
ref: 40

WASHER,LOCK

€ 2.50

41

0928022003
ref: 41

O RING(D:1.7,ID:22)

€ 2.50

42

2760016410
ref: 42

CHAIN,DRIVE #525TR-10

€ 55.00

43-1

2762016410
ref: 43-1
27620-30110

JOINT ASSEMBLY,CHAIN

€ 0.00

43-2

2762030110
ref: 43-2

JOINT ASSEMBLY,CHAIN

€ 0.00
