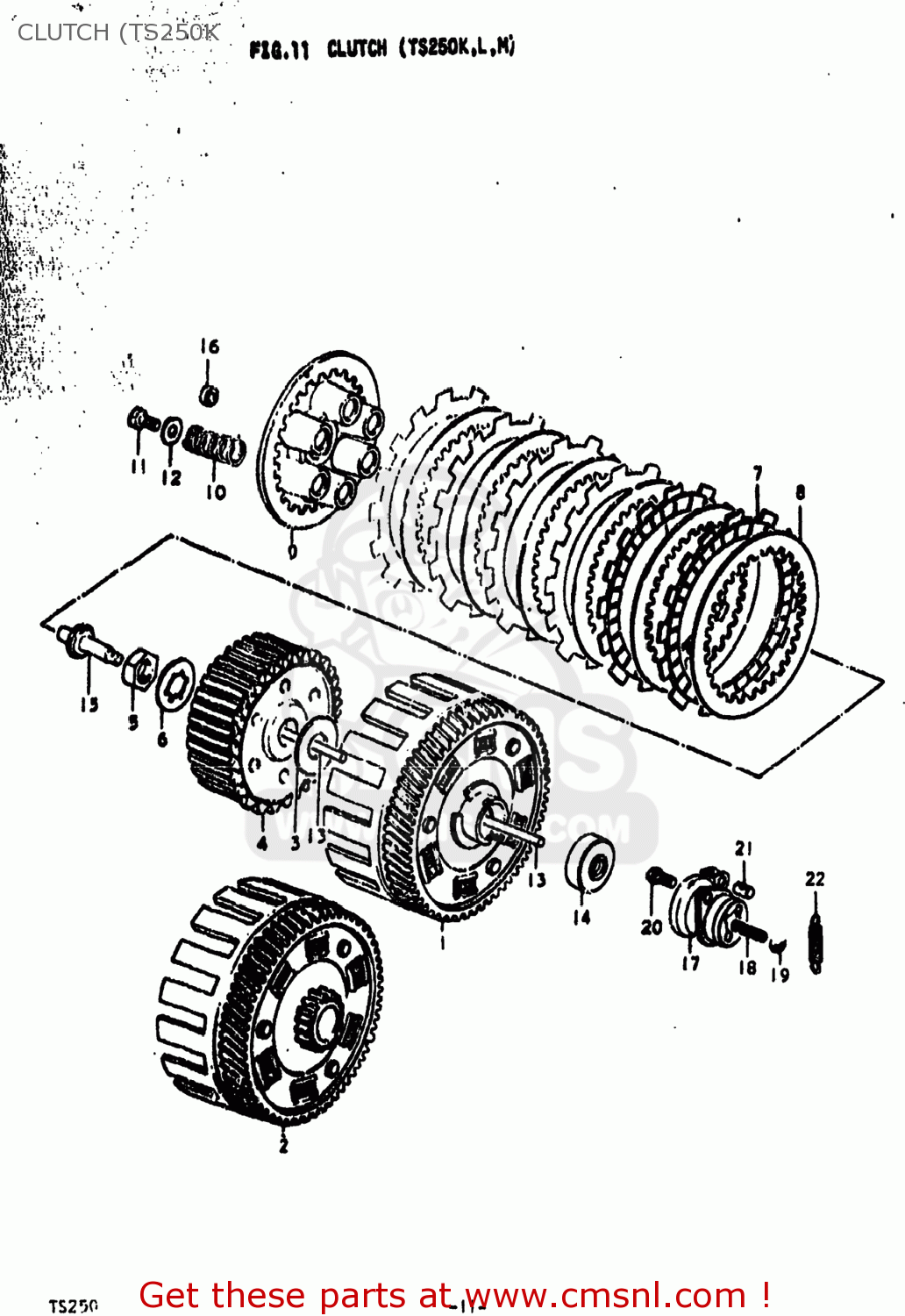

CLUTCH (TS250K

ref

part #

description

quantity

1

2120030600
ref: 1

GEAR ASSEMBLY,PRIMARY DRIVE

€ 279.50

2

2120030002
ref: 2
21200-30003

GEAR ASSEMBLY,PRIMARY DRIVE

€ 279.50

3

0916020015
ref: 3

WASHER(20X44X3)

€ 4.50

4

2141130000
ref: 4
21411-30001

HUB,CLUTCH SLEEVE

€ 55.50

5

0914020002
ref: 5
09140-20001

NUT (20MM)

€ 3.50

6

0916720006
ref: 6
09167-20009

WASHER,LOCK

€ 3.00

7

2144116500
ref: 7
21442-37401

PLATE,CLUTCH DRIVE (MCA)

€ 11.50

8

2145131000
ref: 8

PLATE,CLUTCH DRIVEN(T:2.0) (NAS)

€ 9.00

9

2146215000
ref: 9

DISC,CLUTCH PRESSURE

€ 38.50

10

0944019004
ref: 10

SPRING

€ 3.00

11

0111206168
ref: 11
01500-06167

BOLT

€ 3.00

12

0916006020
ref: 12
09160-06066

WASHER

€ 2.00

13

2311130000
ref: 13
23111-30001

ROD,CLUTCH PUSH

€ 13.50

14

0928506005
ref: 14

SEAL,OIL (6X30X5)

€ 5.00

15

2312115001
ref: 15

ROD,CLUTCH RELEASE

€ 13.50

16

0928410002
ref: 16

SEAL,OIL (10X17X5)

€ 3.50

17

2320030000
ref: 17
23200-30002

SCREW ASSEMBLY,CLUTCH RELEASE

€ 80.50

18

0913406001
ref: 18
09134-06010

SCREW

€ 3.00

19

0831131068
ref: 19
08310-00067

NUT

€ 2.50

20

0211206128
ref: 20
02112-06127

SCREW 6X12

€ 2.00

21

2322207000
ref: 21

PIECE,RELEASE ARM END

€ 5.00

22

0944308001
ref: 22

SPRING

€ 3.00

all assemblies
