ELECTRICAL
TS50XK 1986 (G) (E02 E16 E18 E21 E25)

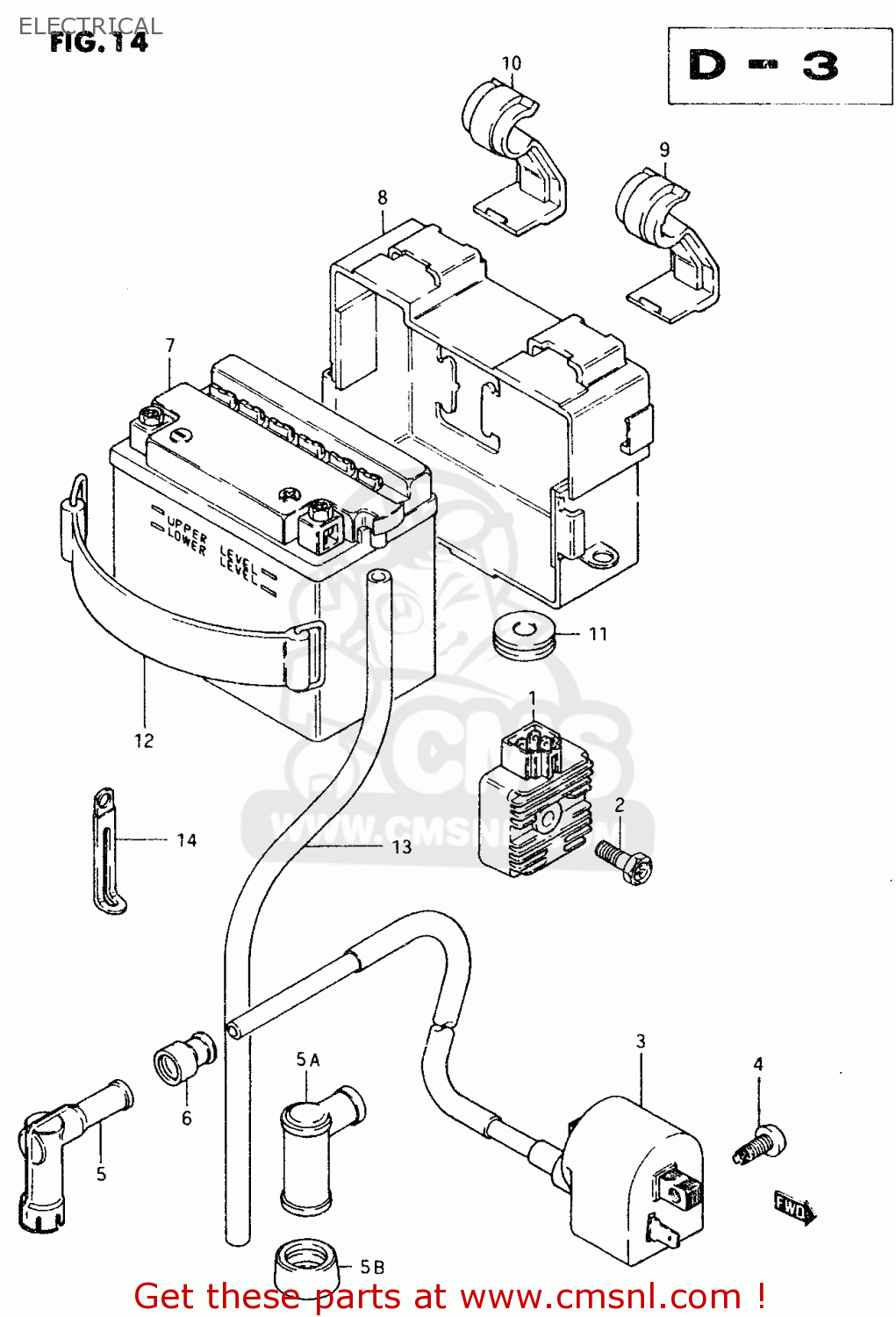

Electrical diagram TS50XK 1986 (G) (E02 E16 E18 E21 E25)
ELECTRICAL TS50XK 1986 (G) (E02 E16 E18 E21 E25)
×
prices are in EUR
ref
part #
description
quantity
1
3280048720
ref: 1
RECTIFIER ASSY,REGULATOR
€ 91.50
2
0912806024
ref: 2
SCREW (6X25)
€ 2.50
3
3341048710
ref: 3
UNIT & COIL ASSY,IGNITION
€ 216.00
4-1
0912906003
ref: 4-1
~F.NO.137257
SCREW(6X21)
€ 2.00
4-2
0211206163
ref: 4-2
F.NO.137258~
SCREW 6X16
€ 2.00
5
3351039110
ref: 5
E2,E16,E17,E18,E21,E
CAP,SPARK PLUG
€ 61.50
5A
3351022010
ref: 5A
E1
CAP ASSY,SPARK PLUG
€ 16.50
5B
3354169010
ref: 5B
E1
SEAL,SPARK PLUG
€ 5.00
6
3354238B00
ref: 6
SEAL,HIGH TENSION CORD
€ 4.50
7
3361002500
ref: 7
BATTERY ASSY(YB4L-B,12V4.2AH)
€ 26.50
8
4154013601
ref: 8
HOLDER,BATTERY
€ 14.50
9
4356113600
ref: 9
HOOK,BATTERY HOLDER FR
€ 6.00
10
4356213600
ref: 10
HOOK,BATTERY HOLDER RR
€ 6.00
11
0932008018
ref: 11
CUSHION
€ 4.00
12
0946200007
ref: 12
BAND
€ 5.00
13-1
3368031003
ref: 13-1
L:600->500 ~F.NO.137
HOSE,BATTERY EXHAUST
€ 4.50
13-2
3368016A10
ref: 13-2
L:780 F.NO.137258~
HOSE,BATTERY EXHAUST(L:780)
€ 4.50
14
0940406404
ref: 14
CLAMP
€ 3.00
