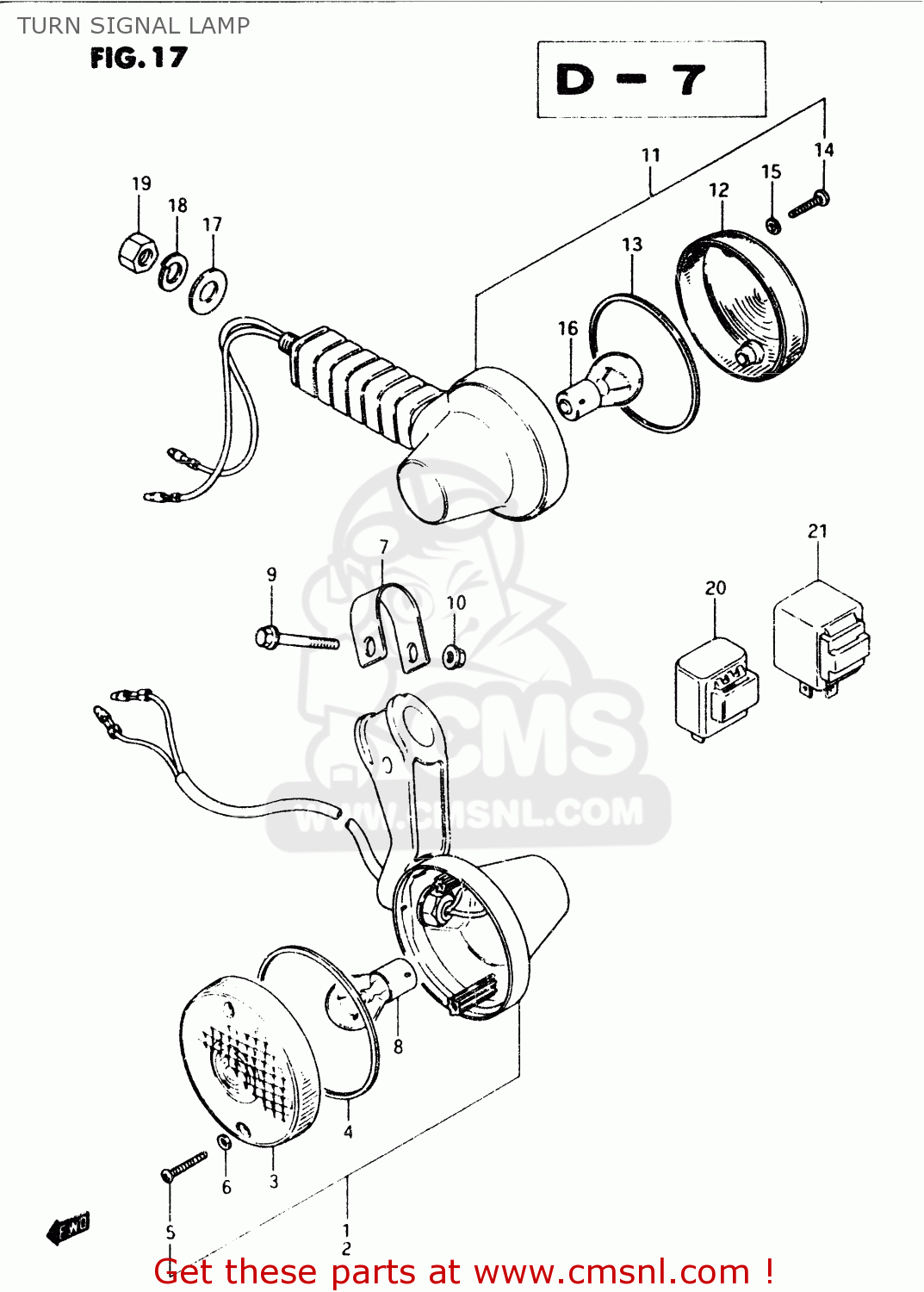

TURN SIGNAL LAMP

ref

part #

description

quantity

1-1

3560105230999
ref: 1-1
E1,MODEL E E2

LAMP ASSEMBLY,FRONT TURN SIGNAL

€ 52.50

1-2

3560113670
ref: 1-2
MODEL G/H/J/M/R E2 M

LAMP, FRONT TURN SIGNAL RH

€ 52.50

1-3

3560105230999
ref: 1-3
E21,E25

LAMP ASSEMBLY,FRONT TURN SIGNAL

€ 52.50

1-4

3560113670999
ref: 1-4
E16,E18

LAMP ASSEMBLY,FRONT TURN SIGNAL

€ 52.50

2

3560213670999
ref: 2
<-35602-05230-999 <-

LAMP ASSY,FR TURN SIGNAL,L

€ 52.50

3-1

3561248530
ref: 3-1
E1,MODEL E E2

LENS

€ 7.50

3-2

3561201A70
ref: 3-2
MODEL G/H/J/M/R E2

LENS,FR TURNSIGNAL LAMP

€ 7.50

3-3

3561248530
ref: 3-3
E16,E18,E21,E25

LENS

€ 7.50

4

3561328620
ref: 4

GASKET (NAS)

€ 7.00

5

0321104256
ref: 5

SCREW ,4X25

€ 2.00

6

3562743010
ref: 6

GASKET (NAS)

€ 2.00

7

3561605210
ref: 7

PLATE

€ 5.50

8

0947112045
ref: 8
PURCHASE LOCALLY

BULB(12V21W)

€ 5.00

9

0910305003
ref: 9

BOLT 5X42

€ 2.50

10-1

0831616055
ref: 10-1
MODEL E/G/H/J/M

NUT ,5MM

€ 2.00

10-2

0831610053
ref: 10-2
MODEL R

NUT

€ 2.50

11-1

3560348781999
ref: 11-1
MODEL E E2

LAMP ASSY, REAR TURNSIGNAL

€ 53.50

11-2

3560313670
ref: 11-2
MODEL G/H/J/M/R E2 M

LAMP,RR TURN

€ 56.50

11-3

3560348781999
ref: 11-3
E16,E18

LAMP ASSY, REAR TURNSIGNAL

€ 53.50

11-4

3560348720
ref: 11-4
E1,E21,E25

LAMP ASSY, REAR TURN SIGNAL

€ 54.00

12-1

3561248510
ref: 12-1
E1,MODEL E E2

LENS

€ 10.50

12-2

3565201A70
ref: 12-2
MODEL G/H/J/M/R E2 M

LENS,RR TURNSIGNAL LAMP

€ 10.50

12-3

3561248510
ref: 12-3
E16,E18,E21,E25

LENS

€ 10.50

13

3561328620
ref: 13

GASKET (NAS)

€ 7.00

14-1

0321104258
ref: 14-1
MODEL E/G/H/J/M

SCREW TAPP.

€ 2.00

14-2

0321104253
ref: 14-2
MODEL R

SCREW

€ 2.00

15

3562743010
ref: 15

GASKET (NAS)

€ 2.00

16-1

0947112045
ref: 16-1
MODEL E/G

BULB(12V21W)

€ 5.00

16-2

0947112045
ref: 16-2
MODEL H/J/M/R E2

BULB(12V21W)

€ 5.00

16-3

0947112056
ref: 16-3
E1,MODEL H/J/M/R E16

BULB 12V 21W

€ 5.00

17

0916012048
ref: 17

WASHER (12.5X26X1.6)

€ 2.00

18

0832121125
ref: 18

WASHER

€ 2.50

19-1

0831012128
ref: 19-1
MODEL E/G/H/J/M

NUT

€ 3.00

19-2

0831000123
ref: 19-2
MODEL R

NUT

€ 2.50

20-1

3861031310
ref: 20-1

RELAY ASSEMBLY,TURN SIGNAL

€ 54.50

20-2

3861031310
ref: 20-2
MODEL J/M E2

RELAY ASSEMBLY,TURN SIGNAL

€ 54.50

21

3861045091
ref: 21
MODEL G/H E2

RELAY ASSY,TUR

€ 67.50

all assemblies
