SEAT (MODEL E)

TS50XK 1986 (G) (E02 E16 E18 E21 E25)

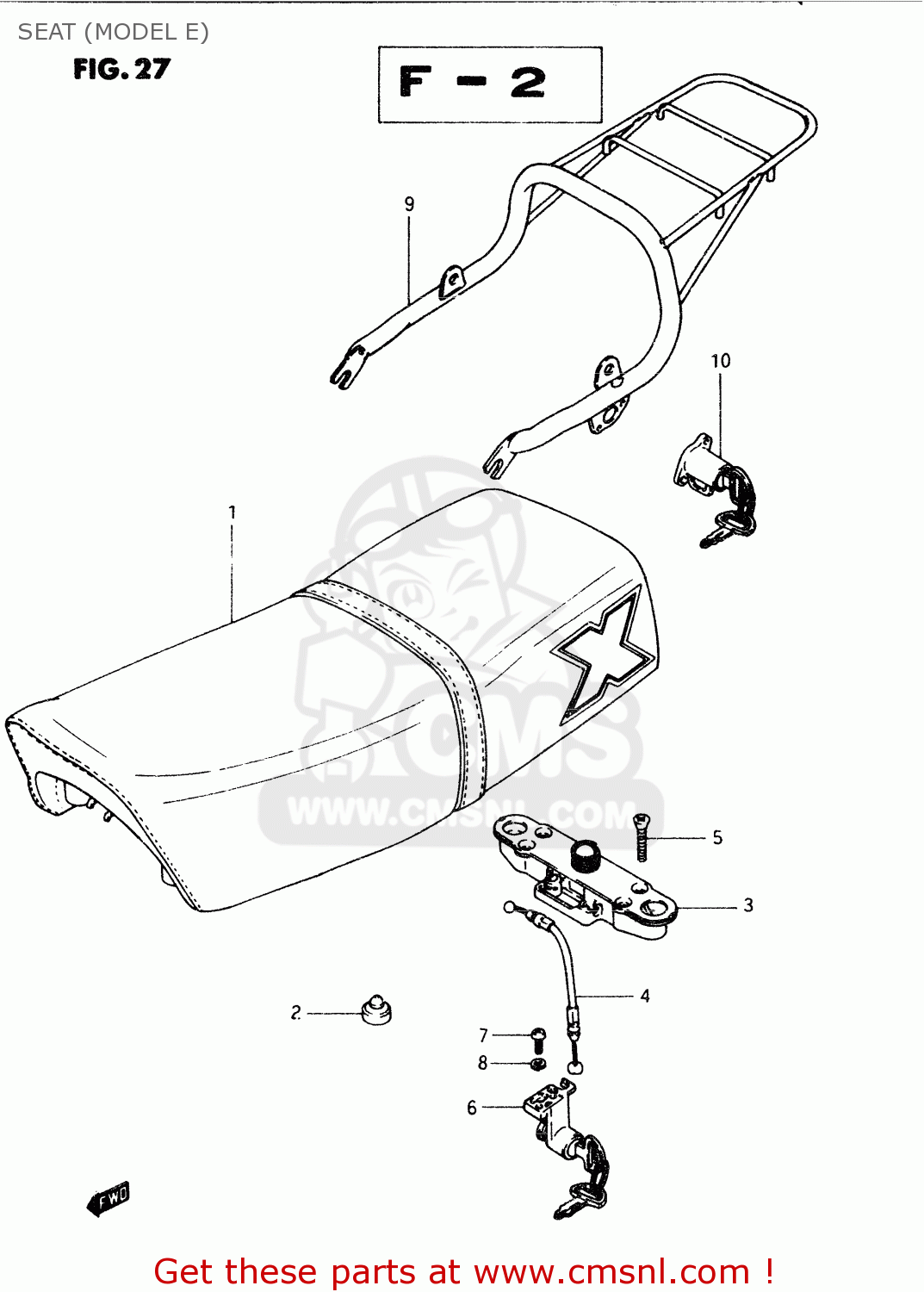

Seat (model e) diagram TS50XK 1986 (G) (E02 E16 E18 E21 E25)

SEAT (MODEL E) TS50XK 1986 (G) (E02 E16 E18 E21 E25)

SEAT (MODEL E) TS50XK 1986 (G) (E02 E16 E18 E21 E25)

prices are in EUR

ref

part #

description

quantity

1-1

451001370154G
ref: 1-1
<-45100-13700-54G

SEAT ASSY (BLUE)

€ 189.00

1-2

451001372054G
ref: 1-2
E16,E18

SEAT ASSY (BLUE)

€ 0.00

2-1

0932110011
ref: 2-1

CUSHION

€ 3.00

2-2

0932110011
ref: 2-2
E16,E18

CUSHION

€ 3.00

3

4522013600
ref: 3
->45220-13601 USED W

LOCK ASSEMBLY,SEAT STRIKER

€ 47.00

4

4528013600
ref: 4

CABLE,SEAT LOCK

€ 8.00

5

0212206305
ref: 5

SCREW

€ 2.00

6

9570013831
ref: 6
<-95700-13600-KEY

LOCK SET,SEAT

€ 79.50

7

0211205128
ref: 7

SCREW

€ 2.50

8

0832121057
ref: 8

LOCK WASHER

€ 2.00

9-1

4631013711
ref: 9-1

CARRIER

€ 55.50

9-2

4631013610
ref: 9-2
E16,E18

CARRIER

€ 0.00

9-3

4631013731
ref: 9-3
E21

CARRIER

€ 37.00

10

9570038840
ref: 10
<-95700-38303-KEY

LOCK SET,HELMET

€ 44.50
