FUEL COCK
TS50XK 1986 (G) (E02 E16 E18 E21 E25)

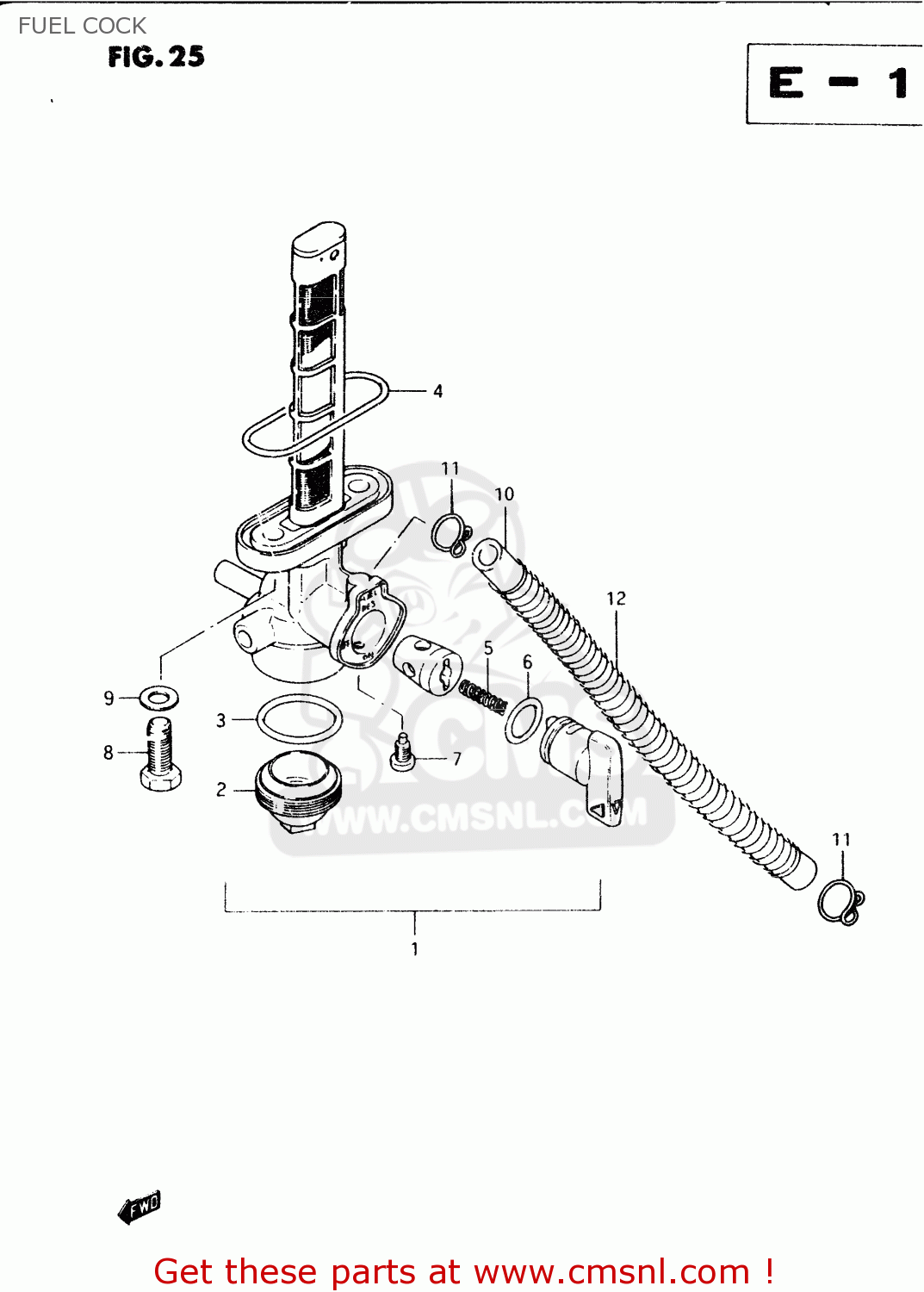

Fuel cock diagram TS50XK 1986 (G) (E02 E16 E18 E21 E25)
FUEL COCK TS50XK 1986 (G) (E02 E16 E18 E21 E25)
×
prices are in EUR
ref
part #
description
quantity
1
4430013610
ref: 1
COCK ASSY, FUEL
€ 51.00
2
4434728071
ref: 2
CUP,STRAINER
€ 7.50
3
4434628070
ref: 3
GASKET,FILTER (NAS)
€ 2.50
4
4434828070
ref: 4
O RING,FUEL COCK
€ 4.50
5
4435732470
ref: 5
SPRING
€ 2.00
6
4435332470
ref: 6
O-RING
€ 7.50
7
4434341370
ref: 7
SCREW
€ 2.00
8
0912806006
ref: 8
BOLT(6X20)
€ 2.00
9
0916806026
ref: 9
GASKET(6.4X11.5X0.8) (NAS)
€ 3.50
10-1
0935250823300
ref: 10-1
MODEL E/G/H/J
HOSE
€ 13.00
10-2
0935250823300
ref: 10-2
MODEL M/R
HOSE
€ 13.00
11
0940108401
ref: 11
CLIP
€ 1.50
12
0944010025
ref: 12
SPRING
€ 5.00
