TRANSMISSION
TS50XK 1986 (G) (E02 E16 E18 E21 E25)

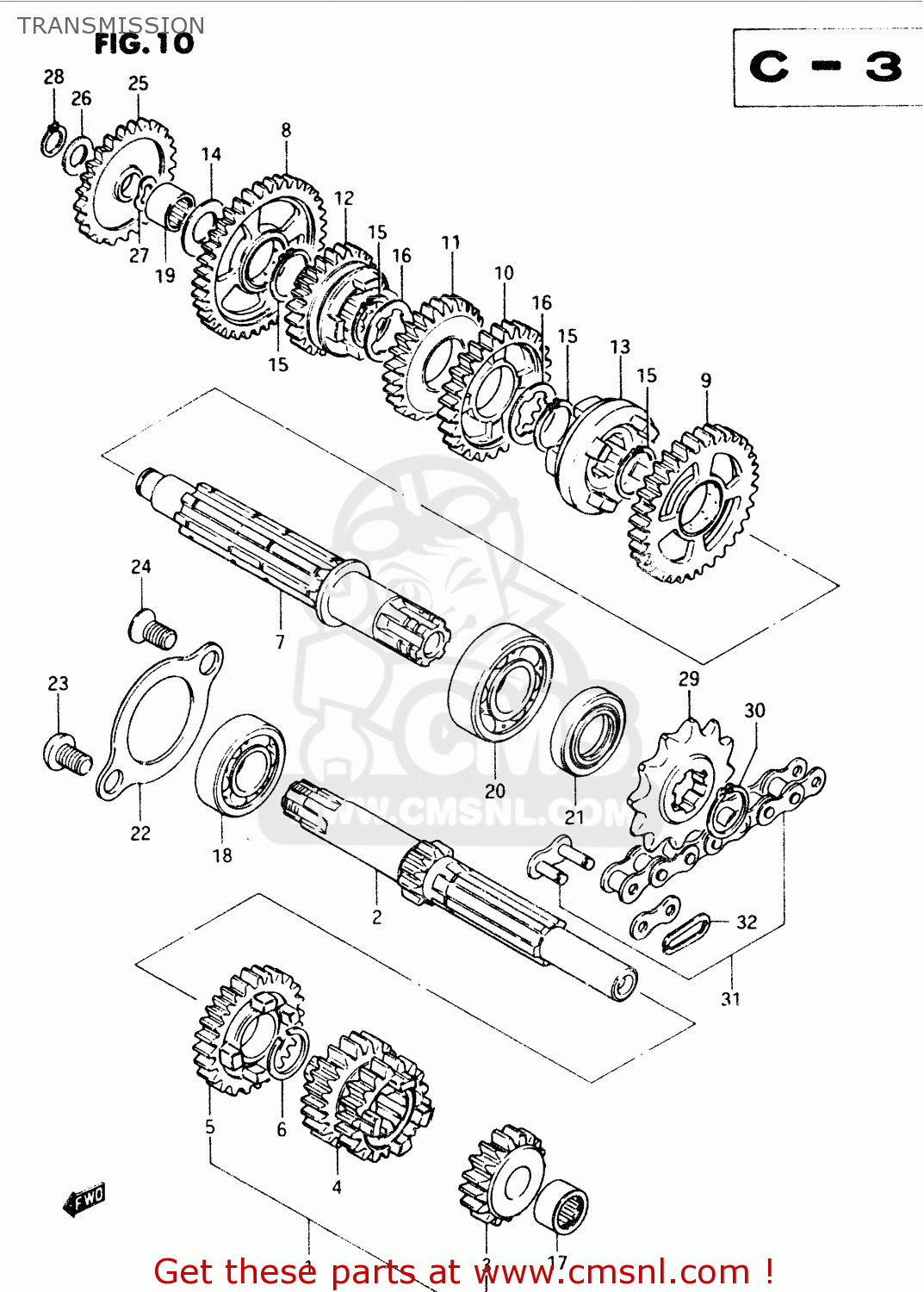

Transmission diagram TS50XK 1986 (G) (E02 E16 E18 E21 E25)
TRANSMISSION TS50XK 1986 (G) (E02 E16 E18 E21 E25)
×
prices are in EUR
ref
part #
description
quantity
1-1
2412013600
ref: 1-1
COUNTER SHAFT ASSY
€ 132.00
1-2
2412013610
ref: 1-2
E17
COUNTER SHAFT ASSY
€ 0.00
2
2412104700
ref: 2
SHAFT,COUNTER
€ 81.00
3
2422104701
ref: 3
<-24221-04700
GEAR,2ND DRIVE(NT:17)
€ 34.50
4
2423113601
ref: 4
GEAR 3/4TH DRI
€ 51.50
5
2425113600
ref: 5
EXCEPT E17
GEAR,5TH DRIVE
€ 37.50
6
0938017007
ref: 6
EXCEPT E17
CIRCLIP
€ 2.00
7
2413104703
ref: 7
SHAFT,DRIVE
€ 87.50
8
2431004700
ref: 8
GEAR, 1ST DRIVEN
€ 64.50
9
2432013600
ref: 9
GEAR, 2ND DRIVEN (NT:33)
€ 48.50
10
2433113600
ref: 10
GEAR,3RD DRIVE
€ 44.50
11
2434113600
ref: 11
GEAR,4TH DRIVEN
€ 36.00
12
2435113600
ref: 12
GEAR,5TH.DRIVE
€ 51.00
13
2442113600
ref: 13
WHEEL, SLIDING DOG
€ 29.50
14
0821115282
ref: 14
RING
€ 2.00
15
0938020009
ref: 15
CIRCLIP
€ 2.00
16
0916720011
ref: 16
WASHER,LOCK
€ 2.50
17
0926313001
ref: 17
ROLLER BEARING (13X19X1
€ 8.50
18
0926217023
ref: 18
BEARING(17X40X12)
€ 14.00
19
0926315019
ref: 19
BEARING(15X21X12)
€ 9.50
20
0926220069
ref: 20
BEARING(20X47X14)
€ 28.00
21
0928320038
ref: 21
OIL SEAL (20X35X5)
€ 5.50
22
2474146000
ref: 22
RETAINER,CNTR SHAFT BEARING
€ 3.50
23-1
0211206107
ref: 23-1
MODEL E/G/H/J/M
SCREW
€ 1.50
23-2
0211206103
ref: 23-2
MODEL R
SCREW
€ 1.50
24-1
0212206108
ref: 24-1
MODEL E/G/H/J/M
SCREW
€ 1.50
24-2
0212206103
ref: 24-2
MODEL R
SCREW
€ 1.50
25
2626120401
ref: 25
NT:26
GEAR,KICK STARTER IDLER(NT:26)
€ 51.50
26
0821112181
ref: 26
THRUST WASHER
€ 2.50
27
0916412019
ref: 27
WASHER
€ 2.00
28
0833131126
ref: 28
CIRCLIP,12 MM
€ 2.00
29-1
2751104700
ref: 29-1
E1,E2,E16,E18,E21
SPROCKET,ENGIN
€ 26.50
29-2
2751113610
ref: 29-2
E17,E22
SPROCKET, ENGINE (NT:12)
€ 26.50
29-3
2751134B02
ref: 29-3
E25
SPROCKET,ENGINE(11T)
€ 14.00
30
0938020009
ref: 30
CIRCLIP
€ 2.00
31-1
2760013670
ref: 31-1
E2
CHAIN ASSEMBLY,DRIVE
€ 31.00
31-2
2760013670
ref: 31-2
E16,E17,E18,E22,E25
CHAIN ASSEMBLY,DRIVE
€ 31.00
31-3
2760013670
ref: 31-3
E1,E21
CHAIN ASSEMBLY,DRIVE
€ 31.00
32-1
2762001012
ref: 32-1
JOINT
€ 5.00
32-2
2762001023
ref: 32-2
JOINT,CHAIN(RK)
€ 5.50
