FRONT WHEEL
TS50XK 1986 (G) (E02 E16 E18 E21 E25)

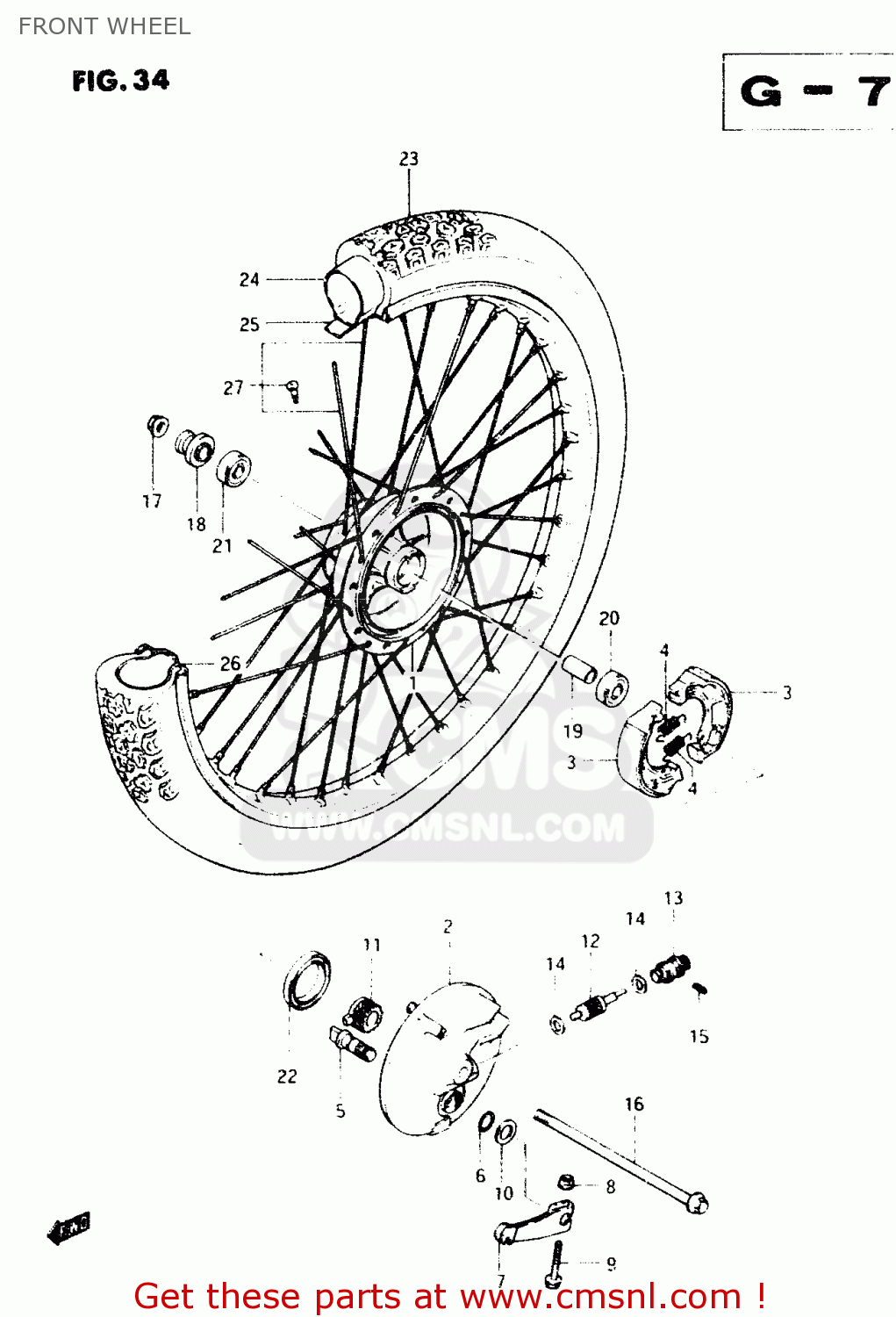

Front wheel diagram TS50XK 1986 (G) (E02 E16 E18 E21 E25)
FRONT WHEEL TS50XK 1986 (G) (E02 E16 E18 E21 E25)
×
prices are in EUR
ref
part #
description
quantity
1
5411013602
ref: 1
HUB,FR WHEEL
€ 792.50
2-1
5421013600
ref: 2-1
MODEL E/G/H/J/M
PANEL, FRONT BRAKE ANKER
€ 85.50
2-2
5421013601
ref: 2-2
MODEL R
PANEL,FR BRAKE ANCHOR
€ 85.50
3-1
6441040200
ref: 3-1
->64410-13600
SHOE,BRAKE
€ 32.00
3-2
6441013600
ref: 3-2
SHOE SET,BRAKE (MCA)
€ 32.00
3-3
6441013600
ref: 3-3
MODEL M/R E17,E22
SHOE SET,BRAKE (MCA)
€ 32.00
4
0944307001
ref: 4
SPRING(L:34)
€ 2.50
5
5444126512
ref: 5
CAM,FRONT BRAKE
€ 11.50
6
0928014003
ref: 6
O-RING (D:2.4 ID:13.8)
€ 3.50
7-1
5445113600
ref: 7-1
MODEL E/G/H/J
LEVER,FRONT BRAKE CAM
€ 10.50
7-2
5445113701
ref: 7-2
MODEL M/R
LEVER,FR BRAKE CAM
€ 13.00
8-1
0915906017
ref: 8-1
MODEL E/G/H/J/M
NUT
€ 2.50
8-2
0831610063
ref: 8-2
MODEL R
NUT
€ 2.50
9-1
0151706358
ref: 9-1
MODEL E/G/H/J/M
BOLT 6X35
€ 2.50
9-2
0155006353
ref: 9-2
MODEL R
BOLT
€ 2.50
10-1
0916014001
ref: 10-1
MODEL E/G/H/J
WASHER (14.5X22X1.6)
€ 2.50
10-2
0916014003
ref: 10-2
MODEL M/R
WASHER (14.2X22X1)
€ 1.00
11
5461113600
ref: 11
GEAR,SPEEDOMETER(NT:26)
€ 7.50
12
5462126401
ref: 12
PINION,SPEEDOMETER(NT:9)
€ 12.50
13-1
5463201001
ref: 13-1
MODEL E/G/H/J/M FOR
BUSH,METER GEAR OUTER
€ 9.00
13-2
5463202201
ref: 13-2
MODEL R FOR 54210-13
BUSH,SPEEDOMETER PINION OUTER
€ 6.50
14
0916005001
ref: 14
WASHER (5.1X9X0.4)
€ 2.00
15
0913403101
ref: 15
MODEL E/G/H/J/M FOR
SCREW
€ 1.50
16
5471113601
ref: 16
<-54711-13600
AXLE,FR
€ 25.50
17
0831931107
ref: 17
NUT
€ 3.00
18
5474020400
ref: 18
SPACER,FRONT AXLE,RIGHT
€ 14.00
19
0918010012
ref: 19
SPACER(10.2X16X47)
€ 6.50
20
0814362007
ref: 20
BEARING
€ 11.50
21
0926210011
ref: 21
BEARING
€ 12.00
22
0928543001
ref: 22
OIL SEAL (43X58X7)
€ 10.00
23
5510026400
ref: 23
TIRE, FRONT (2.50-21) IRC
€ 89.50
24
5520026410
ref: 24
TUBE ASSY,FR WHEEL INNER
€ 24.50
25
5526116510
ref: 25
PROTECTOR,WHEEL,INNER
€ 5.00
26-1
5531113600
ref: 26-1
MODEL E MODEL R E1,E
RIM,FR WHEEL(1.40X21)
€ 74.50
26-2
5531113610
ref: 26-2
MODEL G/H/J/M MODEL
RIM, FRONT WHEEL (1.40X21) GOLD
€ 109.50
27-1
5532013600
ref: 27-1
MODEL E/G/H
SPORK ASSY, FRONT WHEEL
€ 56.50
27-2
5532013610
ref: 27-2
MODEL J/M/R
SPOKE ASSY,FR WHEEL
€ 56.50
