FRONT DAMPER
TS50XK 1986 (G) (E02 E16 E18 E21 E25)

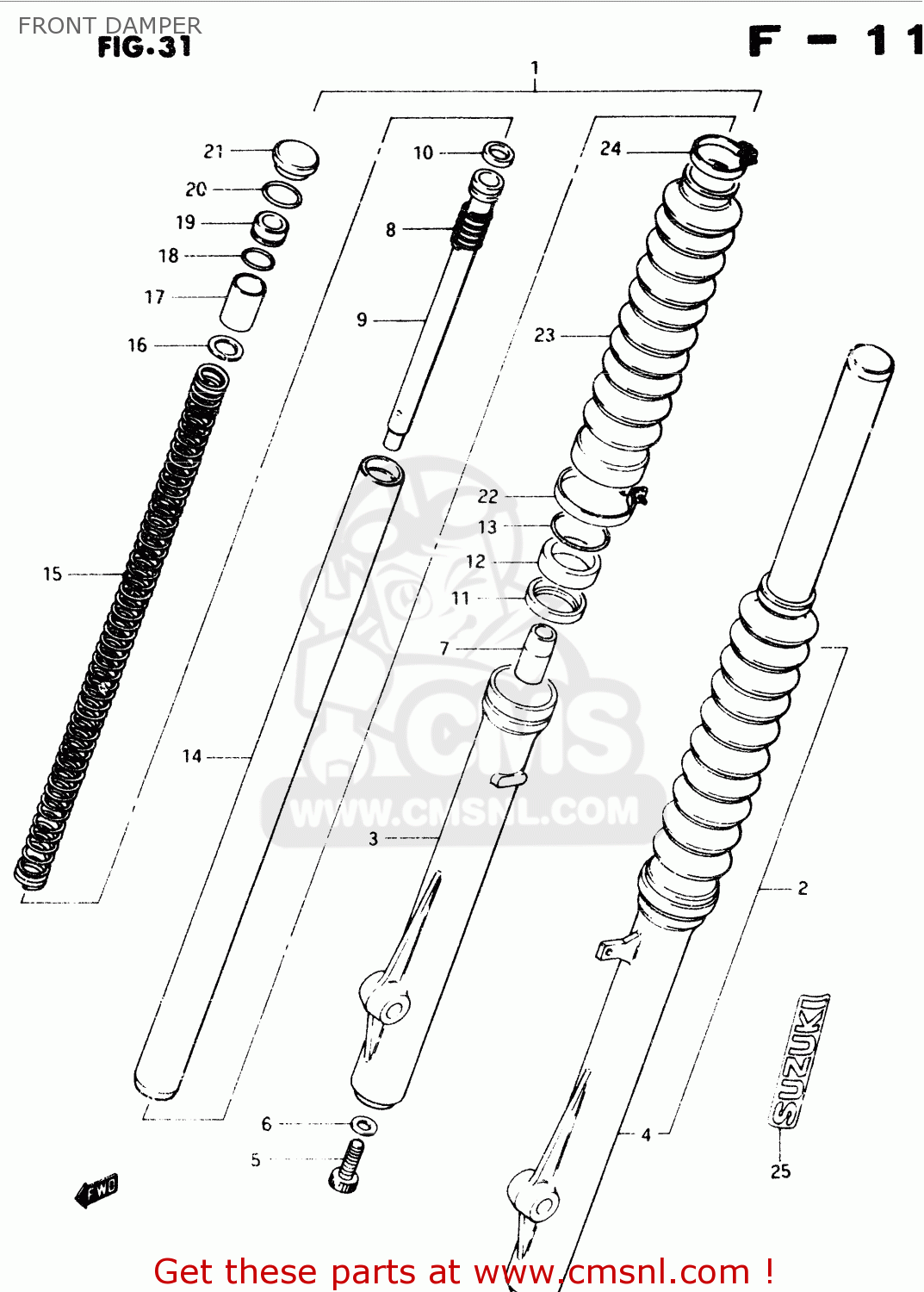

Front damper diagram TS50XK 1986 (G) (E02 E16 E18 E21 E25)
FRONT DAMPER TS50XK 1986 (G) (E02 E16 E18 E21 E25)
×
prices are in EUR
ref
part #
description
quantity
1
5110313620
ref: 1
DAMPER ASSY,FR FORK,R
€ 304.50
2
5110413620
ref: 2
DAMPER ASSY,FR FORK,L
€ 307.00
3
5113013620
ref: 3
OUTER TUBE, RH
€ 121.00
4
5114013620
ref: 4
TUBE,OUTER,L
€ 138.50
5
5114748130
ref: 5
BOLT(8X27)
€ 3.50
6
5114836011
ref: 6
GASKET (NAS)
€ 4.00
7
5119513620
ref: 7
PIECE, OIL LOCK
€ 9.50
8
5117748700
ref: 8
SPRING,REBOUND
€ 4.50
9
5114613640
ref: 9
<-51146-13620
CYLINDER
€ 18.00
10
5119633130
ref: 10
RING,PISTON
€ 7.50
11
5116805210
ref: 11
SPACER
€ 3.00
12
5115305210
ref: 12
SEAL,OIL
€ 8.00
13
5115648730
ref: 13
SEAL,OIL STOPPER RING
€ 2.50
14
5111013620
ref: 14
TUBE,FORK INNER
€ 149.50
15
5117113620
ref: 15
SPRING
€ 17.50
16
5117236331
ref: 16
SEAT,SPRING
€ 2.50
17
5117613620
ref: 17
SPACER
€ 3.50
18
5118133131
ref: 18
O RING
€ 5.00
19
5117548500
ref: 19
SEAT,SPRING
€ 9.00
20
5116948500
ref: 20
RING,STOPPER
€ 2.00
21
5118913620
ref: 21
CAP,FR FORK
€ 6.00
22
5157613620
ref: 22
BAND,FR FORK BOOT
€ 5.00
23-1
5157113620019
ref: 23-1
MODEL E/G ->51571-05
BOOT(BLACK)
€ 50.50
23-2
515711362019F
ref: 23-2
MODEL H/J
BOOT,FR FORK COVER
€ 53.50
23-3
5157105210
ref: 23-3
MODEL M/R
BOOT
€ 50.50
24
5157503D00
ref: 24
<-51575-13620
BAND,BOOT
€ 5.00
25
682511370017U
ref: 25
MODEL M
EMBLEM (GRAY)
€ 10.50
