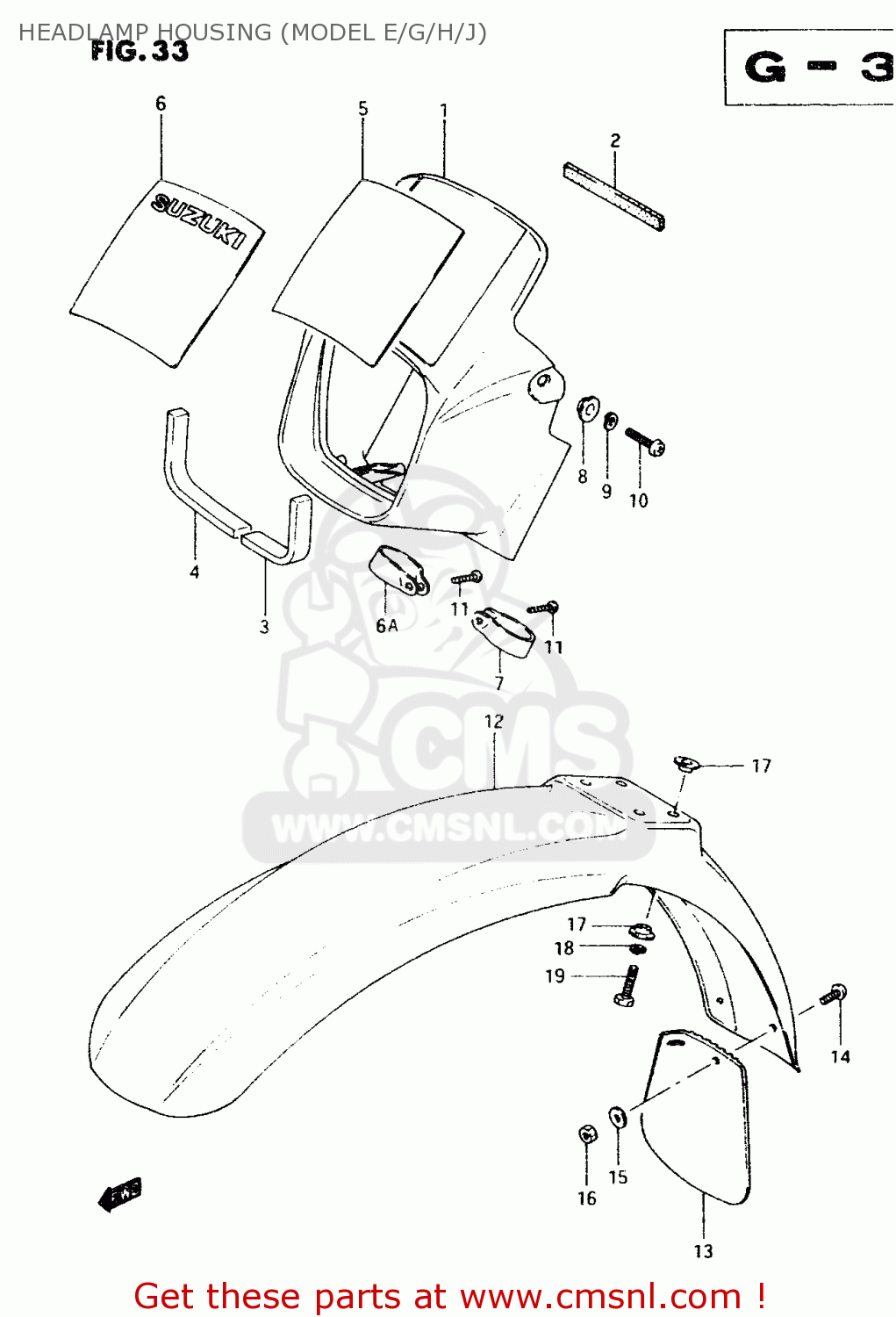

HEADLAMP HOUSING (MODEL E/G/H/J)

ref

part #

description

quantity

1-1

518101370021C
ref: 1-1

HOUSING,HEADLAMP

€ 43.50

1-2

518101370008Y
ref: 1-2
MODEL E/G

HOUSING HEAD L

€ 43.50

1-3

518101370014C
ref: 1-3
MODEL E/G

HOUSING HEAD L

€ 43.50

1-4

5181013700163
ref: 1-4
MODEL E/G

HOUSING HEAD L

€ 41.00

1-5

518101370014L
ref: 1-5
MODEL H/J

HOUSING,HEADLAMP

€ 41.00

1-6

518101370025Y
ref: 1-6
MODEL H/J

HOUSING,HEADLAMP

€ 41.00

2

5182713700
ref: 2

CUSHION,HEADLAMP HOUSING

€ 6.00

3

5182813700
ref: 3

CUSHION,HEADL.

€ 6.00

4

5182913700
ref: 4

CUSHION,HEAD L

€ 6.00

5-1

6816913621291
ref: 5-1
MODEL E/G/H FOR 14C,

EMBLEM

€ 6.00

5-2

681691362117W
ref: 5-2
MODEL G,FOR 08Y,21C

EMBLEM

€ 5.00

5-3

681691362110W
ref: 5-3
MODEL H,FOR 21C

EMBLEM

€ 5.50

6-1

68169136309EP
ref: 6-1
MODEL J FOR 14L,25Y

EMBLEM

€ 9.00

6-2

68169136307TC
ref: 6-2
MODEL J FOR 21C

EMBLEM,HEADLAMP HOUSING

€ 9.00

6A

5197113700
ref: 6A

CLAMP,HEADLAMP HOUSING,R

€ 9.50

7

5197213700
ref: 7

CLAMP, HEADLAMP HOUSING, LH

€ 9.50

8

0916906011
ref: 8

WASHER

€ 6.50

9

0832121067
ref: 9

WASHER,LOCK

€ 2.50

10

0211206167
ref: 10

SCREW

€ 2.50

11

0321205169
ref: 11

SCREW

€ 7.50

12-1

531111370021C
ref: 12-1

FENDER, FRONT (BLACK)

€ 76.00

12-2

531111370008Y
ref: 12-2
MODEL E/G

FENDER, FRONT (BLUE)

€ 112.50

12-3

531111370014C
ref: 12-3
MODEL E/G

FENDER, FRONT (RED)

€ 112.50

12-4

5311113700163
ref: 12-4
MODEL E/G

FENDER, FRONT (YELLOW)

€ 112.50

12-5

531111370014L
ref: 12-5
MODEL H/J

FENDER, FRONT (WHITE)

€ 69.50

12-6

531111370025Y
ref: 12-6
MODEL H/J

FENDER, FRONT (YELLOW)

€ 52.00

12-7

531111361021C
ref: 12-7
E18

FENDER, FRONT (BLACK)

€ 56.50

12-8

531111361014C
ref: 12-8
MODEL E/G E18

FENDER, FRONT (RED)

€ 0.00

12-9

531111361014L
ref: 12-9
MODEL H/J E18

FENDER, FRONT (WHITE)

€ 69.50

12-10

531111361025Y
ref: 12-10
MODEL H/J E18

FENDER, FRONT (YELLOW)

€ 52.00

12-11

5311134B0021C
ref: 12-11
E25

FENDER,FR

€ 67.00

12-12

5311134B0008Y
ref: 12-12
MODEL E/G E25

FENDER, FRONT (BLUE)

€ 81.00

12-13

5311134B0014C
ref: 12-13
MODEL E/G E25

FENDER,FR

€ 81.00

12-14

5311134B00163
ref: 12-14
MODEL E/G E25

FENDER, FRONT (YELLOW)

€ 81.00

12-15

5311134B0014L
ref: 12-15
MODEL H/J E25

FENDER,FR

€ 81.00

12-16

5311134B0025Y
ref: 12-16
MODEL H/J E25

FENDER,FR

€ 81.00

13

5331140001
ref: 13
E18

MUD FLAP,FRONT FENDER

€ 8.00

14

0214205128
ref: 14
E18

SCREW

€ 1.50

15

0832221056
ref: 15
E18

WASHER

€ 2.50

16

0831000053
ref: 16
E18

NUT

€ 2.50

17

0916906053
ref: 17

WASHER

€ 2.00

18

0832121067
ref: 18

WASHER,LOCK

€ 2.50

19

0150006167
ref: 19

BOLT

€ 3.00

all assemblies
