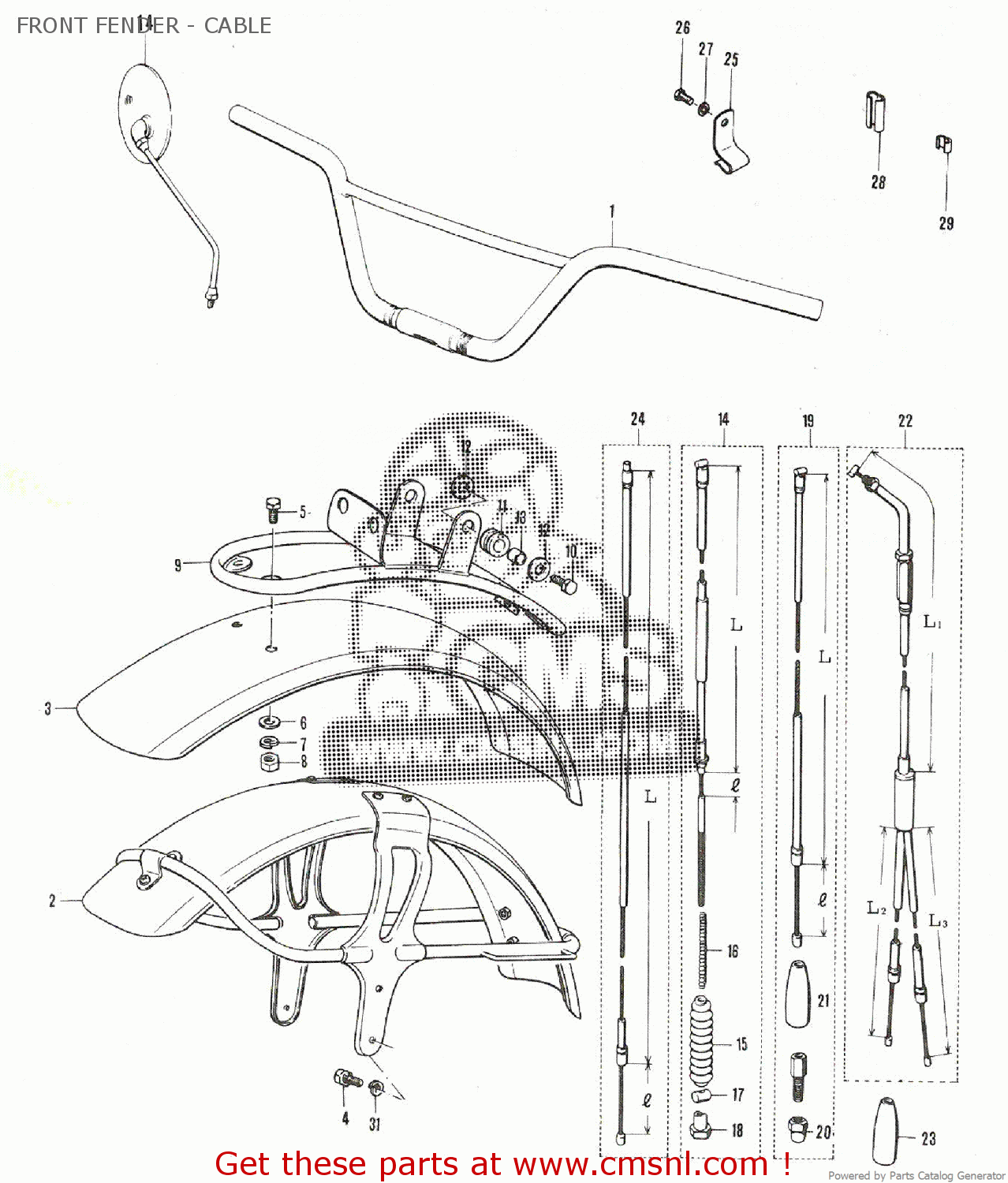

FRONT FENDER - CABLE

ref

part #

description

quantity

1

5611025001
ref: 1

HANDLEBAR

€ 36.00

2

5310025611
ref: 2
CHROME-PLATED

FENDER,FRONT

€ 103.00

4

0112108128
ref: 4

SMALL HEAD HEXAGON BOLT

€ 2.50

14

5810007731
ref: 14
L.= 1110(43.70),?.=40(1.57)

CABLE ASSEMBLY,FRONT BRAKE

€ 18.50

15

0928707001
ref: 15

SEAL,DUST(7X16X75)

€ 2.00

16

0944006003
ref: 16

SPRING

€ 2.00

17

0920910001
ref: 17

PIN,10X19

€ 2.00

18

0915005101
ref: 18

NUT

€ 3.00

19

5820025000
ref: 19
L.=940(37.01),?.= 111(4.37)

CABLE ASSY,CLUTCH

€ 31.00

20

0915908007
ref: 20

NUT

€ 2.00

21

0928710002
ref: 21

DUST SEAL

€ 2.50

22

5830025000
ref: 22
L1=660(25.98) ,L2=517(20.35) L3=342(13.47)

CABLE ASSEMBLY,THROTTLE

€ 68.00

23

0928710003
ref: 23

DUST SEAL

€ 2.50

24

5841012300
ref: 24
L.=950(37.40),?.=63(2.48)

CABLE,STARTER

€ 6.50

25

0940300019
ref: 25

CLAMP

€ 5.50

26

0111106108
ref: 26

HEXAGON BOLT

€ 2.00

27

0832121068
ref: 27

LOCK WASHER

€ 2.50

28

0940800001
ref: 28
L.=25(0.98)

CLIP

€ 2.50

29

0940800002
ref: 29
L.=10(0.40)

CLIP

€ 2.00

31

0832121088
ref: 31

LOCK WASHER

€ 2.00
