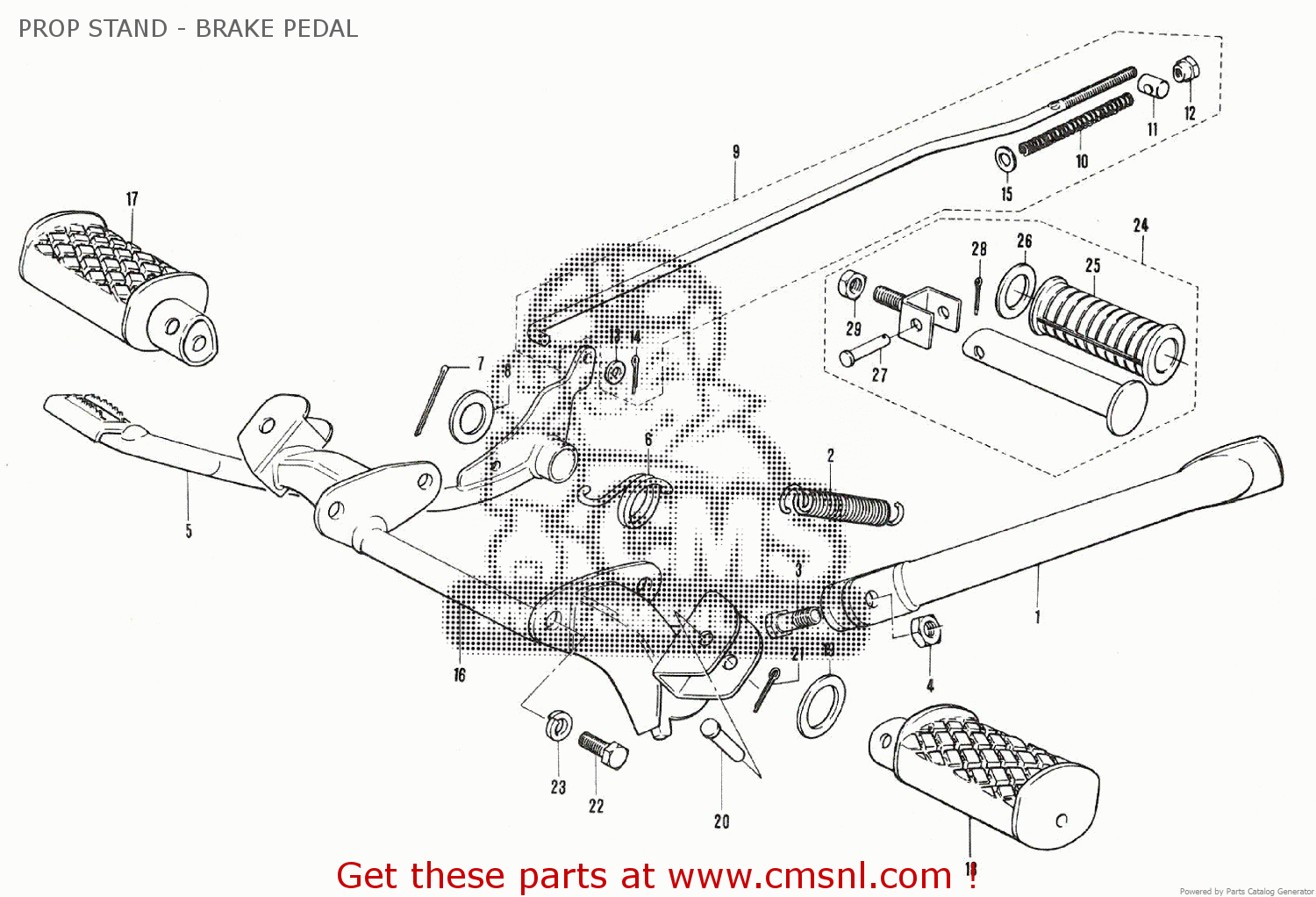

PROP STAND - BRAKE PEDAL

ref

part #

description

quantity

1

4231025000
ref: 1

STAND,SIDE

€ 17.00

2

0944314005
ref: 2

SPRING

€ 6.50

3

0910010007
ref: 3

BOLT

€ 4.50

4

0831231108
ref: 4

NUT

€ 2.50

5

4311025000
ref: 5

PEDAL,BRAKE

€ 8.50

6

0944831007
ref: 6

SPRING

€ 1.50

7

0411130258
ref: 7

PIN

€ 1.50

8

0916015002
ref: 8
15.5X26X2.3(0.61X1.02X0.09)

WASHER(15.5X26X2.3)

€ 2.00

9

4330025000
ref: 9

ROD ASSY,RR BRAKE

€ 15.50

10

0944009004
ref: 10

SPRING

€ 2.00

11

0920911002
ref: 11

PIN(11X18)

€ 2.00

12

0915006001
ref: 12

NUT

€ 3.50

13

0832221058
ref: 13

WASHER

€ 2.50

14

0411120188
ref: 14

PIN

€ 1.50

15

0832221068
ref: 15

WASHER

€ 2.00

16

4351025000
ref: 16

BAR,FRONT FOOTREST

€ 92.50

17

4355025000
ref: 17

RUBBER,FOOTREST,RIGHT

€ 34.50

18

4356025000
ref: 18

RUBBER,FOOTREST,LEFT

€ 34.50

19

0916022002
ref: 19
22.5X36X2.3(0.89X1.42X0.09)

WASHER

€ 3.50

20

0920008002
ref: 20

PIN

€ 2.00

21

0411120188
ref: 21

PIN

€ 1.50

22

0112108168
ref: 22

BOLT

€ 2.00

23

0832121088
ref: 23

LOCK WASHER

€ 2.00

24

4360003001
ref: 24

FOOTREST ASSEMBLY,REAR

€ 21.00

25

4361203001
ref: 25

RUBBER,PILLION FOOTREST

€ 3.50

26

0916019006
ref: 26
19.5X32X2(0.77X1.26X0.08)

WASHER (19.5X32X2)

€ 2.00

27

920006010
ref: 27

PIN

€ 1.50

28

0411120188
ref: 28

PIN

€ 1.50

29

0831231108
ref: 29

NUT

€ 2.50
