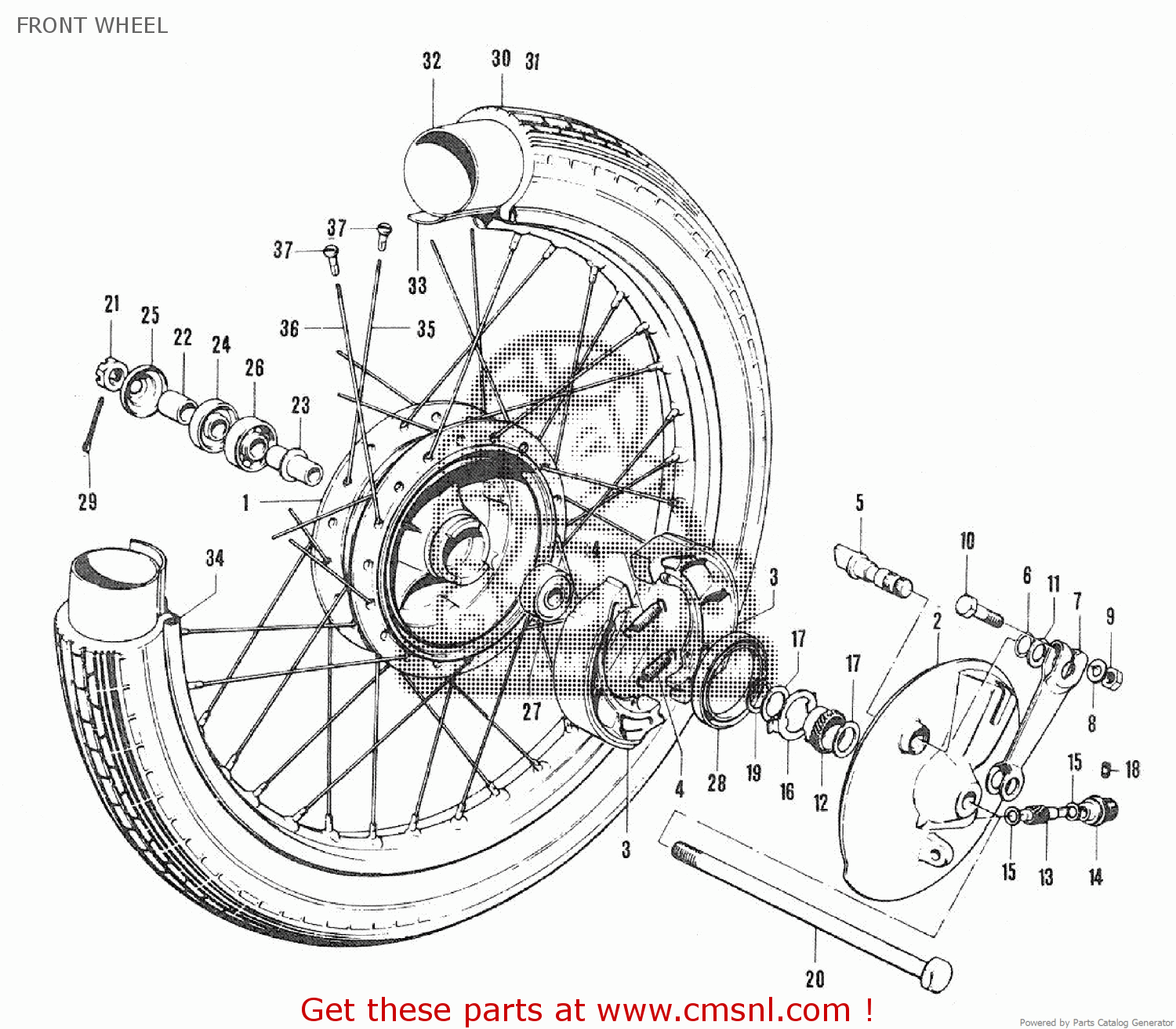

FRONT WHEEL

ref

part #

description

quantity

0

5410012610
ref: 0

HUB,FRONT

€ 0.00

1

5411007000
ref: 1

HUB,FRONT

€ 137.50

2

5421012002
ref: 2

PANEL,FRONT HUB

€ 52.00

3

5441007001
ref: 3

SHOE,BRAKE

€ 35.00

4

0944307001
ref: 4

SPRING(L:34)

€ 2.50

5

5444120000
ref: 5

CAM,FRONT BRAKE

€ 19.50

6

0928012001
ref: 6

O RING(D:2.5,ID:11.4)

€ 2.50

7

5445103001
ref: 7

LEVER,FRONT BRAKE CAM

€ 10.50

8

0832221068
ref: 8

WASHER

€ 2.00

9

0831111068
ref: 9

NUT

€ 2.50

10

0910006050
ref: 10
6SCREW,L.=30(1.18)

BOLT

€ 1.50

11

0916012011
ref: 11
12.5X20X1(0.49X0.79X0.04)

WASHER(12.5X20X1)

€ 1.50

12

5461107600
ref: 12

GEAR,SPEEDOMETER

€ 16.00

13

5462103000
ref: 13

PINION,SPEEDOMETER

€ 15.50

14

5463201001
ref: 14

BUSH,METER GEAR OUTER

€ 9.00

15

0916005001
ref: 15
5.1X9X0.4(0.20X0.35X0.02)

WASHER (5.1X9X0.4)

€ 2.00

16

5466107000
ref: 16

DRIVER,SPEEDOMETER GEAR

€ 3.00

17

0916018002
ref: 17
18.5X24X1(0.73X0.94X0.04)

WASHER(18.5X24X1)

€ 2.00

18

0913403101
ref: 18

SCREW

€ 1.50

19

0833111189
ref: 19

CIRCLIP

€ 2.00

20

5471107611
ref: 20

AXLE,FRONT

€ 22.00

21

0831431128
ref: 21

NUT 12MM

€ 2.00

22

0918012007
ref: 22
12X18X19.4(0.47X0.71X0.76)

SPACER(12X18X19.4)

€ 4.00

23

5473007000
ref: 23

SPACER,FRONT HUB BEARING

€ 9.00

24

0928418001
ref: 24
18X37X5(0.71X1.46X0.20)

OIL SEAL(17X38X5)

€ 12.50

25

5489207000
ref: 25

COVER,FR HUB DUST SEAL

€ 3.50

26

0811363010
ref: 26

BEARING

€ 9.50

27

0814363010
ref: 27

BEARING, RH

€ 14.50

28

0928348001
ref: 28
48X62X7(1.89X2.44X0.28)

OIL SEAL

€ 5.50

29

0411130258
ref: 29

PIN

€ 1.50

30

5510025010
ref: 30
2.75-18,SEMI-KNOBY TIRE

TIRE,FRONT

€ 38.50

32

5520011601
ref: 32
2.75-18

TUBE,INNER

€ 24.50

33

5526114010
ref: 33

PROTECTOR,WHEEL,INNER

€ 3.50

34

5531112120
ref: 34
1.40X18

RIM,WHEEL(1.40X18)

€ 85.00

34

5530012825
ref: 34

SPOKE SET,FRONT

€ 43.50

35

5532112120
ref: 35

SPOKE,WHEEL

€ 0.00

36

5532212120
ref: 36

SPOKE,WHEEL

€ 0.00

37

5532503020
ref: 37

NIPPLE,SPOKE

€ 0.00

FRONT WHEEL

all assemblies
