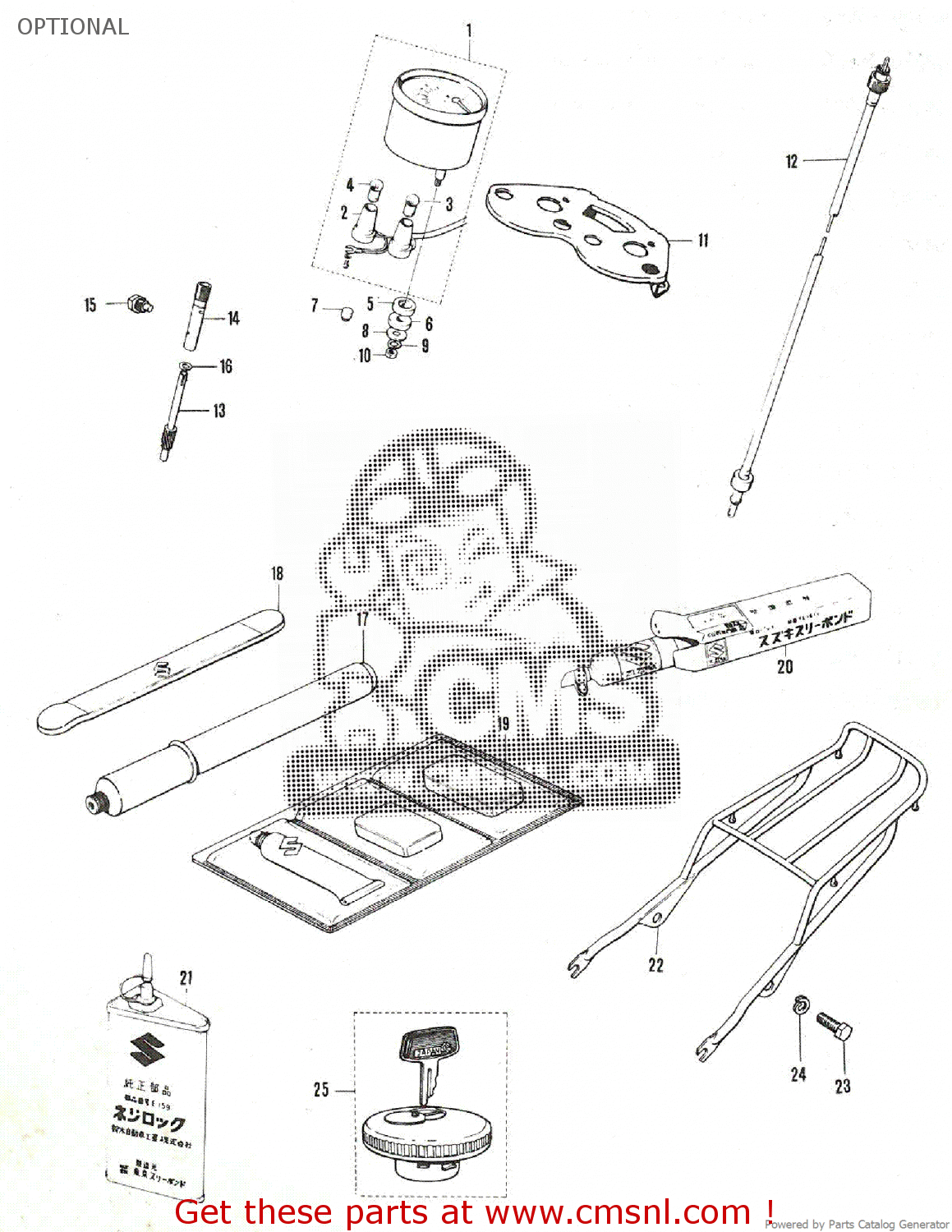

OPTIONAL

ref

part #

description

quantity

1

3420020010
ref: 1
TO BE USED REF.NOS.1~16 TOGETHER

TACHOMETER ASSEMBLY

€ 0.00

2

3417020110
ref: 2

SOCKET,METER

€ 0.00

3

0947106002
ref: 3
6V,3.4W

BULB(6V/3W)

€ 2.50

4

0947106001
ref: 4
6V,1.7W

BULB(6V1.7W,STANLEY,A61A)

€ 2.50

5

3495520000
ref: 5

CUSHION,METER

€ 2.50

6

0932008004
ref: 6

CUSHION

€ 3.00

7

3595705100
ref: 7

METER REAR CUSHION

€ 0.00

8

0916005006
ref: 8

WASHER (5.5X18X1.6)

€ 4.00

9

0832121058
ref: 9

LOCK WASHER

€ 2.00

10

0831111058
ref: 10

NUT

€ 2.50

11

3495025100
ref: 11

BRACKET,METER

€ 0.00

12

3494025030
ref: 12

CABLE ASSEMBLY,TACHOMETER

€ 0.00

13

2643125000
ref: 13

GEAR,TACHOMETER DRIVEN

€ 16.00

14

2644125000
ref: 14

SLEEVE, DRIVEN GEAR

€ 11.50

15

0913506009
ref: 15

BOLT(6X12)

€ 2.00

16

0916008003
ref: 16

WASHER(8X13.7X1)

€ 2.00

17

0982100002
ref: 17

INFLATOR, AIR

€ 66.00

18

0982500002
ref: 18

LEVER,TIRE

€ 16.50

19

0982600001
ref: 19

TUBE REPARING TOOL

€ 6.50

20

9900031010
ref: 20

LIQUID GSKT 150G BLACK

€ 92.50

21

9900032010
ref: 21

THREAD CEMENT

€ 92.50

22

4631025000
ref: 22

CARRIER

€ 35.00

23

0112108128
ref: 23

SMALL HEAD HEXAGON BOLT

€ 2.50

24

0832121088
ref: 24

LOCK WASHER

€ 2.00

25

4420022600
ref: 25
KEY-LOCK TYPE

FUEL TANK CAP

€ 59.00

all assemblies
