FRAME COVER (MODEL K2)

VL800Z VOLUSIA 2001 (K1) USA (E03)

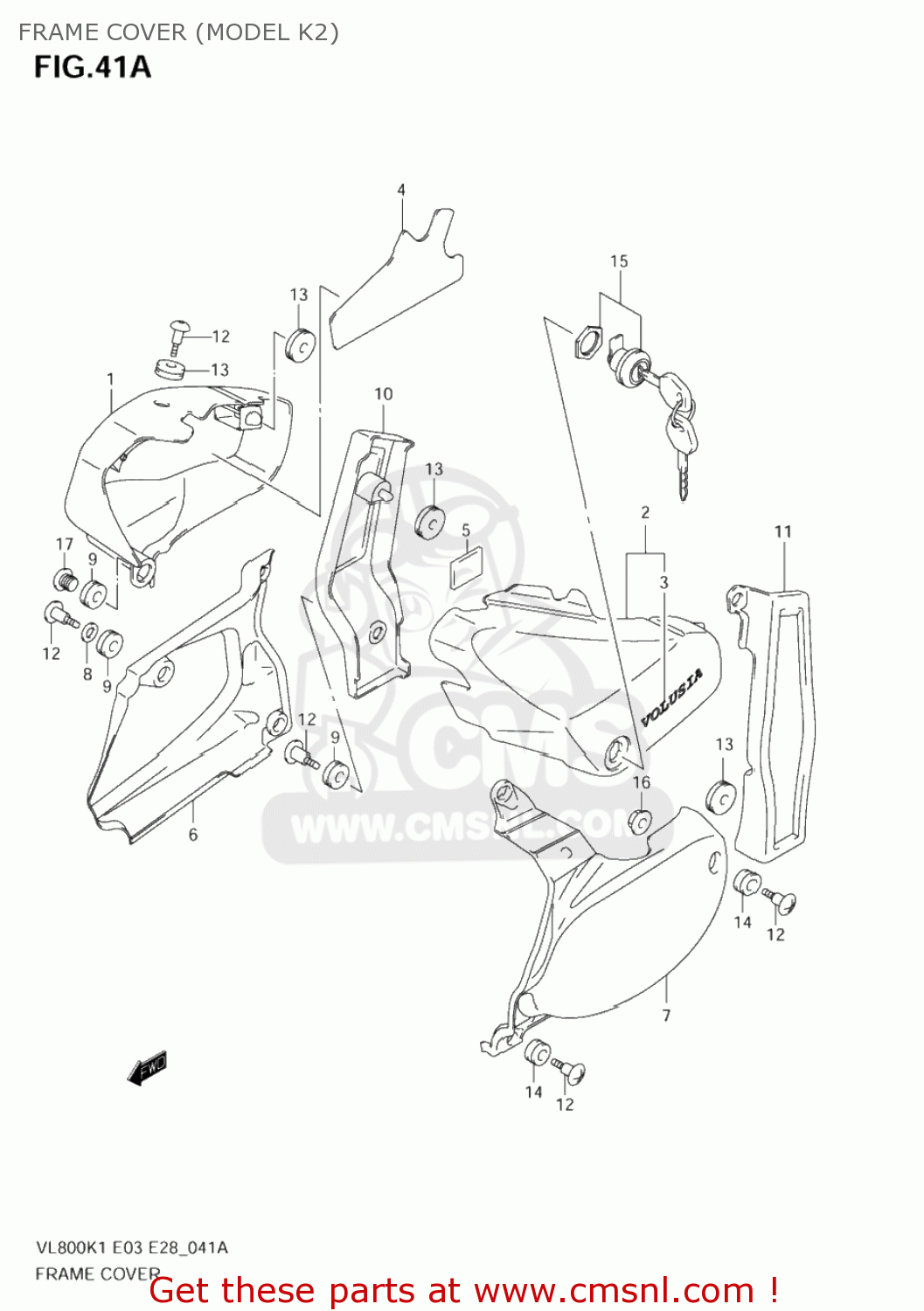

Frame cover (model k2) diagram VL800Z VOLUSIA 2001 (K1) USA (E03)

FRAME COVER (MODEL K2) VL800Z VOLUSIA 2001 (K1) USA (E03)

FRAME COVER (MODEL K2) VL800Z VOLUSIA 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4711041F0033J
ref: 1-1
47110-41F01-33J

COVER, FRAME RH (BLACK)

€ 181.50

1-2

4711041F00YM6
ref: 1-2
47110-41F01-YM6

COVER, FRAME RH (SILVER)

€ 150.50

1-3

4711041F2033J
ref: 1-3

COVER,SIDE,R(BLACK)

€ 0.00

1-4

4711041F20YM6
ref: 1-4

COVER,SIDE,R(SILVER)

€ 0.00

2-1

4721041F0033J
ref: 2-1

COVER,SIDE,L(BLACK)

€ 141.50

2-2

4721041F00YM6
ref: 2-2

COVER,SIDE,L(SILVER)

€ 116.50

3-1

6813141F00FW8
ref: 3-1

EMBLEM,FRAME COVER

€ 9.00

3-2

6813141F00HJ2
ref: 3-2

EMBLEM,FRAME COVER

€ 9.00

4

4716641F00
ref: 4

SHIELD,FRAME COVER

€ 7.50

5

9367680020
ref: 5

PAD,BALANCER UPPER,R

€ 4.50

6

4713041F00
ref: 6

COVER,SIDE LWR,R

€ 115.00

7

4723141F00
ref: 7

COVER,SIDE LWR,L

€ 184.00

8

0916010123
ref: 8

WASHER(10.5X20X2.3)

€ 2.00

9

0932008021
ref: 9

CUSHION

€ 4.00

10

4714141F00019
ref: 10
47141-41F01-019

COVER SIDE,REA

€ 55.50

11

4724141F00019
ref: 11

COVER,SIDE RR,L

€ 55.50

12

0913906087
ref: 12
09139-06126

SCREW(6X20)

€ 4.00

13

0932008018
ref: 13

CUSHION

€ 4.00

14

0932009501
ref: 14

CUSHION

€ 2.00

15

9570007860
ref: 15

LOCK SET,COVER

€ 76.00

16

0831610063
ref: 16
08316-1006B

NUT

€ 2.50

17

0925009001
ref: 17

CAP(OD:14)

€ 1.00
