FRONT FENDER (VL800ZK4/ZK5)

VL800Z VOLUSIA 2001 (K1) USA (E03)

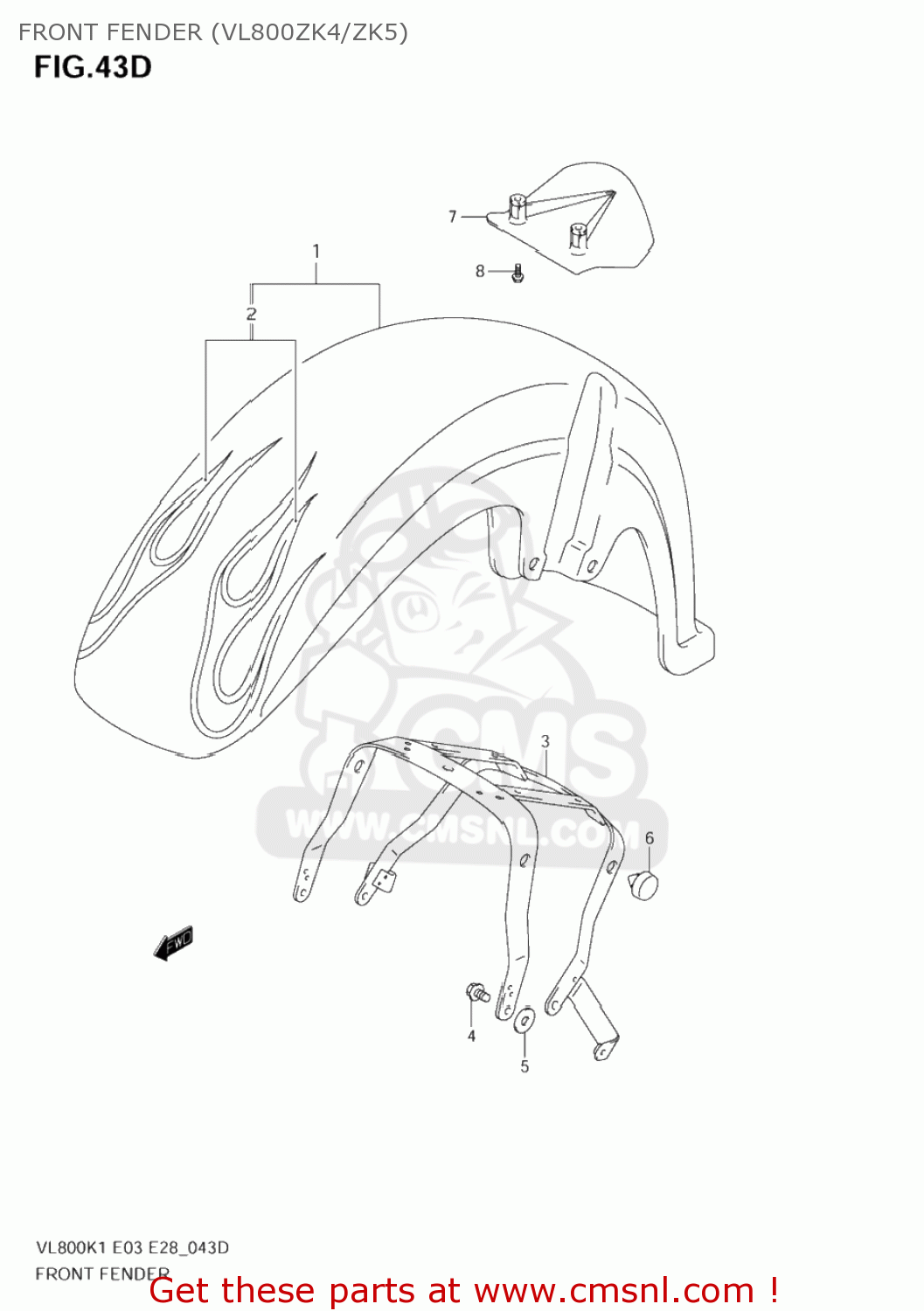

Front fender (vl800zk4/zk5) diagram VL800Z VOLUSIA 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5311041F40YAU
ref: 1-1

FENDER,FR

€ 341.00

1-2

5311041F50YU7
ref: 1-2

FENDER,FR

€ 359.00

2-1

6815041F20AWC
ref: 2-1

TAPE SET,FR FENDER

€ 52.50

2-2

6815041F30CEN
ref: 2-2

TAPE SET,FR FENDER

€ 59.00

5312041F10
ref: 3
53120-41F12

BRACE,FR FENDER

€ 75.00

0155006203
ref: 4
01550-0620A

BOLT

€ 2.50

5327641F00
ref: 5

WASHER,FR FENDER

€ 6.00

0932110007
ref: 6

CUSHION

€ 4.50

5318141F00
ref: 7

WING,FR

€ 7.00

0911306001
ref: 8

BOLT(6X16)

€ 3.00
