HANDLE SWITCH (MODEL K4/K5)

VL800Z VOLUSIA 2001 (K1) USA (E03)

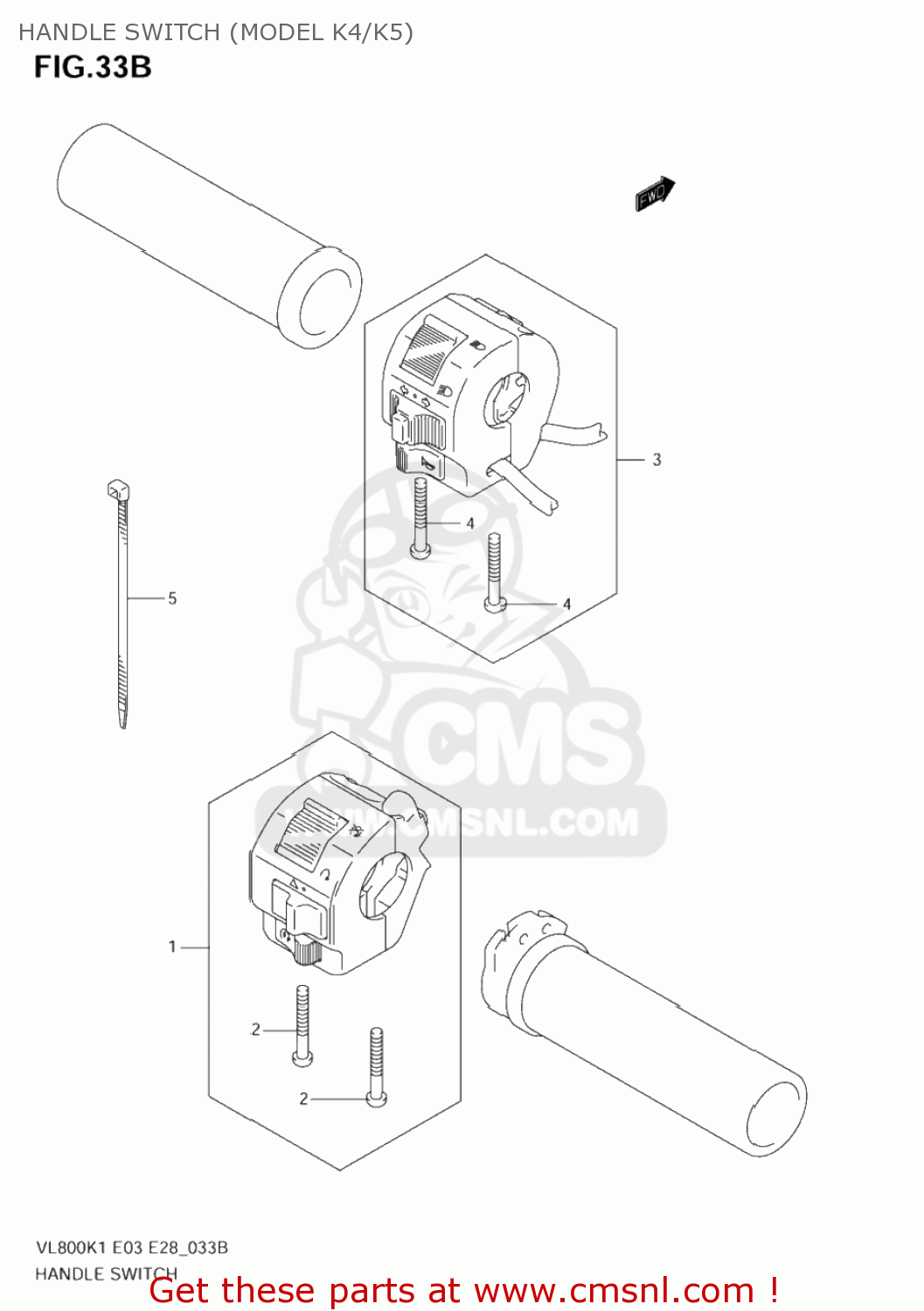

Handle switch (model k4/k5) diagram VL800Z VOLUSIA 2001 (K1) USA (E03)

HANDLE SWITCH (MODEL K4/K5) VL800Z VOLUSIA 2001 (K1) USA (E03)

HANDLE SWITCH (MODEL K4/K5) VL800Z VOLUSIA 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3720041F90
ref: 1-1

SWITCH ASSY,HANDLE,R

€ 237.00

1-2

3720041FA0
ref: 1-2
37200-41FA1

SWITCH ASSY,HA

€ 272.50

2

0912505048
ref: 2
09136-05041

SCREW(5X16)

€ 2.00

3

3740041F10
ref: 3

SWITCH ASSY,HANDLE,L

€ 241.50

4

0912505048
ref: 4
09136-05041

SCREW(5X16)

€ 2.00

5

0940714407
ref: 5

CLAMP(L:145)

€ 4.00
