STEERING STEM (MODEL K1/K2/K3/K4)

VL800Z VOLUSIA 2001 (K1) USA (E03)

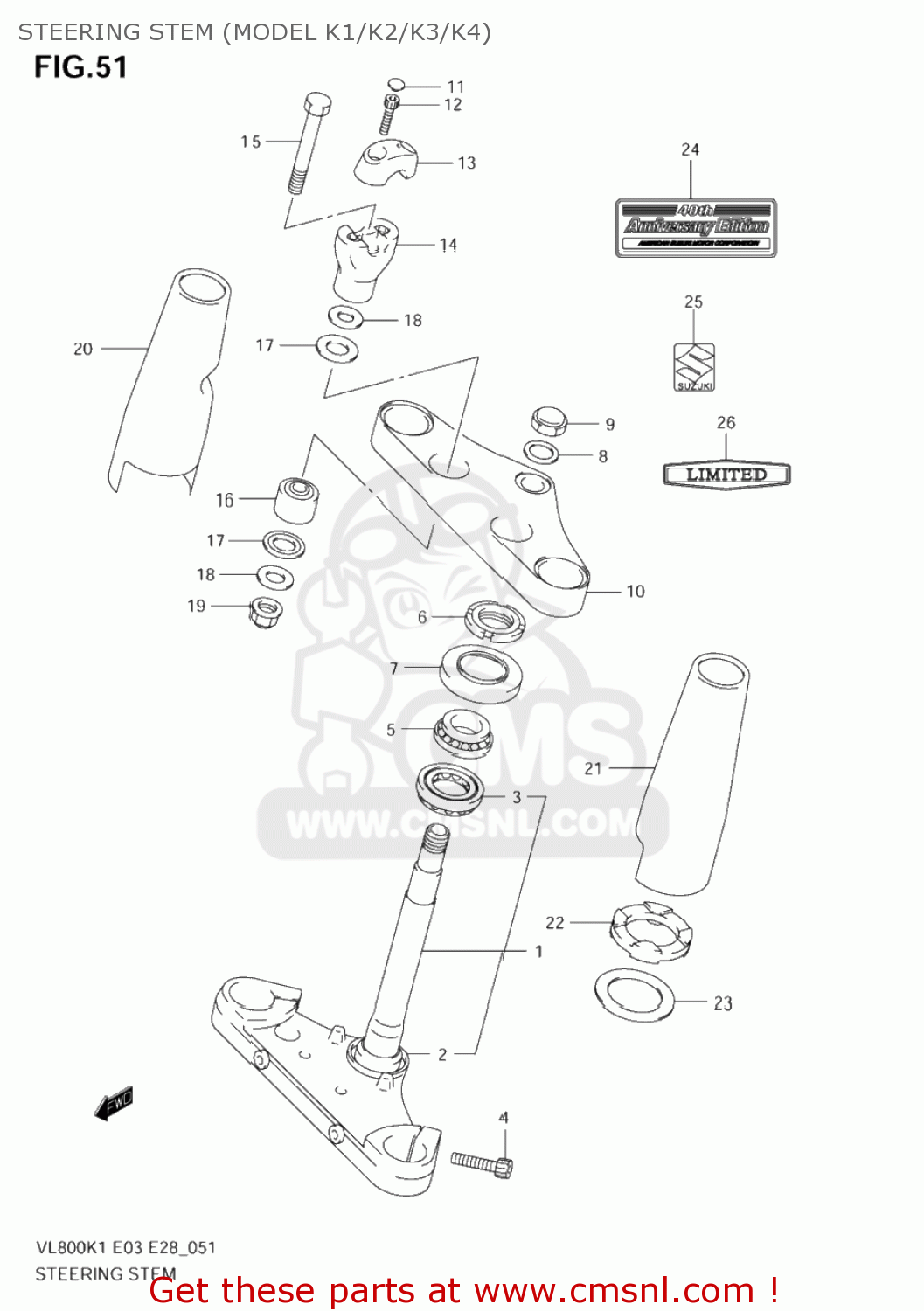

Steering stem (model k1/k2/k3/k4) diagram VL800Z VOLUSIA 2001 (K1) USA (E03)

STEERING STEM (MODEL K1/K2/K3/K4) VL800Z VOLUSIA 2001 (K1) USA (E03)

STEERING STEM (MODEL K1/K2/K3/K4) VL800Z VOLUSIA 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5141041F20
ref: 1

STEM,STEERING

€ 716.50

2

5164412C00
ref: 2

SEAL,STEERING LWR

€ 5.50

3

0926730010
ref: 3

BEARING(30X55X17)

€ 46.50

4

0713010303
ref: 4
07130-1030B

BOLT

€ 3.50

5

0926725009
ref: 5

BEARING(25X47X15)

€ 40.00

6

5163128000
ref: 6

NUT,STEERING STEM(25X44X10)

€ 12.50

7

5164340502
ref: 7

DUST SEAL,STEERING UPR

€ 8.00

8

5135624B01
ref: 8

WASHER(22.5X32X1.6)

€ 3.00

9

5135324B00
ref: 9

NUT,CAP

€ 21.50

10

5131141F20
ref: 10

HEAD,STEERING STEM

€ 464.50

11

0925006009
ref: 11

CAP(OD:14.5)

€ 3.50

12

0713008307
ref: 12

BOLT

€ 4.50

13

5621141F20
ref: 13

HOLDER,HANDLE UPR

€ 41.50

14

5622141F20
ref: 14

HOLDER,HANDLE UNDER

€ 71.50

15

5122641F20
ref: 15

BOLT

€ 14.50

16

5624041F20
ref: 16

DAMPER,RUBBER

€ 27.00

17

5624541F20
ref: 17

SEAT,RUBBER

€ 3.50

18

5135441F20
ref: 18

WASHER

€ 6.00

19

5624641F20
ref: 19

NUT

€ 8.00

20

5153041F20
ref: 20

COVER,UPR,R

€ 138.50

21

5154041F20
ref: 21

COVER,UPR,L

€ 138.50

22

5146810F00
ref: 22

SEAT,RUBBER

€ 13.50

23

5146710F00
ref: 23

WASHER

€ 8.00

24

6828141F00
ref: 24

EMBLEM,40TH

€ 0.00

25

6828135F00
ref: 25

EMBLEM,S

€ 13.00

26

6828135F10
ref: 26

EMBLEM,LIMITED

€ 23.00
