FRONT FENDER (MODEL K3)

VL800Z VOLUSIA 2001 (K1) USA (E03)

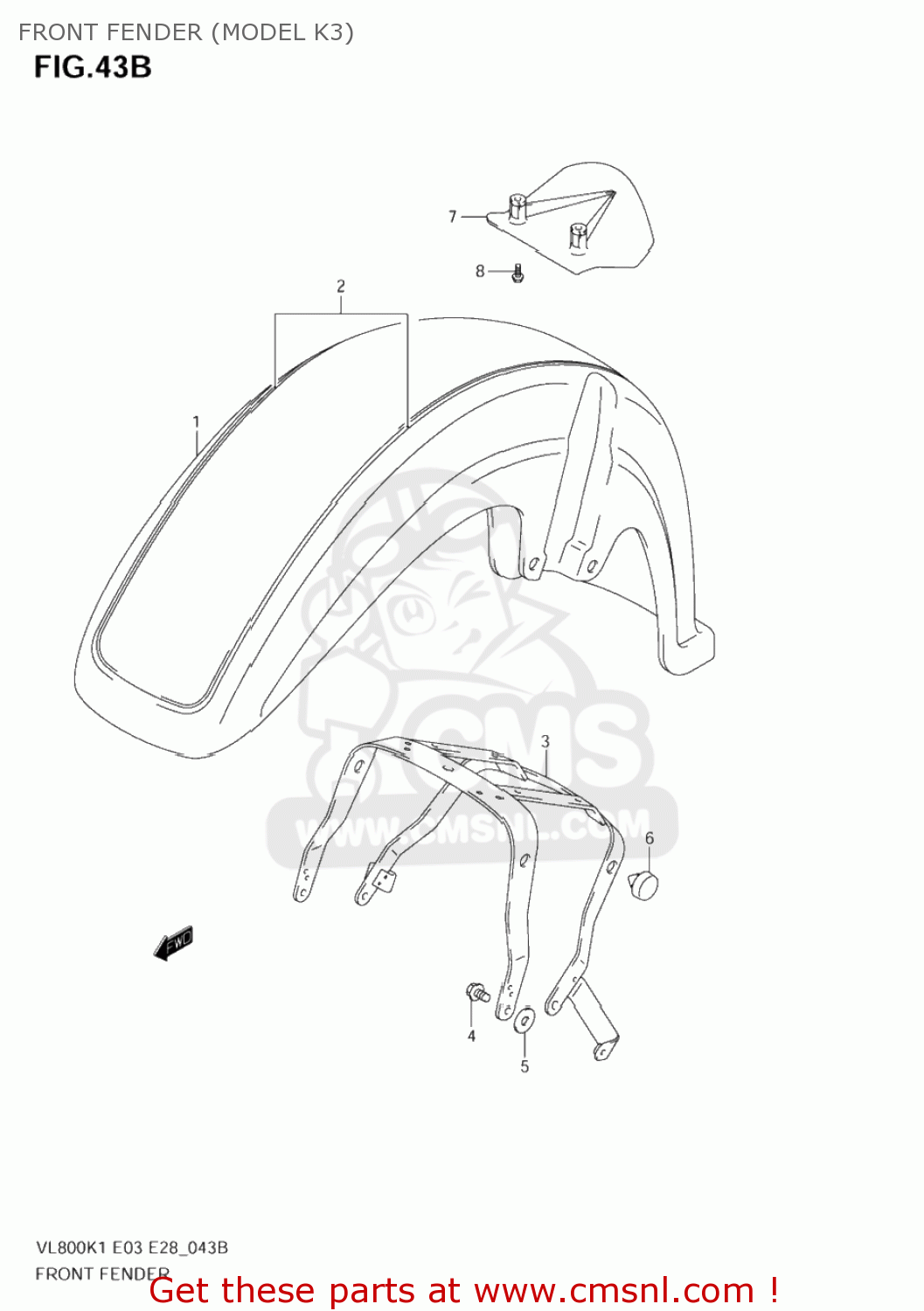

Front fender (model k3) diagram VL800Z VOLUSIA 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5311041F3033J
ref: 1-1

FENDER,FR

€ 478.00

1-2

5311041F30KT9
ref: 1-2

FENDER,FR

€ 438.00

1-3

5311041F30KU1
ref: 1-3

FENDER,FR

€ 493.00

1-4

5311041F30YC3
ref: 1-4

FENDER,FR

€ 0.00

2-1

6815041F10LT2
ref: 2-1

TAPE SET,FR FENDER

€ 175.00

2-2

6815041F10LS9
ref: 2-2

TAPE SET,FR FENDER

€ 109.00

2-3

6815041F10LT1
ref: 2-3

TAPE SET,FR FENDER

€ 109.00

2-4

6815041F10ME4
ref: 2-4

TAPE SET,FR FENDER

€ 97.50

5312041F10
ref: 3
53120-41F12

BRACE,FR FENDER

€ 75.00

0155006203
ref: 4
01550-0620A

BOLT

€ 2.50

5327641F00
ref: 5

WASHER,FR FENDER

€ 6.00

0932110007
ref: 6

CUSHION

€ 4.50

5318141F00
ref: 7

WING,FR

€ 7.00

0911106066
ref: 8

BOLT(6X16)

€ 2.50
