FRAME COVER (MODEL K4)

VL800Z VOLUSIA 2001 (K1) USA (E03)

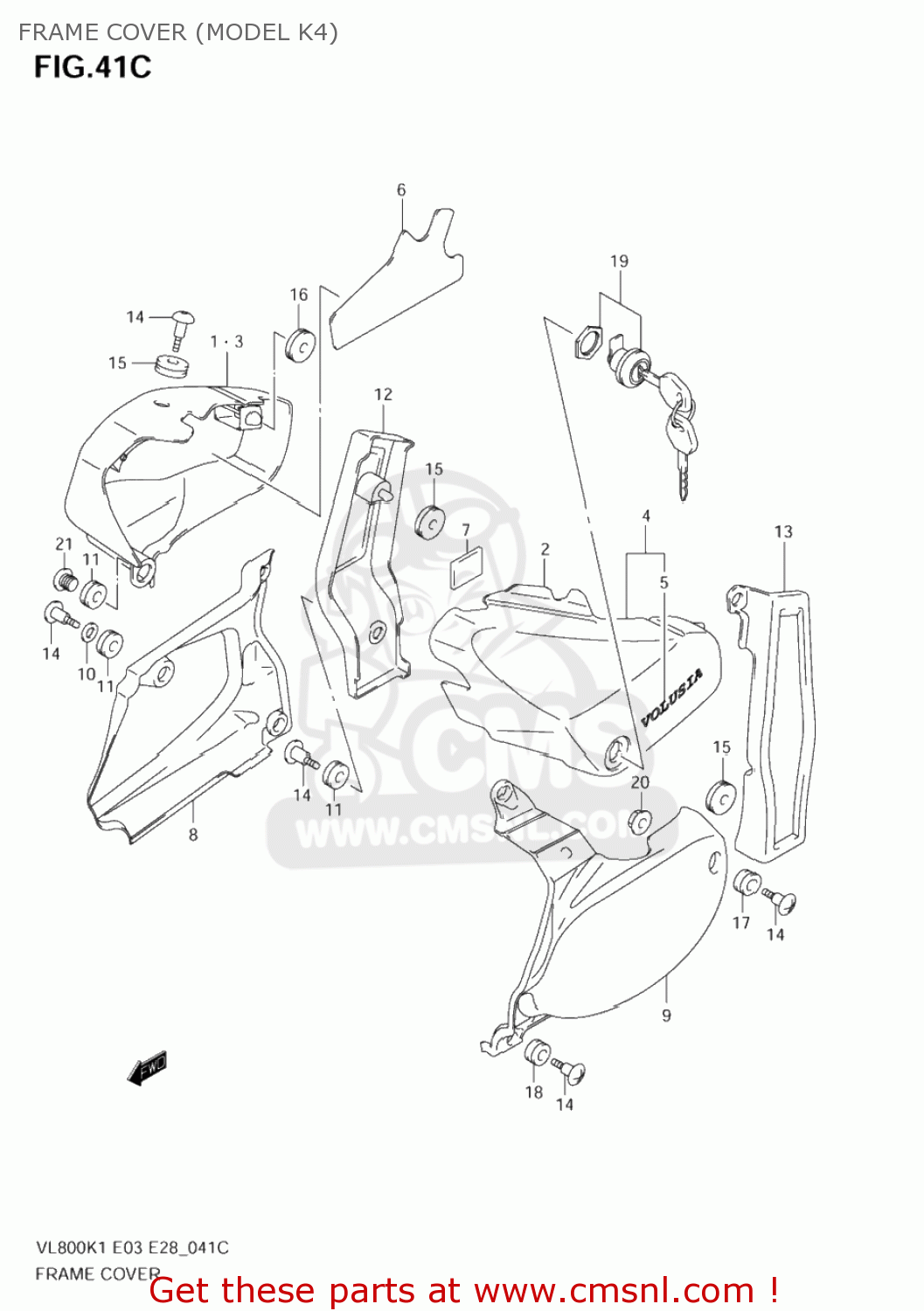

Frame cover (model k4) diagram VL800Z VOLUSIA 2001 (K1) USA (E03)

FRAME COVER (MODEL K4) VL800Z VOLUSIA 2001 (K1) USA (E03)
FRAME COVER (MODEL K4) VL800Z VOLUSIA 2001 (K1) USA (E03)
FRAME COVER (MODEL K4) VL800Z VOLUSIA 2001 (K1) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
4711041F30YAY
ref: 1-1
47110-41F31-YAY
COVER COMP,SID
4711041F30YAY
€ 108.00
1-2
4711041F30YV2
ref: 1-2
COVER,SIDE,R(SILVER)
€ 114.00
1-3
4711041F30YAR
ref: 1-3
COVER,SIDE,R(BLUE)
€ 164.50
1-4
4711041F40YAY
ref: 1-4
COVER,SIDE,R(BLACK)
€ 0.00
1-5
4711041F40YV2
ref: 1-5
COVER,SIDE,R(SILVER)
€ 0.00
1-6
4711041F40YAR
ref: 1-6
COVER,SIDE,R(BLUE)
€ 0.00
2-1
4721141F00YAY
ref: 2-1
47211-41F01-YAY
COVER,SIDE,L
€ 33.00
2-2
4721141F00YV2
ref: 2-2
47211-41F01-YV2
COVER,SIDE,L
€ 102.00
2-3
4721141F00YAR
ref: 2-3
COVER,SIDE,L(BLUE)
€ 111.00
3-1
4711041F00YAU
ref: 3-1
COVER,SIDE,R(GRAY)
€ 112.50
3-2
4711041F20YAU
ref: 3-2
COVER,SIDE,R(GRAY)
€ 0.00
4
4721041F00YAU
ref: 4
COVER,SIDE,L(GRAY)
€ 113.00
5
6813141F00AVY
ref: 5
EMBLEM,FRAME COVER
6813141F00AVY
€ 12.00
6
4716641F00
ref: 6
SHIELD,FRAME COVER
4716641F00
€ 7.50
7
9367680020
ref: 7
PAD,BALANCER UPPER,R
9367680020
€ 4.50
8
4713041F00
ref: 8
COVER,SIDE LWR,R
4713041F00
€ 115.00
9
4723141F00
ref: 9
COVER,SIDE LWR,L
4723141F00
€ 184.00
10
0916010123
ref: 10
WASHER(10.5X20X2.3)
0916010123
€ 2.00
11
0932008021
ref: 11
CUSHION
0932008021
€ 4.00
12
4714141F00019
ref: 12
47141-41F01-019
COVER SIDE,REA
€ 55.50
13
4724141F00019
ref: 13
COVER,SIDE RR,L
4724141F00019
€ 55.50
14
0913906126
ref: 14
SCREW(6X20)
0913906126
€ 4.00
15
0932008018
ref: 15
CUSHION
0932008018
€ 4.00
16
0932008028
ref: 16
CUSHION
0932008028
€ 2.50
17
0932009501
ref: 17
CUSHION
0932009501
€ 2.00
18
0932009026
ref: 18
09320-09045
CUSHION
0932009026
€ 4.00
19
9570007860
ref: 19
LOCK SET,COVER
9570007860
€ 76.00
20
0831610063
ref: 20
08316-1006B
NUT
0831610063
€ 2.50
21
0925009001
ref: 21
CAP(OD:14)
0925009001
€ 1.00
