STEERING STEM (MODEL K5)

VL800Z VOLUSIA 2001 (K1) USA (E03)

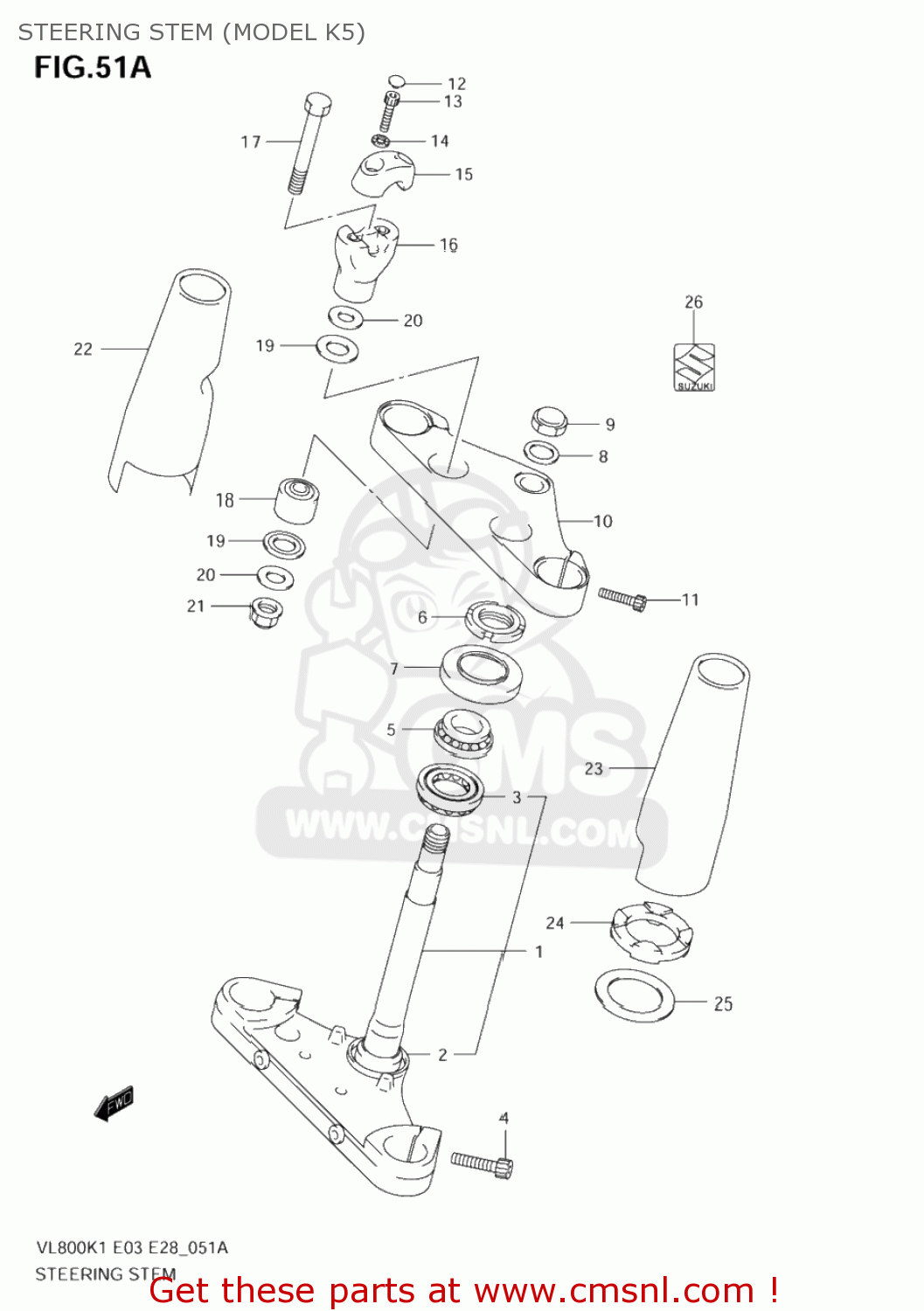

Steering stem (model k5) diagram VL800Z VOLUSIA 2001 (K1) USA (E03)

STEERING STEM (MODEL K5) VL800Z VOLUSIA 2001 (K1) USA (E03)

STEERING STEM (MODEL K5) VL800Z VOLUSIA 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5141041F20
ref: 1

STEM,STEERING

€ 716.50

2

5164412C00
ref: 2

SEAL,STEERING LWR

€ 5.50

3

0926730010
ref: 3

BEARING(30X55X17)

€ 46.50

4

0713010303
ref: 4
07130-1030B

BOLT

€ 3.50

5

0926725009
ref: 5

BEARING(25X47X15)

€ 40.00

6

5163128000
ref: 6

NUT,STEERING STEM(25X44X10)

€ 12.50

7

5164340502
ref: 7

DUST SEAL,STEERING UPR

€ 8.00

8

5135624B01
ref: 8

WASHER(22.5X32X1.6)

€ 3.00

9

5135324B00
ref: 9

NUT,CAP

€ 21.50

10

5131141F40
ref: 10

HEAD,STEERING STEM

€ 370.50

11

5132106G00
ref: 11

BOLT

€ 5.00

12

0925006009
ref: 12

CAP(OD:14.5)

€ 3.50

13

0713008307
ref: 13

BOLT

€ 4.50

14

0916408015
ref: 14

WASHER

€ 3.00

15

5621141F20
ref: 15

HOLDER,HANDLE UPR

€ 41.50

16

5622141F20
ref: 16

HOLDER,HANDLE UNDER

€ 71.50

17

5122641F20
ref: 17

BOLT

€ 14.50

18

5624041F20
ref: 18

DAMPER,RUBBER

€ 27.00

19

5624541F20
ref: 19

SEAT,RUBBER

€ 3.50

20

5135441F20
ref: 20

WASHER

€ 6.00

21

5624641F20
ref: 21

NUT

€ 8.00

22

5153041F20
ref: 22

COVER,UPR,R

€ 138.50

23

5154041F20
ref: 23

COVER,UPR,L

€ 138.50

24

5146810F00
ref: 24

SEAT,RUBBER

€ 13.50

25

5146710F00
ref: 25

WASHER

€ 8.00

26

6828135F00
ref: 26

EMBLEM,S

€ 13.00
