HEADLAMP ASSY (MODEL K5)

VL800Z VOLUSIA 2001 (K1) USA (E03)

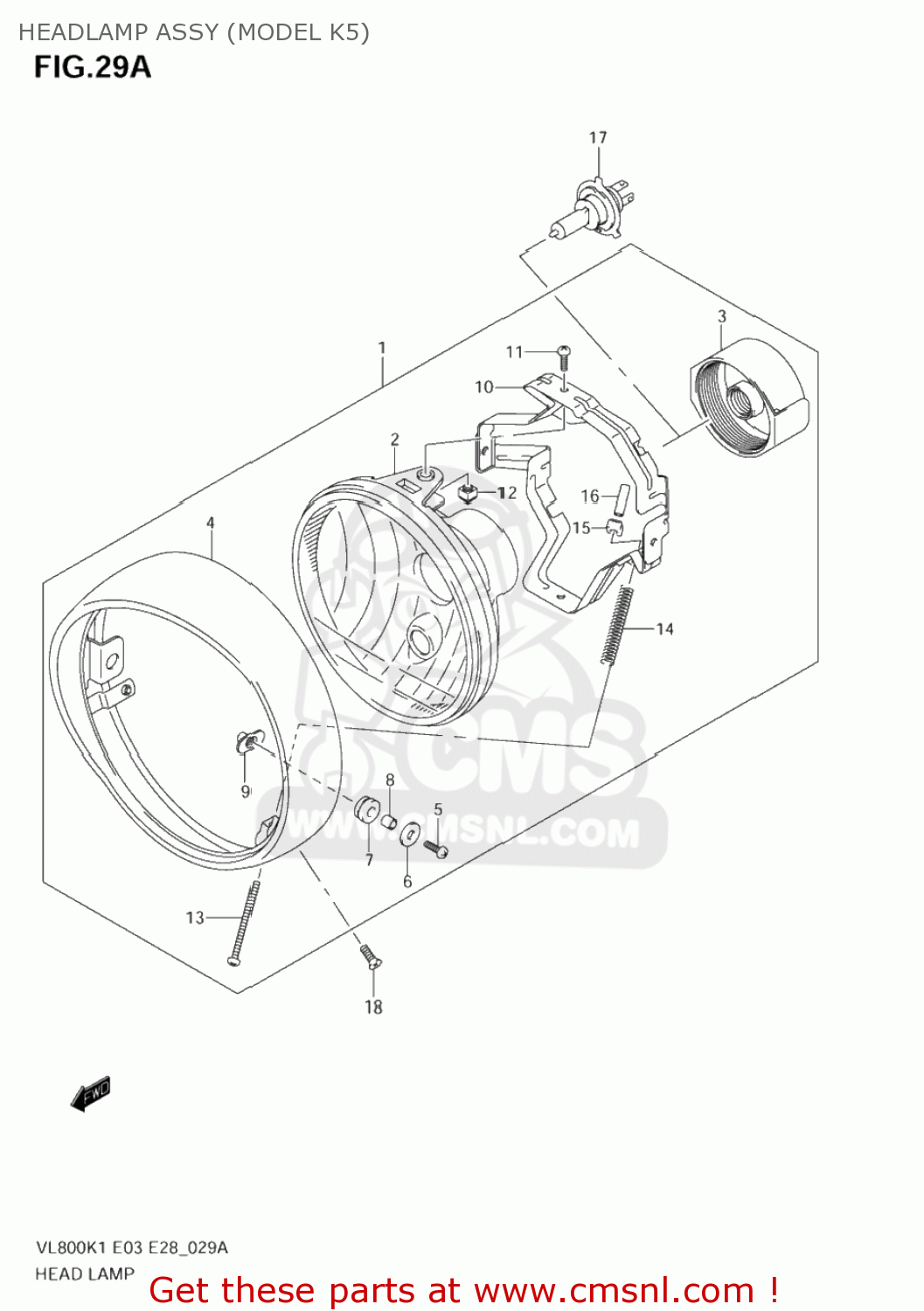

Headlamp assy (model k5) diagram VL800Z VOLUSIA 2001 (K1) USA (E03)

HEADLAMP ASSY (MODEL K5) VL800Z VOLUSIA 2001 (K1) USA (E03)
HEADLAMP ASSY (MODEL K5) VL800Z VOLUSIA 2001 (K1) USA (E03)
HEADLAMP ASSY (MODEL K5) VL800Z VOLUSIA 2001 (K1) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3510010FB0999
ref: 1
HEADLAMP ASSY
3510010FB0999
€ 246.50
2
3512110FB0
ref: 2
UNIT
€ 137.00
3
3517419F00
ref: 3
COVER,SOCKET
3517419F00
€ 19.00
4
3511110FA0
ref: 4
RIM
3511110FA0
€ 151.50
5
0212205203
ref: 5
02122-0520A
SCREW
0212205203
€ 2.00
6
3513845230
ref: 6
09160-05045
WASHER
3513845230
€ 2.00
7
3513945230
ref: 7
CUSHION
3513945230
€ 1.50
8
3513345230
ref: 8
SPACER
3513345230
€ 2.00
9
3515510FA0
ref: 9
NUT
€ 4.00
10
3513010FA0
ref: 10
BRACKET
€ 27.50
11
3518119F00
ref: 11
SCREW(5X16)
3518119F00
€ 2.00
12
3513545900
ref: 12
NUT
3513545900
€ 2.50
13
3515110FA0
ref: 13
SCREW,ADJUSTER
3515110FA0
€ 6.50
14
3515410FA0
ref: 14
SPRING,ADJUSTER
3515410FA0
€ 2.50
15
3515245600
ref: 15
NUT,HEADLAMP ADJUST
3515245600
€ 3.00
16
3515810FA0
ref: 16
COVER
3515810FA0
€ 6.50
17
0947112060
ref: 17
BULB(12V60/55W,H4)
0947112060
€ 8.00
18
0912605007
ref: 18
SCREW(5X8)
0912605007
€ 3.50
