FRONT DAMPER (MODEL K5)

VL800Z VOLUSIA 2003 (K3) USA (E03)

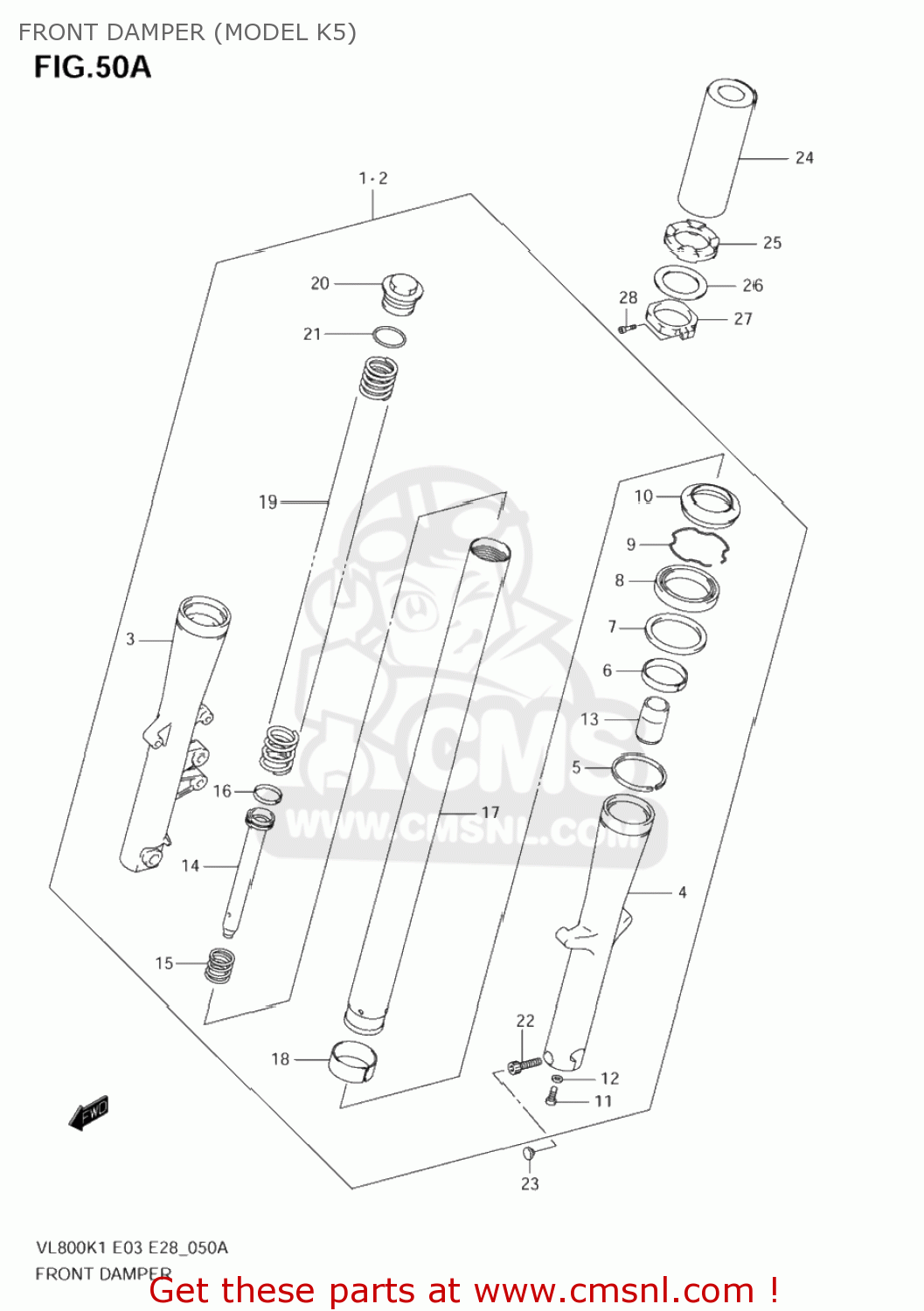

Front damper (model k5) diagram VL800Z VOLUSIA 2003 (K3) USA (E03)

FRONT DAMPER (MODEL K5) VL800Z VOLUSIA 2003 (K3) USA (E03)

FRONT DAMPER (MODEL K5) VL800Z VOLUSIA 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5110341F40
ref: 1

DAMPER ASSY,FR FORK,R

€ 591.00

2

5110441F40
ref: 2

DAMPER ASSY,FR FORK,L

€ 606.50

3

5113141F20
ref: 3

TUBE,OUTER,R

€ 312.50

4

5114141F20
ref: 4

TUBE,OUTER,L

€ 312.50

5

5146941F21
ref: 5

GUIDE,CASE

€ 11.00

6

5115211D60
ref: 6

BUSH,GUIDE

€ 12.00

7

5116838B00
ref: 7

SPACER,SEAL

€ 5.00

8

5115308D00
ref: 8

SEAL,OIL

€ 15.50

9

5155638B00
ref: 9

CIRCLIP,FORK OIL SEAL

€ 4.50

10

5157147D50
ref: 10

SEAL,DUST

€ 18.00

11

5114706F10
ref: 11

BOLT

€ 3.00

12

5114836011
ref: 12

GASKET (NAS)

€ 4.00

13

5119510F00
ref: 13

PIECE,OIL LOCK

€ 18.50

14

5114610F00
ref: 14

SEAT,PIPE

€ 71.50

15

5117710F00
ref: 15

SPRING,REBOUND

€ 7.00

16

5119647D00
ref: 16

RING,PISTON

€ 6.00

17

5111041F40
ref: 17

TUBE,INNER

€ 294.50

18

5112142E00
ref: 18

BUSH,SLIDE

€ 15.50

19

5117141F40
ref: 19

SPRING,FR

€ 86.00

20

5118947D50
ref: 20

BOLT,FORK

€ 32.00

21

5111712C00
ref: 21

O RING

€ 3.00

22

0713010357
ref: 22

BOLT

€ 3.50

23

0925008014
ref: 23

CAP(OD:12)

€ 3.50

24

5146441F21
ref: 24

CASE,UNDER

€ 84.00

25

5146810F00
ref: 25

SEAT,RUBBER

€ 13.50

26

5146710F70
ref: 26

WASHER

€ 8.50

27

5146541F20
ref: 27

SPACER

€ 34.00

28

5146610F00
ref: 28

BOLT

€ 4.50
