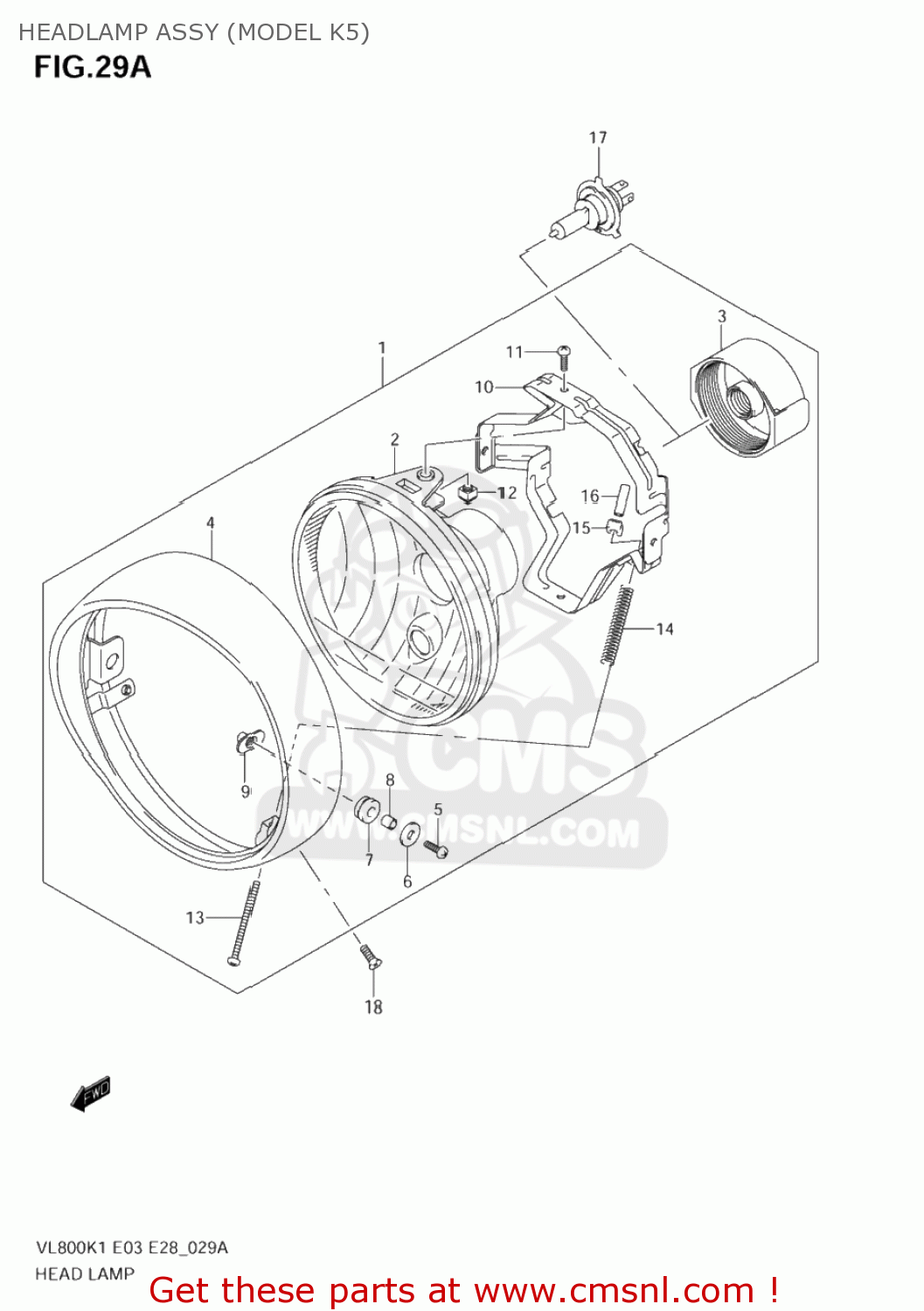

HEADLAMP ASSY (MODEL K5)

VL800Z VOLUSIA 2003 (K3) USA (E03)

Headlamp assy (model k5) diagram VL800Z VOLUSIA 2003 (K3) USA (E03)

HEADLAMP ASSY (MODEL K5) VL800Z VOLUSIA 2003 (K3) USA (E03)

HEADLAMP ASSY (MODEL K5) VL800Z VOLUSIA 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3510010FB0999
ref: 1

HEADLAMP ASSY

€ 246.50

2

3512110FB0
ref: 2

UNIT

€ 137.00

3

3517419F00
ref: 3

COVER,SOCKET

€ 19.00

4

3511110FA0
ref: 4

RIM

€ 151.50

5

0212205203
ref: 5
02122-0520A

SCREW

€ 2.00

6

3513845230
ref: 6
09160-05045

WASHER

€ 2.00

7

3513945230
ref: 7

CUSHION

€ 1.50

8

3513345230
ref: 8

SPACER

€ 2.00

9

3515510FA0
ref: 9

NUT

€ 4.00

10

3513010FA0
ref: 10

BRACKET

€ 27.50

11

3518119F00
ref: 11

SCREW(5X16)

€ 2.00

12

3513545900
ref: 12

NUT

€ 2.50

13

3515110FA0
ref: 13

SCREW,ADJUSTER

€ 6.50

14

3515410FA0
ref: 14

SPRING,ADJUSTER

€ 2.50

15

3515245600
ref: 15

NUT,HEADLAMP ADJUST

€ 3.00

16

3515810FA0
ref: 16

COVER

€ 6.50

17

0947112060
ref: 17

BULB(12V60/55W,H4)

€ 8.00

18

0912605007
ref: 18

SCREW(5X8)

€ 3.50
