GEAR SHIFTING (MODEL K1/K2/K3/K4)

VL800Z VOLUSIA 2003 (K3) USA (E03)

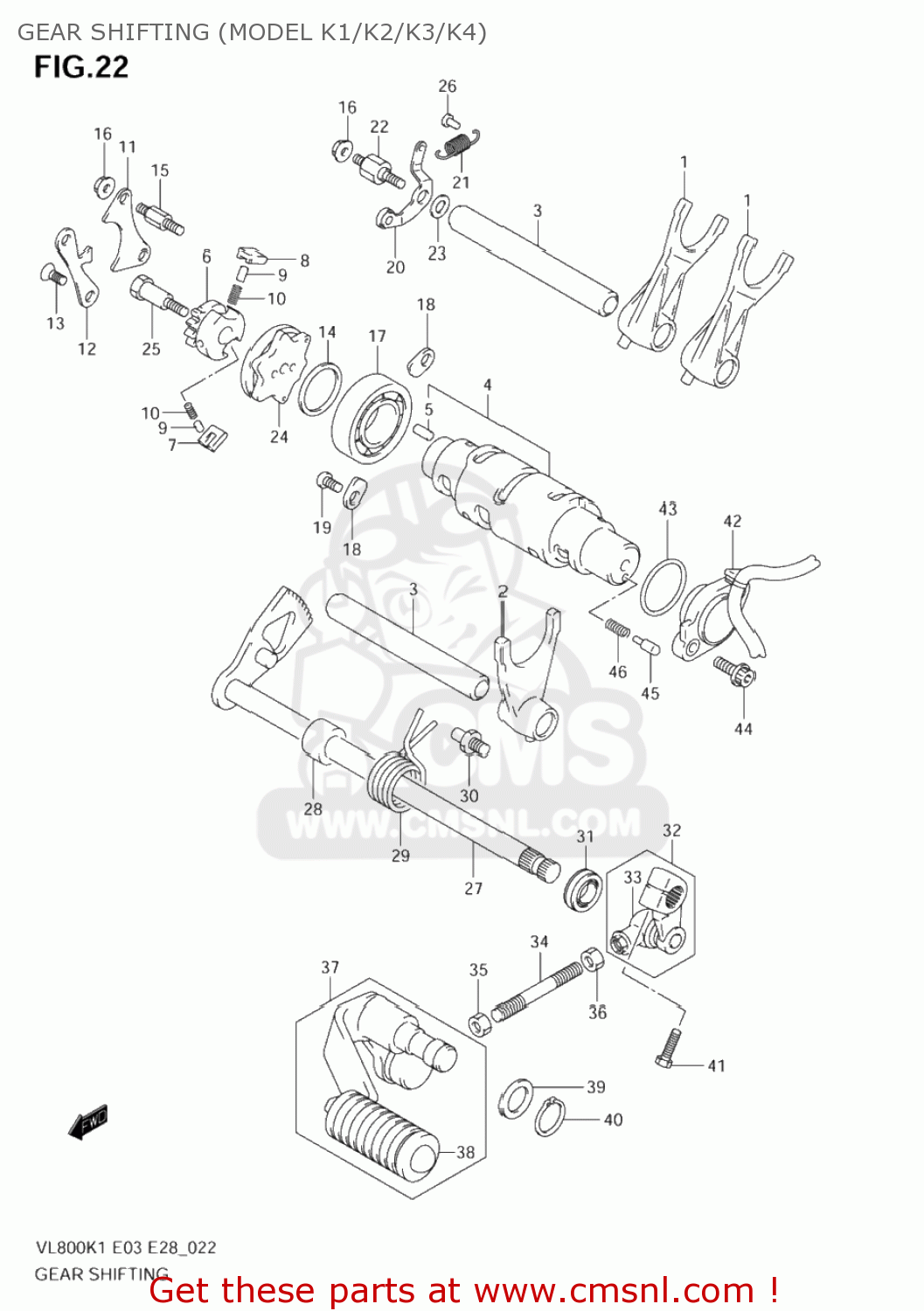

Gear shifting (model k1/k2/k3/k4) diagram VL800Z VOLUSIA 2003 (K3) USA (E03)

GEAR SHIFTING (MODEL K1/K2/K3/K4) VL800Z VOLUSIA 2003 (K3) USA (E03)
GEAR SHIFTING (MODEL K1/K2/K3/K4) VL800Z VOLUSIA 2003 (K3) USA (E03)
GEAR SHIFTING (MODEL K1/K2/K3/K4) VL800Z VOLUSIA 2003 (K3) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
2521138A02
ref: 1
FORK,GEAR SHIFT NO.1
€ 94.00
2
2522138A01
ref: 2
FORK,GEAR SHIFT NO.2
€ 79.00
3
2541138A00
ref: 3
SHAFT,GEAR SHIFT FORK(L:115)
€ 17.00
4
2531041F00
ref: 4
CAM,GEAR SHIFT
€ 138.50
5
0422104089
ref: 5
PIN
0422104089
€ 1.50
6
2532231310
ref: 6
GEAR,GEAR SHIFT CAM DRIVEN
2532231310
€ 14.50
7
2532334201
ref: 7
PAWL,GEAR SHIFT NO.1
2532334201
€ 6.00
8
2532434201
ref: 8
PAWL,GEAR SHIFT NO.2
2532434201
€ 6.00
9
0926105003
ref: 9
PIN(5X8)
0926105003
€ 1.50
10
0944004003
ref: 10
SPRING
0944004003
€ 1.50
11
2533138A00
ref: 11
LIFTER,GEAR SHIFT POLE
2533138A00
€ 4.50
12
2534138A00
ref: 12
GUIDE,GEAR SHIFT CAM
2534138A00
€ 6.00
13
0912606011
ref: 13
SCREW(6X12)
0912606011
€ 2.00
14
0916025059
ref: 14
WASHER(25X32X3)
0916025059
€ 5.00
15
2533238A10
ref: 15
BOSS,SHIFT POLE LIFTER
2533238A10
€ 3.50
16
0831610063
ref: 16
08316-1006B
NUT
0831610063
€ 2.50
17
0926225006
ref: 17
BEARING(25X47X8)
0926225006
€ 24.00
18
2474121A00
ref: 18
RETAINER
2474121A00
€ 2.00
19
0912506086
ref: 19
SCREW(6X12)
0912506086
€ 2.00
20
2535038A00
ref: 20
STOPPER,GEAR SHIFT CAM
2535038A00
€ 9.00
21
0944309027
ref: 21
SPRING
0944309027
€ 2.50
22
2535538A10
ref: 22
SUPPORT,CAM STOPPER ARM
€ 5.50
23
0821106141
ref: 23
WASHER
0821106141
€ 2.50
24
2538038A02
ref: 24
PLATE,GEAR SHIFT CAM
2538038A02
€ 15.00
25
2531238A00
ref: 25
PIN,SHIFT CAM DRIVEN GEAR
2531238A00
€ 4.00
26
0922304001
ref: 26
RIVET
0922304001
€ 1.50
27
2551038A00
ref: 27
SHAFT,GEAR SHIFT
2551038A00
€ 66.50
28
0918012068
ref: 28
SPACER(12X20X15.3)
0918012068
€ 3.00
29
0944426013
ref: 29
SPRING
0944426013
€ 3.50
30
2567101011
ref: 30
STOPPER,GEAR SHIFT ARM
2567101011
€ 3.00
31
0928512002
ref: 31
09285-12006
OIL SEAL
0928512002
€ 7.00
32
2552004700
ref: 32
ARM,GEAR SHIFT SHAFT
€ 54.00
33
2552647000
ref: 33
COVER,DUST
2552647000
€ 3.50
34
2552522A10
ref: 34
ROD,GEAR SHIFT LINK
2552522A10
€ 9.00
35
0914006011
ref: 35
NUT
0914006011
€ 1.50
36
0831000067
ref: 36
NUT
0831000067
€ 2.50
37
2560041F00
ref: 37
LEVER ASSY,GEAR SHIFT
2560041F00
€ 63.00
38
2565238B00
ref: 38
RUBBER,GEAR SHIFT PEDAL
2565238B00
€ 7.50
39
0916014055
ref: 39
WASHER(14.5X22X1.6)
0916014055
€ 2.50
40
0833131146
ref: 40
08331-3114A
CIRCLIP
0833131146
€ 2.00
41
0150006203
ref: 41
01500-0620A
BOLT
0150006203
€ 2.00
42
3772041F10
ref: 42
BASE ASSY, GEAR SHIFT TERM
3772041F10
€ 108.00
43
0928026007
ref: 43
O RING(D:2.4,ID:25.7)
0928026007
€ 6.50
44
0712005163
ref: 44
07120-0516B
BOLT
0712005163
€ 1.50
45
0920905011
ref: 45
PIN(5X15.5)
0920905011
€ 2.00
46
0944004010
ref: 46
SPRING
0944004010
€ 1.50
