OIL PUMP / FUEL PUMP (MODEL K1/K2/K3/K4)

VL800Z VOLUSIA 2003 (K3) USA (E03)

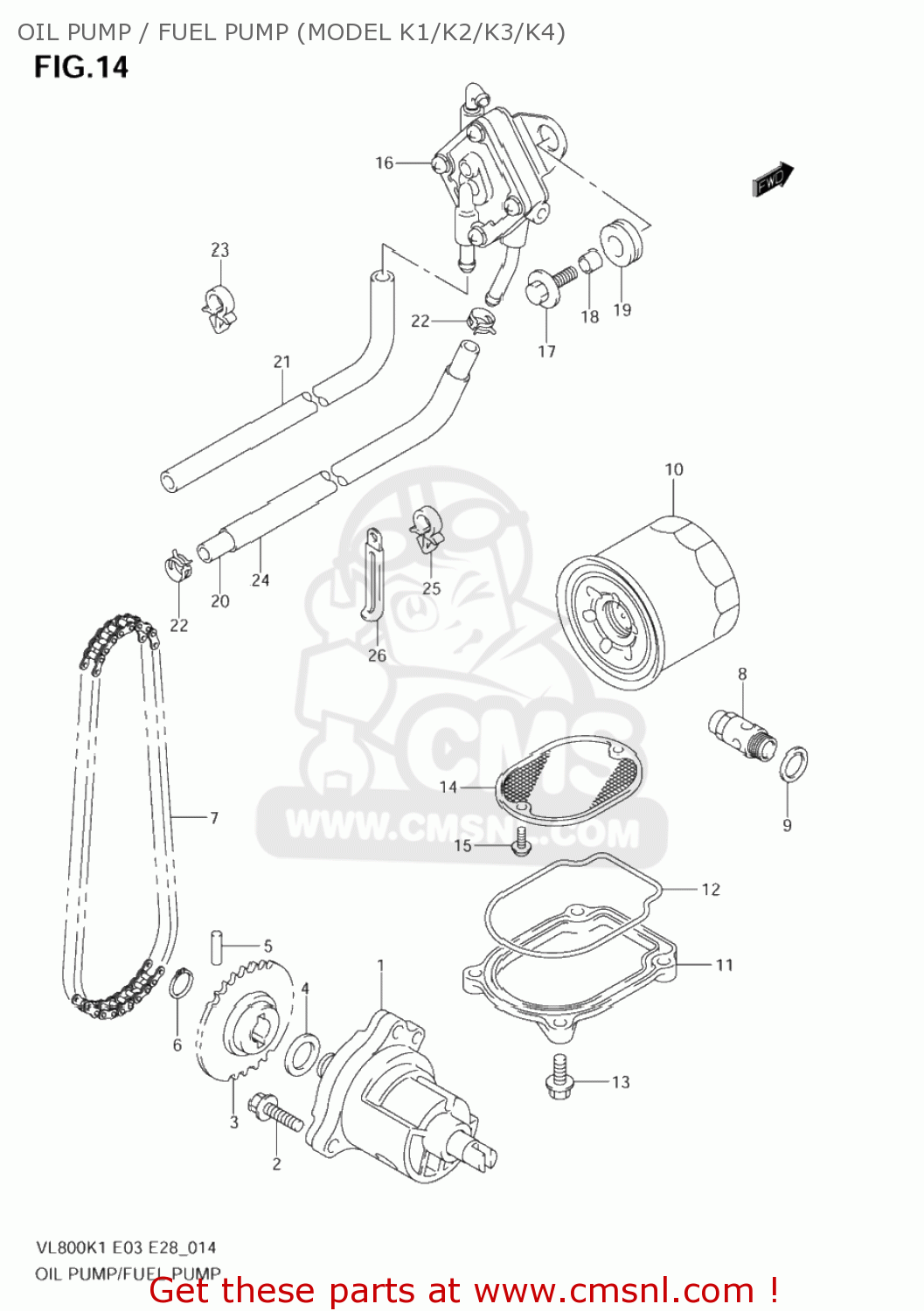

Oil pump / fuel pump (model k1/k2/k3/k4) diagram VL800Z VOLUSIA 2003 (K3) USA (E03)

OIL PUMP / FUEL PUMP (MODEL K1/K2/K3/K4) VL800Z VOLUSIA 2003 (K3) USA (E03)

OIL PUMP / FUEL PUMP (MODEL K1/K2/K3/K4) VL800Z VOLUSIA 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1640038A01
ref: 1

PUMP ASSY,ENGINE OIL

€ 148.00

2

0155006253
ref: 2
01550-0625A

BOLT

€ 2.50

3

1633138A10
ref: 3

SPROCKET,OIL PUMP DRIVEN

€ 29.00

4

0918112158
ref: 4

SHIM(12X20X0.5)

€ 2.00

5

0926105006
ref: 5

PIN(5X18)

€ 1.50

6

0833131126
ref: 6
08331-3112A

CIRCLIP,12 MM

€ 2.00

7

1631038A00
ref: 7

CHAIN,OIL PUMP DRIVE

€ 19.50

8

1644024A01
ref: 8

VALVE ASSY,OIL RELIEF

€ 52.00

9

0916816002
ref: 9

GASKET(16X22X2) (NAS)

€ 2.00

10-1

1651034E00
ref: 10-1
16510-07J00

FILTER ASSEMBLY,ENGINE OIL

€ 12.50

10-2

1651003G00X07
ref: 10-2
16510-07J00

FILTER ASSY,EN

€ 12.50

10-3

1651022H00
ref: 10-3

FILTER ASSY,EN

€ 33.50

11

1652338A00
ref: 11

CAP,OIL STRAINER

€ 19.50

12

1652838A00
ref: 12

O RING,OIL STRAINER CAP

€ 8.00

13

0155006203
ref: 13
01550-0620A

BOLT

€ 2.50

14

1652038A00
ref: 14

STRAINER,ENGINE OIL

€ 7.50

15

0211275123
ref: 15
02112-7512A

SCREW

€ 2.50

16

1510041F00
ref: 16

PUMP ASSY,FUEL

€ 117.50

17

0911606093
ref: 17

BOLT(6X25)

€ 2.00

18

0918006319
ref: 18

SPACER(6.5X10X11.6)

€ 3.50

19

0932010015
ref: 19

CUSHION

€ 2.50

20

1580141F00
ref: 20

HOSE,FUEL PUMP & CARB

€ 19.50

21

0935945854600
ref: 21

HOSE(4.5X8.5,6X9.5,L:600)

€ 10.50

22

0940109403
ref: 22

CLIP

€ 2.50

23

0940308405
ref: 23

CLAMP

€ 2.00

24

1581241F00
ref: 24

PROTECTOR,FUEL HOSE

€ 10.50

25

0940312411
ref: 25

CLAMP

€ 2.50

26

0940408420
ref: 26

CLAMP(L:120 T:1.0)

€ 3.50
