WIRING HARNESS (VL800K1/K2)

VL800Z VOLUSIA 2003 (K3) USA (E03)

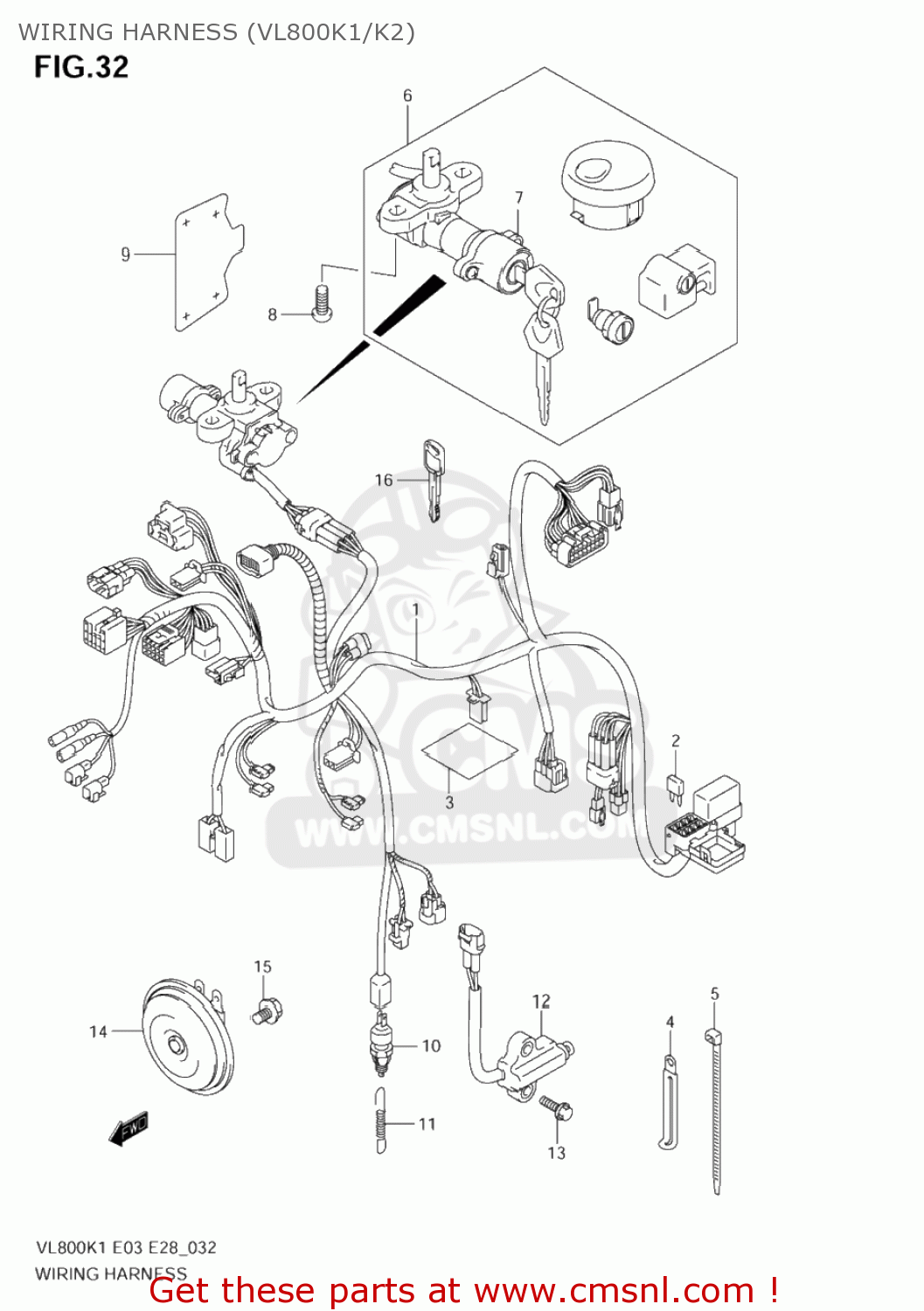

Wiring harness (vl800k1/k2) diagram VL800Z VOLUSIA 2003 (K3) USA (E03)

WIRING HARNESS (VL800K1/K2) VL800Z VOLUSIA 2003 (K3) USA (E03)
WIRING HARNESS (VL800K1/K2) VL800Z VOLUSIA 2003 (K3) USA (E03)
WIRING HARNESS (VL800K1/K2) VL800Z VOLUSIA 2003 (K3) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3661041F10
ref: 1
HARNESS,WIRING
€ 480.50
2-1
0948110501
ref: 2-1
FUSE(10A)
0948110501
€ 3.00
2-2
0948115501
ref: 2-2
FUSE(15A)
0948115501
€ 1.00
3
3661141F00
ref: 3
PROTECTOR,WIRING HARNESS
€ 6.00
4
0940406434
ref: 4
CLAMP(L:80 T:1.0)
0940406434
€ 3.00
5-1
0940711402
ref: 5-1
CLAMP(L:90)
0940711402
€ 2.50
5-2
0940714403
ref: 5-2
CLAMP(L:125)
0940714403
€ 2.50
5-3
0940718402
ref: 5-3
CLAMP(L:165)
0940718402
€ 2.50
5-4
0940725401
ref: 5-4
CLAMP(L:235)
0940725401
€ 4.00
6-1
3700041820
ref: 6-1
LOCK SET
3700041820
€ 544.50
6-2
3700041830
ref: 6-2
LOCK SET
€ 0.00
7
3710041F10
ref: 7
LOCK ASSY,STEERING
3710041F10
€ 171.00
8
0913908016
ref: 8
BOLT(8X20)
0913908016
€ 3.50
9
3718741F00
ref: 9
PROTECTOR,IGNITION SWITCH
€ 12.00
10
3774024A00
ref: 10
SWITCH ASSY,STOP LAMP
3774024A00
€ 20.50
11
0944306073
ref: 11
SPRING
0944306073
€ 3.00
12
3784041F00
ref: 12
SWITCH ASSY,SIDE STAND
3784041F00
€ 65.00
13
0155006203
ref: 13
01550-0620A
BOLT
0155006203
€ 2.50
14
3850041F00
ref: 14
HORN ASSY
€ 83.50
15
0155008123
ref: 15
01550-0812A
BOLT
0155008123
€ 3.50
16
3714641F10
ref: 16
KEY,BLANK
3714641F10
€ 26.00
