LUGGAGE BOX

VL800Z VOLUSIA 2003 (K3) USA (E03)

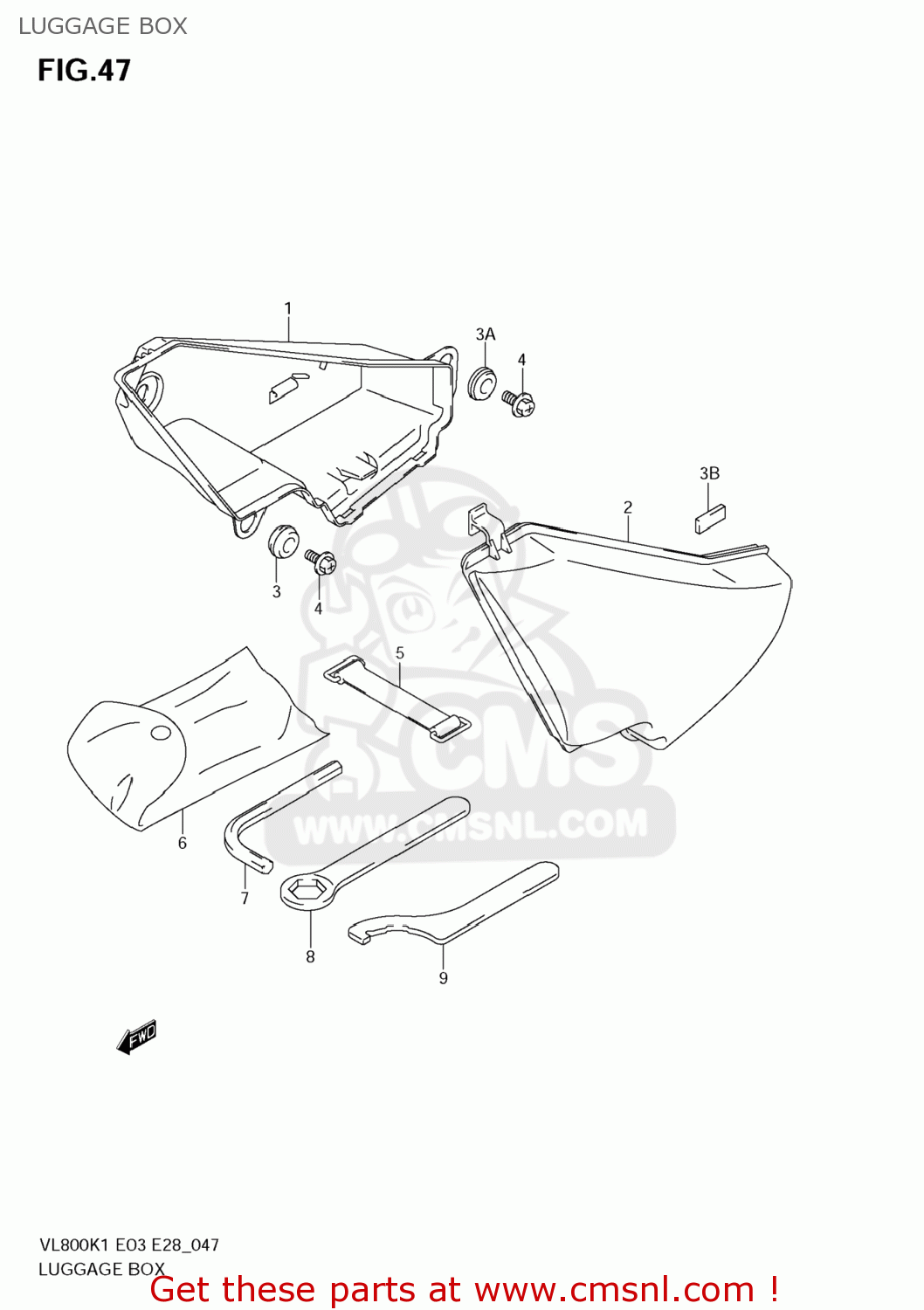

Luggage box diagram VL800Z VOLUSIA 2003 (K3) USA (E03)

LUGGAGE BOX VL800Z VOLUSIA 2003 (K3) USA (E03)
LUGGAGE BOX VL800Z VOLUSIA 2003 (K3) USA (E03)
LUGGAGE BOX VL800Z VOLUSIA 2003 (K3) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
9221141F00
ref: 1
BODY,LUGGAGE BOX
9221141F00
€ 38.50
2
9221241F00
ref: 2
92212-41F01
LID,LUGGAGE BO
€ 26.00
3
0932009045
ref: 3
CUSHION
0932009045
€ 4.00
3A
0932008028
ref: 3A
CUSHION
0932008028
€ 2.50
3B
9221341F00
ref: 3B
CUSHION,LUGGAGE BOX NO.2
9221341F00
€ 5.00
4
6316143E00
ref: 4
BOLT
6316143E00
€ 3.00
5-1
0946200001A
ref: 5-1
BAND
0946200001A
€ 8.00
5-2
0928061002
ref: 5-2
O RING(D:3.5,ID:61)
0928061002
€ 5.00
6
0980021012
ref: 6
TOOL ASSY
0980021012
€ 40.00
7-1
0981600050
ref: 7-1
SPANNER,HEXAGON(6)
0981600050
€ 5.50
7-2
0981600103
ref: 7-2
SPANNER,HEXAGON(4)
0981600103
€ 3.00
7-3
0981600139
ref: 7-3
HEXAGON SPANNER,12
€ 5.00
7-4
0981600051
ref: 7-4
HEXAGON SPANNER,8
€ 5.50
8
0981700035
ref: 8
RING SPANNER(22)
€ 6.50
9
0982200003
ref: 9
CLAMP
€ 6.00
