SEAT (VL800ZK3/ZK4/TK5/ZK5)

VL800Z VOLUSIA 2003 (K3) USA (E03)

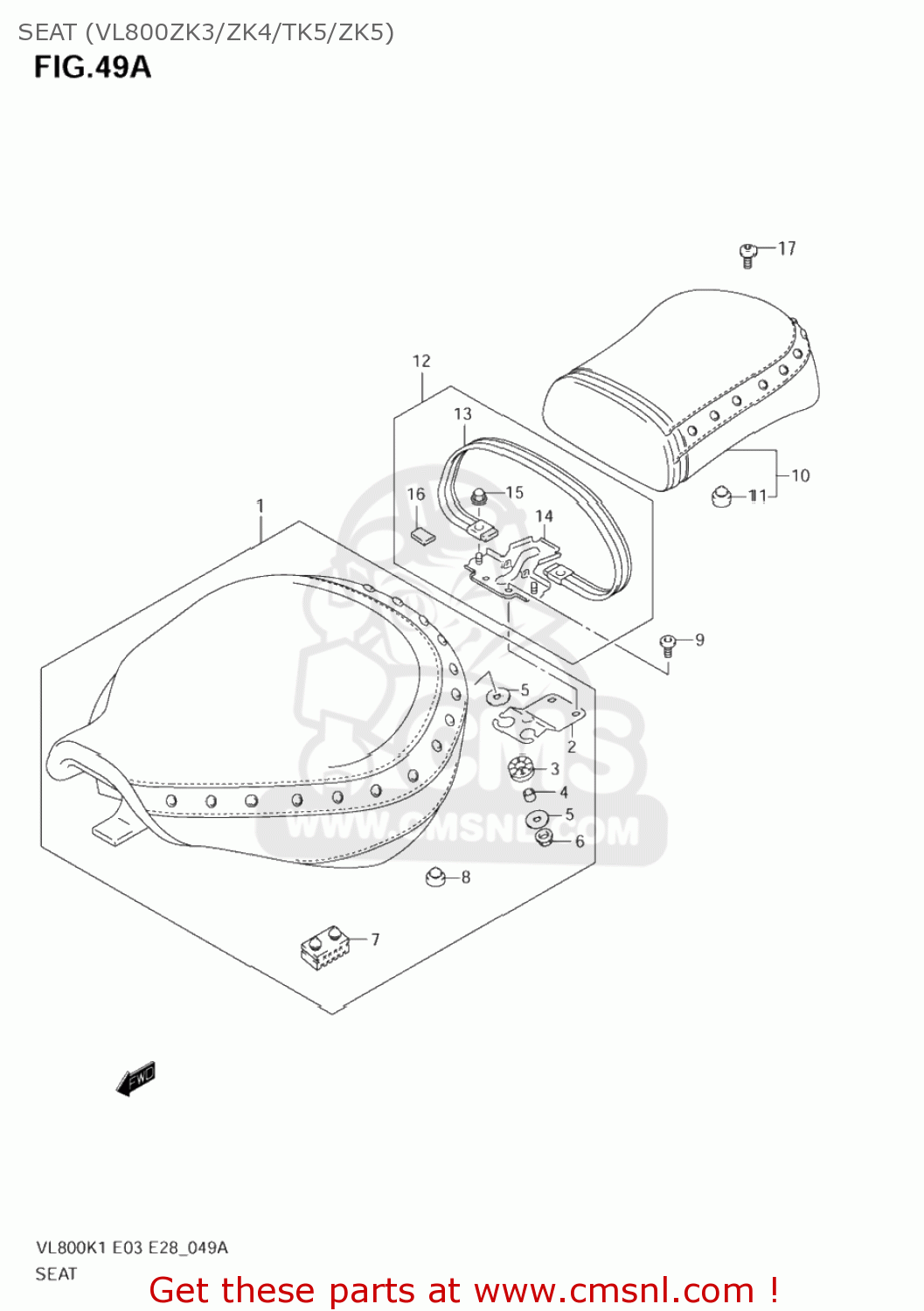

Seat (vl800zk3/zk4/tk5/zk5) diagram VL800Z VOLUSIA 2003 (K3) USA (E03)

SEAT (VL800ZK3/ZK4/TK5/ZK5) VL800Z VOLUSIA 2003 (K3) USA (E03)
SEAT (VL800ZK3/ZK4/TK5/ZK5) VL800Z VOLUSIA 2003 (K3) USA (E03)
SEAT (VL800ZK3/ZK4/TK5/ZK5) VL800Z VOLUSIA 2003 (K3) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
4510041F1048H
ref: 1-1
SEAT ASSY
€ 0.00
1-2
4510041F2048H
ref: 1-2
45100-41F21-48H
SEAT ASSY (BLACK)
€ 277.00
2
4511541F00
ref: 2
BRACKET,SEAT
4511541F00
€ 16.00
3
4514941F00
ref: 3
CUSHION
€ 6.50
4
0918007004
ref: 4
SPACER(6.5X10.5X12)
0918007004
€ 2.50
5
0916006501
ref: 5
WASHER(6.5X24X1.6)
0916006501
€ 2.00
6
0831610063
ref: 6
08316-1006B
NUT
0831610063
€ 2.50
7
4514931300
ref: 7
CUSHION,SEAT(40X20X15)
4514931300
€ 2.00
8
0932110002
ref: 8
CUSHION(11.5X22X20)
0932110002
€ 2.00
9
0910606064
ref: 9
BOLT(6X18)
0910606064
€ 6.00
10-1
4530041F0048H
ref: 10-1
SEAT ASSY,PILLION
€ 211.00
10-2
4530041F2048H
ref: 10-2
SEAT ASSY,PILLION
€ 221.00
11
0932110002
ref: 11
CUSHION(11.5X22X20)
0932110002
€ 2.00
12
4518041F0048H
ref: 12
45180-41F01-48H
BAND ASSY,SEAT
4518041F0048H
€ 61.00
13
4518141F00
ref: 13
45181-41F01
BAND SEAT
€ 25.50
14
4518541F00
ref: 14
BRACKET,SEAT BAND
4518541F00
€ 41.00
15
0831320063
ref: 15
08313-2006A
NUT
0831320063
€ 2.00
16
6154494500
ref: 16
PAD
6154494500
€ 2.00
17
0910608140
ref: 17
BOLT(8X16)
0910608140
€ 6.00
