FRONT FENDER (MODEL K2)

VL800Z VOLUSIA 2003 (K3) USA (E03)

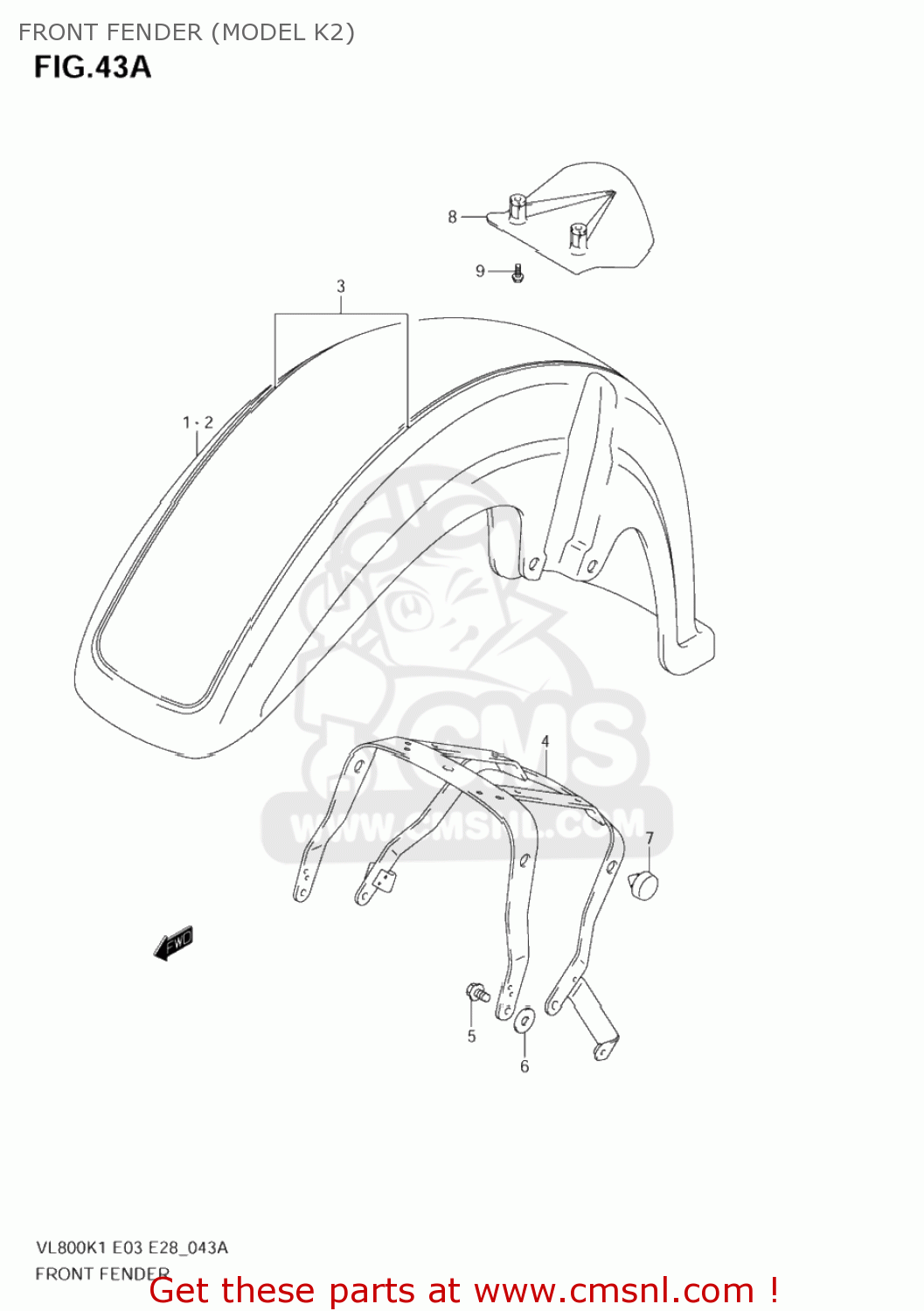

Front fender (model k2) diagram VL800Z VOLUSIA 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

5311141F0033J
ref: 1

FENDER,FR

€ 330.50

2-1

5311041F00FH9
ref: 2-1

FENDER,FR

€ 375.50

2-2

5311041F00HE6
ref: 2-2

FENDER,FR

€ 395.00

3-1

6815041F00HJ1
ref: 3-1

TAPE SET,FR FENDER

€ 81.50

3-2

6815041F00HE6
ref: 3-2

TAPE SET,FR FENDER

€ 81.50

5312041F10
ref: 4
53120-41F12

BRACE,FR FENDER

€ 75.00

0155006203
ref: 5
01550-0620A

BOLT

€ 2.50

5327641F00
ref: 6

WASHER,FR FENDER

€ 6.00

0932110007
ref: 7

CUSHION

€ 4.50

5318141F00
ref: 8

WING,FR

€ 7.00

0911106066
ref: 9

BOLT(6X16)

€ 2.50
