CAM CHAIN

VS1400GLP 1989 (K) (E22)

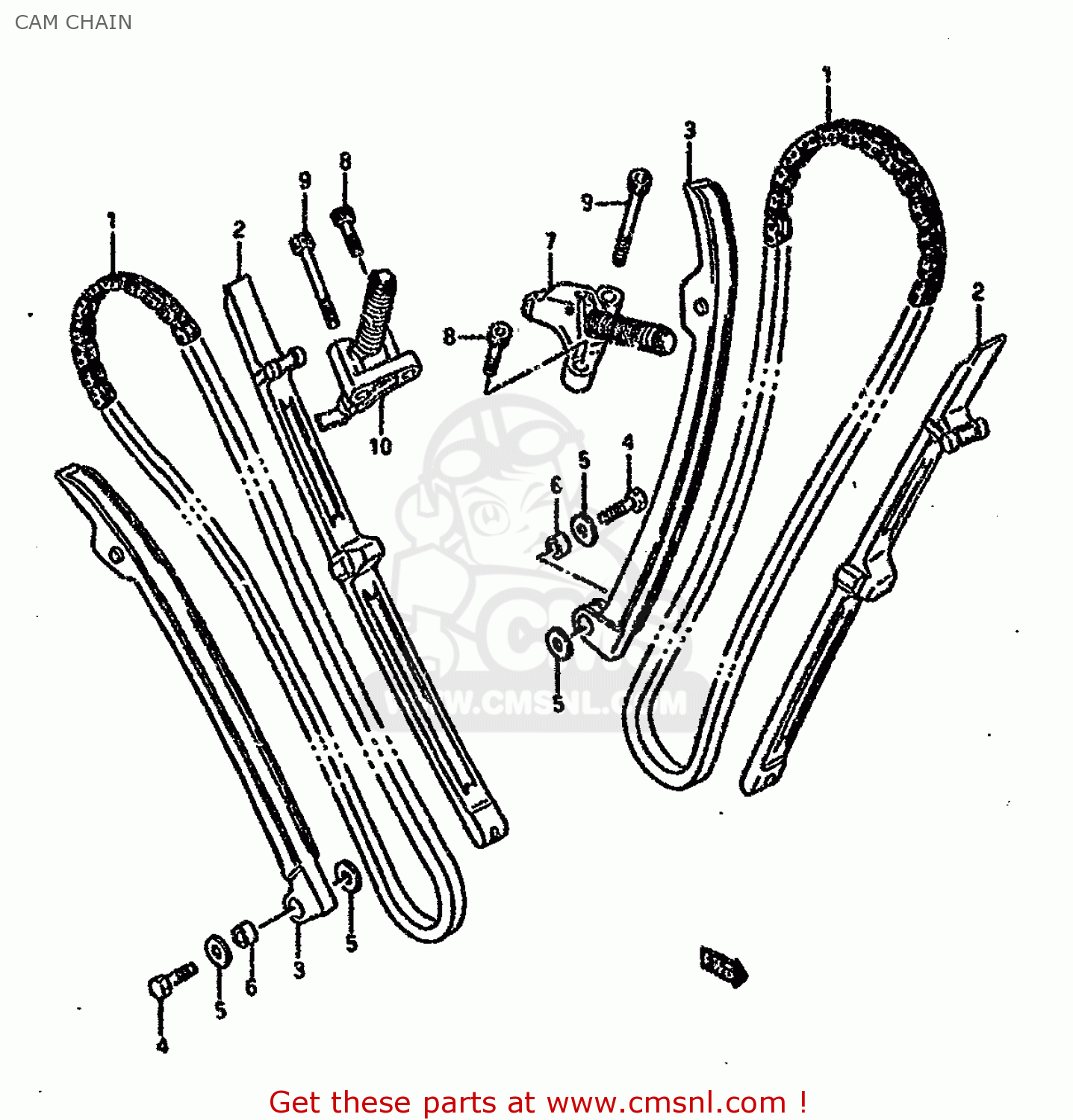

Cam chain diagram VS1400GLP 1989 (K) (E22)

prices are in EUR

ref

part #

description

quantity

1276038B00
ref: 1

CHAIN,CAMSHAFT DRIVE

€ 109.50

1277138B00
ref: 2

GUIDE,CAM CHAIN

€ 44.50

1281138B00
ref: 3

TENSIONER,CAM CHAIN

€ 43.00

0910006129
ref: 4

BOLT(6X26)

€ 2.00

0821106182
ref: 5

WASHER

€ 2.00

0918006184
ref: 6

SPACER(6X11X9)

€ 5.00

1283138A00
ref: 7

ADJUSTER ASSEMBLY,FRONT TENSIONER

€ 70.50

8-1

0711006205
ref: 8-1
MODEL H/J/K/L/M/N/P

BOLT

€ 3.00

8-2

0713006203
ref: 8-2
MODEL R/S

BOLT,CRKCASE,R

€ 3.00

9-1

0711006455
ref: 9-1
MODEL H/J/K/L/M/N/P

BOLT

€ 2.50

9-2

0713006453
ref: 9-2
MODEL R/S

BOLT

€ 2.50

1283238A00
ref: 10

ADJUSTER ASSEMBLY,REAR TENSIONER

€ 99.00
