CARBURETOR (FRONT)(MODEL S)
VS1400GLP 1989 (K) (E22)

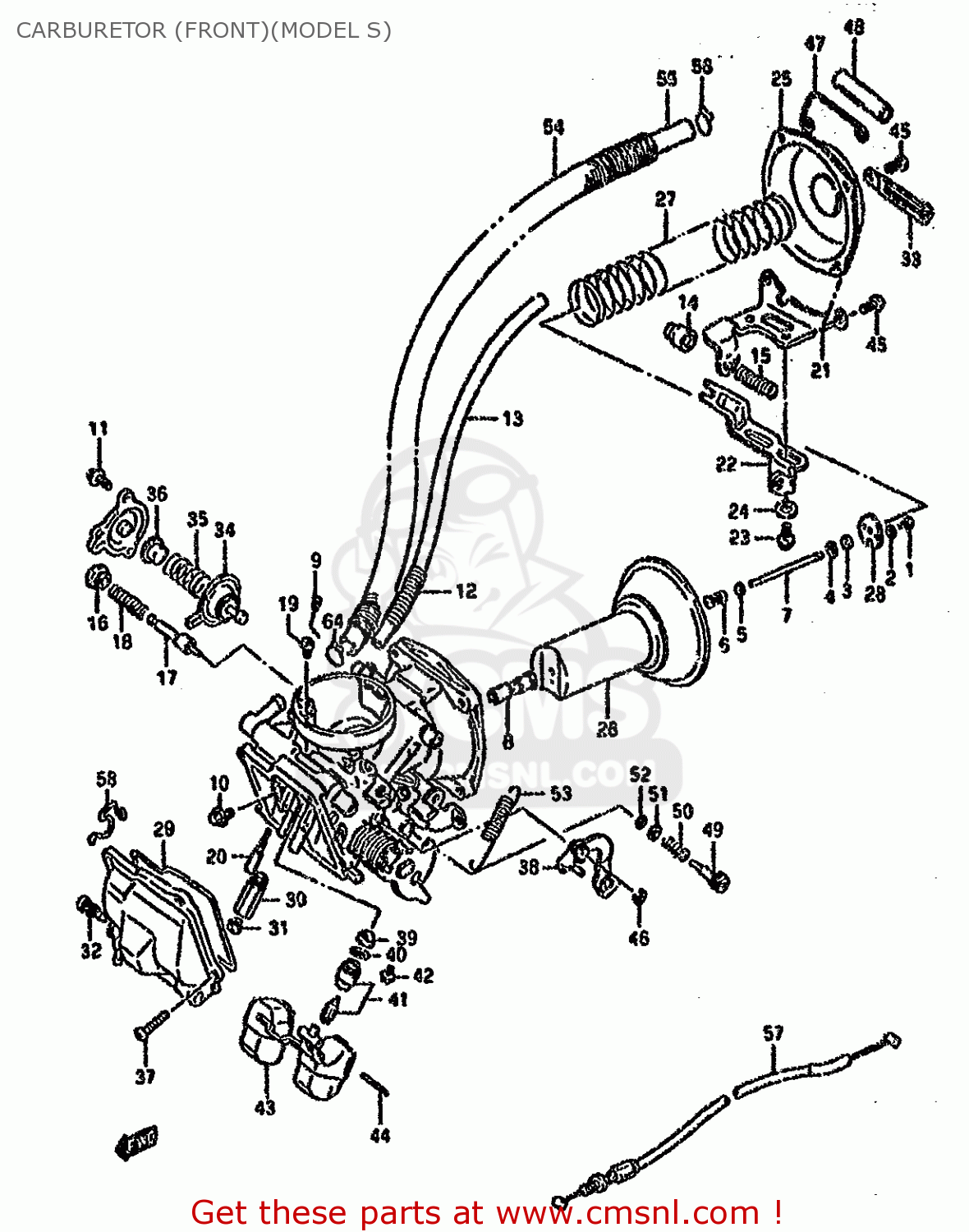

Carburetor (front)(model s) diagram VS1400GLP 1989 (K) (E22)
CARBURETOR (FRONT)(MODEL S) VS1400GLP 1989 (K) (E22)
×
prices are in EUR
ref
part #
description
quantity
0
1321038B90
ref: 0
-E22,E2A
CARBURETOR ASSY,FR
€ 776.50
0
1321038B70
ref: 0
CARBURETOR,FR.
€ 785.00
0
1321038BA0
ref: 0
E37
CARBURETOR ASSY, FRONT
€ 0.00
1
0211203063
ref: 1
SCREW
€ 2.00
2
0832121036
ref: 2
LOCK WASHER
€ 1.50
3
1338747010
ref: 3
RING
€ 7.50
4
1339410010
ref: 4
CLIP
€ 4.50
5
1338244030
ref: 5
WASHER
€ 3.50
6
1338844030
ref: 6
SPRING
€ 6.00
7
1338338B90
ref: 7
NEEDLE,JET
€ 18.00
8
0949400570
ref: 8
JET,NEEDLE(O-9)
€ 26.00
9
0949334002
ref: 9
JET,PILOT AIR(1.7)
€ 9.50
10
1360538B00
ref: 10
SCREW
€ 7.50
11
0211204106
ref: 11
SCREWM4X0.7X10
€ 1.00
12
1368938A00
ref: 12
SPRING
€ 8.50
13
1368438A20
ref: 13
L:225-185
HOSE
€ 13.00
14
1368104010
ref: 14
CAP
€ 3.00
15
1341737100
ref: 15
SPRING
€ 4.00
16
1341805A10
ref: 16
HOLDER,GUIDE
€ 12.00
17
1341138B00
ref: 17
PLUNGER
€ 23.50
18
1341743010
ref: 18
SPRING
€ 3.50
19
0949255010
ref: 19
JET,PILOT
€ 13.50
20
0949250018
ref: 20
JET,PILOT(50)
€ 17.50
21
1362838B00
ref: 21
BRACKET
€ 32.50
22
1342238B00
ref: 22
PLATE
€ 19.50
23
1360205A30
ref: 23
SCREW
€ 4.50
24
1333205A20
ref: 24
WASHER
€ 3.00
25
1350238A00
ref: 25
COVER,DIAPHRAGM
€ 34.00
26
1350038B20
ref: 26
DIAPHRAGM ASSY
€ 255.50
27
1350338B00
ref: 27
SPRING,DIAPHRAGM
€ 12.00
28
1338937400
ref: 28
PLATE
€ 5.50
29
1325138A00
ref: 29
O RING,FLOAT CHAMBER
€ 6.50
30
1338505A11
ref: 30
HOLDER,MAIN JET
€ 14.00
31
0949125014
ref: 31
JET,MAIN(125)
€ 11.50
32
1324713A00
ref: 32
SCREW,DRAIN
€ 5.50
33
0940406401
ref: 33
CLAMP L:35
€ 2.50
34
1348005A10
ref: 34
DIAPHRAGM ASSY
€ 54.50
35
1348138B40
ref: 35
SPRING
€ 5.50
36
1348237300
ref: 36
PLATE
€ 0.00
37
1360104148
ref: 37
SCREW
€ 2.50
38
1355445C00
ref: 38
-13554-38810
LEVER ASSEMBLY
€ 38.50
39
1337684110
ref: 39
FILTER
€ 6.50
40
1337444080
ref: 40
O-RING,NEEDLE VALVE
€ 6.00
41-1
1337039A00
ref: 41-1
VALVE ASSY,NEEDLE
€ 67.50
41-2
1337038E00
ref: 41-2
E37
VALVE ASSY,NEEDLE(NI)
€ 67.50
42
1360205A10
ref: 42
SCREW
€ 4.00
43
1325038B00
ref: 43
FLOAT
€ 32.00
44
1325420010
ref: 44
PIN,FLOAT
€ 3.00
45
0211205126
ref: 45
SCREW 5X12
€ 1.50
46
1329849000
ref: 46
E-RING
€ 2.00
47
1367138A00
ref: 47
CLIP
€ 10.50
48
1368438A00
ref: 48
HOSE
€ 18.00
49
1327947070
ref: 49
SCREW,PILOT
€ 11.50
50
1326847070
ref: 50
SPRING
€ 5.00
51
1329129900
ref: 51
WASHER
€ 2.00
52
1329529900
ref: 52
O RING,PILOT AIR SCREW
€ 4.00
53
1357338B30
ref: 53
SPRING
€ 7.50
54
1368438A20
ref: 54
HOSE
€ 13.00
55
0935465113600
ref: 55
L:600-550
HOSE(6.5X11.5X600)
€ 26.00
56
1367138B00
ref: 56
CLIP
€ 3.00
57
1364138B02
ref: 57
CABLE,IDLE SYNCRO
€ 17.50
58
1369224A00
ref: 58
CLAMP
€ 5.00
48
1368438A00
ref: 48
HOSE
€ 18.00
49-1
1327947070
ref: 49-1
MODEL H/J
SCREW,PILOT
€ 11.50
49-2
1327947070
ref: 49-2
MODEL K/L/M/N/P/R
SCREW,PILOT
€ 11.50
50
1326847070
ref: 50
SPRING
€ 5.00
51
1329129900
ref: 51
WASHER
€ 2.00
52
1329529900
ref: 52
O RING,PILOT AIR SCREW
€ 4.00
53
1357338130
ref: 53
FOR 13210-38832,3882
SPRING
€ 0.00
54-1
1368438B00
ref: 54-1
MODEL H/J/K/L
HOSE
€ 21.50
54-2
1368438A20
ref: 54-2
MODEL M/N/P/R
HOSE
€ 13.00
55
0935465113600
ref: 55
L:600-550
HOSE(6.5X11.5X600)
€ 26.00
56
1367138B00
ref: 56
CLIP
€ 3.00
57
1364138B01
ref: 57
CABLE,IDLE SYNCRO
€ 17.50
58
1369224A00
ref: 58
CLAMP
€ 5.00
