FUEL COCK (MODEL S)
VS1400GLP 1989 (K) (E22)

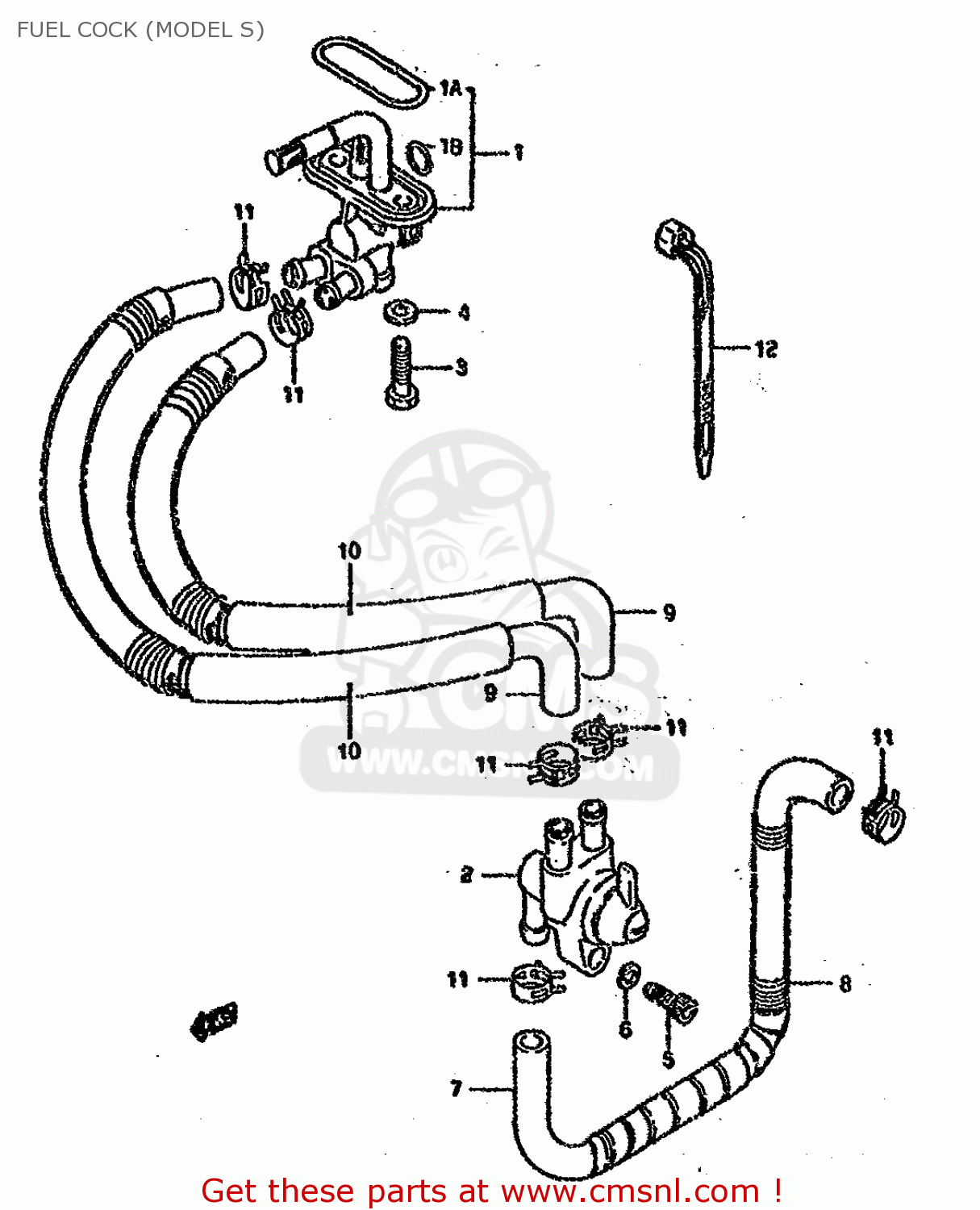

Fuel cock (model s) diagram VS1400GLP 1989 (K) (E22)
FUEL COCK (MODEL S) VS1400GLP 1989 (K) (E22)
×
prices are in EUR
ref
part #
description
quantity
1
4430038B02
ref: 1
COCK ASSY,FUEL
€ 142.00
1A
4434828070
ref: 1A
O RING,FUEL COCK
€ 4.50
1B
4435312C00
ref: 1B
O-RING,LEVER
€ 7.50
2
4430038B12
ref: 2
COCK ASSEMBLY,FUEL
€ 171.50
3
0912806006
ref: 3
BOLT(6X20)
€ 2.00
4
0916806026
ref: 4
GASKET(6.4X11.5X0.8) (NAS)
€ 3.50
5
0713005123
ref: 5
BOLT
€ 2.50
6
0832101053
ref: 6
LOCK,WASHER
€ 3.00
7
4442038B01
ref: 7
HOSE COMP,FUEL PUMP &
€ 21.00
8
0944014026
ref: 8
SPRING
€ 18.00
9
4443038B03
ref: 9
HOSE,FUEL
€ 25.50
10
4431117E01
ref: 10
TUBE,FUEL HOSE
€ 17.50
11
0940111407
ref: 11
CLIP
€ 2.50
12
0940714403
ref: 12
CLAMP(L:125)
€ 2.50
12-2
4431138B02
ref: 12-2
MODEL K/L/M/N/P/R
TUBE, INTERFERENCE HOSE
€ 17.50
13
0940112406
ref: 13
CLAMP
€ 2.50
14
0940714403
ref: 14
CLAMP(L:125)
€ 2.50
