PILLION RIDER HANDLE (MODEL S)
VS1400GLP 1989 (K) (E22)

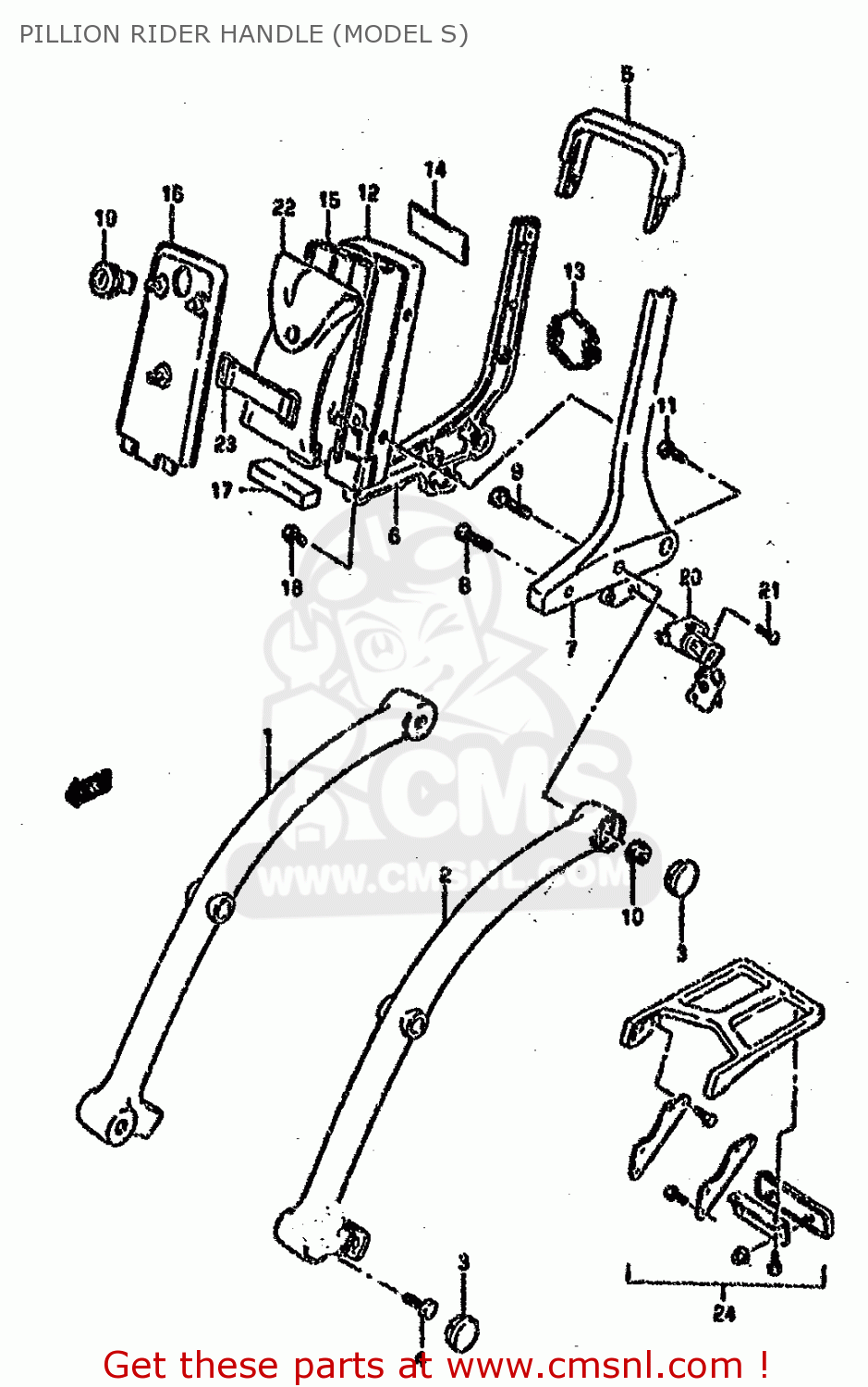

Pillion rider handle (model s) diagram VS1400GLP 1989 (K) (E22)
PILLION RIDER HANDLE (MODEL S) VS1400GLP 1989 (K) (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
4161038B00
ref: 1-1
GRIP COMP,FRAME HANDLE
€ 292.50
1-2
4161038B10
ref: 1-2
E34,E37
GRIP,FRAME HANDLE,R
€ 292.50
2-1
4162038B00
ref: 2-1
GRIP COMP,FRAME HANDLE
€ 296.00
2-2
4162038B10
ref: 2-2
E34,E37
GRIP,FRAME HANDLE,L
€ 296.00
3
9567324A00
ref: 3
CAP,PIPE CO-RIDER GRIP
€ 5.00
4
0158008203
ref: 4
BOLT
€ 3.50
5
4621138B01
ref: 5
HANDLE,PILLION RIDER UPR
€ 69.00
6
4621238B10
ref: 6
HANDLE,PILLION RIDER,RIGHT
€ 158.50
7
4621338B10
ref: 7
HANDLE,PILLION RIDER,LEFT
€ 158.00
8
0158006403
ref: 8
BOLT, FRONT
€ 2.00
9
0158008453
ref: 9
BOLT
€ 4.00
10
0831610083
ref: 10
NUT
€ 3.00
11
0158006203
ref: 11
BOLT, REAR
€ 2.50
12
4743038B1022S
ref: 12
HOLDER,TOOL ,R
€ 60.50
13
6826138A20
ref: 13
EMBLEM
€ 31.00
14
6826238A00
ref: 14
TAPE,TOOL BAG PROTECTOR
€ 3.50
15
4743738B00
ref: 15
MOLDING,TOOL HOLDER RR
€ 5.00
16
4744138B00
ref: 16
HOLDER,TOOL FR
€ 15.00
17
4743838B00
ref: 17
CUSHION,TOOL BACK
€ 19.50
18
0157006123
ref: 18
BOLT
€ 1.50
19
9570024831
ref: 19
LOCK SET,TOOL HOLDER
€ 79.50
20
9570038821
ref: 20
LOCK SET,HELMET
€ 54.00
21
0211205127
ref: 21
SCREW
€ 2.50
22
0980021014
ref: 22
TOOL ASSY
€ 92.50
23
0946200008
ref: 23
BAND
€ 4.50
24
4630038821
ref: 24
OPT
CARRIER ASSEMBLY,REAR
€ 240.50
20-2
4743038B0122S
ref: 20-2
MODEL H/J/K/L/M/N/ E
HOLDER,TOOL
€ 60.50
21-1
6826138B00
ref: 21-1
MODEL H
EMBLEM,TOOL HOLDER,REAR
€ 31.50
21-2
6826138A20
ref: 21-2
MODEL J/K/L/M/N/P/R
EMBLEM
€ 31.00
22
4743738B00
ref: 22
MOLDING,TOOL HOLDER RR
€ 5.00
23
4744138B00
ref: 23
HOLDER,TOOL FR
€ 15.00
24
4743838B00
ref: 24
CUSHION,TOOL BACK
€ 19.50
25
0150006127
ref: 25
BOLT
€ 2.00
26
0832101067
ref: 26
WASHER,LOCK
€ 2.50
27
9570024831
ref: 27
LOCK SET,TOOL HOLDER
€ 79.50
28
1196782000
ref: 28
E2
LABEL,ASBESTOS WARNING
€ 2.00
29-1
9570038831
ref: 29-1
MODEL H/J/L/M
LOCK SET,HELMET
€ 54.00
29-2
9570038821
ref: 29-2
MODEL N/P/R
LOCK SET,HELMET
€ 54.00
30
0211205127
ref: 30
SCREW
€ 2.50
31
0980021018
ref: 31
TOOL ASSY
€ 107.00
32
0946200008
ref: 32
BAND
€ 4.50
33
4630038821
ref: 33
E1, EOP
CARRIER ASSEMBLY,REAR
€ 240.50
