WIRING HARNESS (MODEL S)
VS1400GLP 1989 (K) (E22)

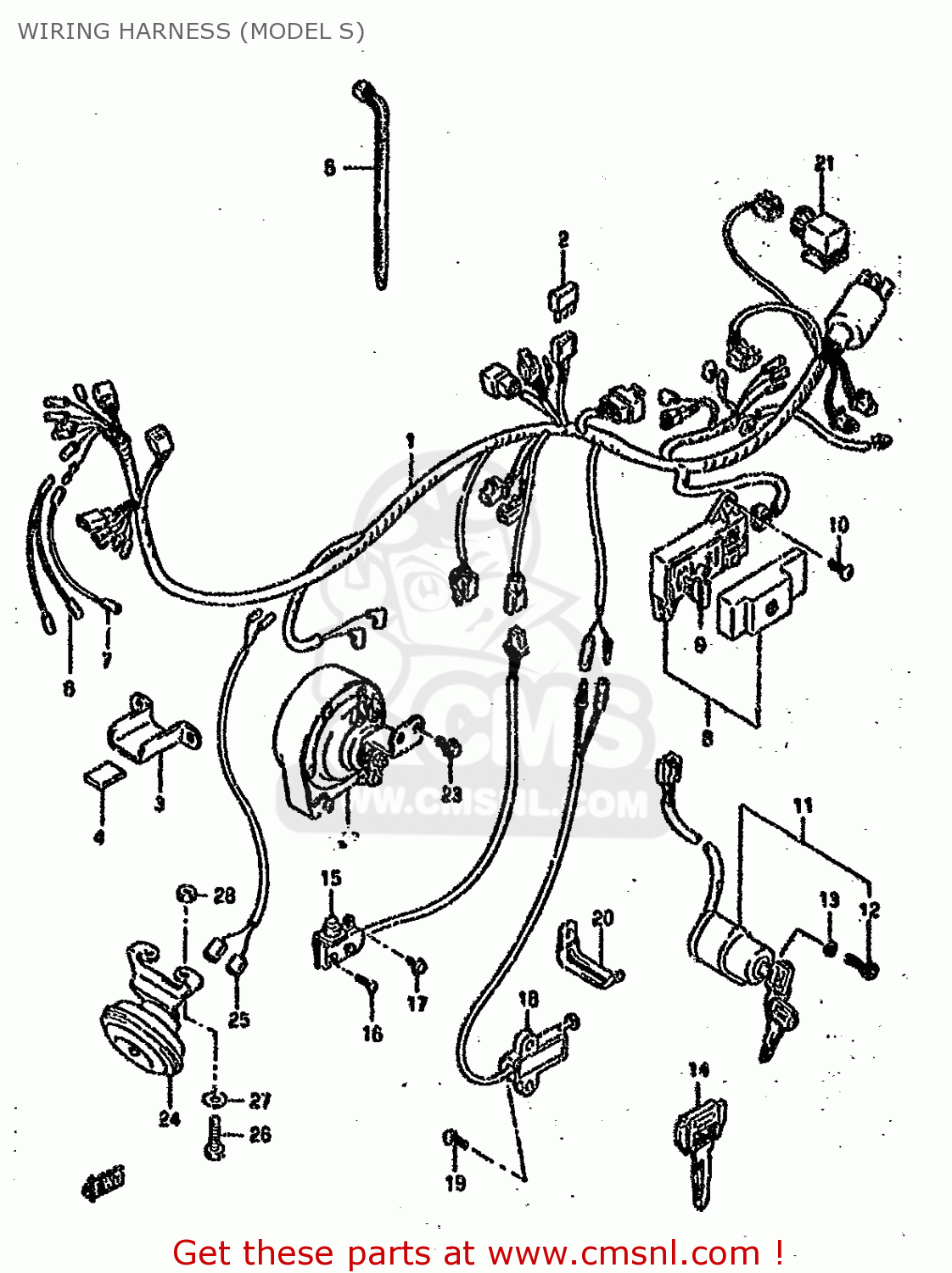

Wiring harness (model s) diagram VS1400GLP 1989 (K) (E22)
WIRING HARNESS (MODEL S) VS1400GLP 1989 (K) (E22)
×
prices are in EUR
ref
part #
description
quantity
1
3661039B01
ref: 1
HARNESS,WIRING
€ 365.00
2
3661138A00
ref: 2
DIODE(STANLEY DE8804)
€ 13.00
3
3661938B00
ref: 3
GUIDE,WIRING HARNESS
€ 6.50
4
3692038B00
ref: 4
CUSHION
€ 4.50
5-1
0940714403
ref: 5-1
CLAMP(L:125)
€ 2.50
5-2
0940714407
ref: 5-2
CLAMP(L:145)
€ 4.00
5-3
0940718403
ref: 5-3
CLAMP L:165
€ 2.50
6
3685238B10
ref: 6
WIRE,CLUTCH SW CONNECTOR
€ 5.50
7-1
3685238B10
ref: 7-1
WIRE,CLUTCH SW CONNECTOR
€ 5.50
7-2
3685339B00
ref: 7-2
E24
WIRE, LIGHTING SWITCH
€ 0.00
8
3674019C00
ref: 8
BOX ASSY,FUSE
€ 88.00
9-1
0948125101
ref: 9-1
FUSE (25A)
€ 2.50
9-2
0948110101
ref: 9-2
FUSE(10A)
€ 2.50
10
0214206163
ref: 10
SCREW
€ 2.50
11
3711038B02
ref: 11
SWITCH ASSEMBLY,IGNITION
€ 71.50
12
0713005167
ref: 12
BOLT
€ 2.50
13
0832101057
ref: 13
WASHER,LOCK
€ 2.00
14-1
3714603A00
ref: 14-1
OPT
KEY,BLANK(TYPE:C)
€ 6.00
14-2
3714603A10
ref: 14-2
OPT
KEY,BLANK(TYPE:D)
€ 6.00
14-3
3714603A20
ref: 14-3
OPT
KEY,BLANK(TYPE:E)
€ 6.00
14-4
3714603A30
ref: 14-4
OPT
KEY,BLANK(TYPE:F)
€ 6.00
15
3774038B00
ref: 15
SWITCH ASSY,STOP LAMP
€ 79.00
16
0211204163
ref: 16
SCREW 4X16
€ 1.00
17
0214204063
ref: 17
SCREW
€ 1.50
18
3784039A22
ref: 18
SWITCH ASSY,SIDE STAND
€ 87.50
19
0211276203
ref: 19
SCREW
€ 2.50
20
0940406206
ref: 20
CLAMP(L:45)
€ 2.50
21
3874024X50
ref: 21
RELAY ASSY
€ 37.50
22
3850038B01
ref: 22
HORN ASSY
€ 112.50
23
0155006123
ref: 23
BOLT
€ 2.50
24
3850038B10
ref: 24
E4,E22,E34,E37
HORN ASSY
€ 83.00
25
3859538B10
ref: 25
WIRE,HORN LEAD
€ 8.00
26
0155006303
ref: 26
E4,E22,E34,E37
BOLT
€ 2.50
27
0832201063
ref: 27
E4,E22,E34,E37
WASHER
€ 2.00
28
0831000063
ref: 28
E4,E22,E34,E37
NUT 6MM
€ 2.00
19
0215204067
ref: 19
SCREW
€ 1.50
20-1
3784039A11
ref: 20-1
MODEL H
SWITCH ASSEMBLY,SIDE STAND
€ 87.50
20-2
3784039A20
ref: 20-2
MODEL J
SWITCH ASSEMBLY,SIDE STAND
€ 87.50
20-3
3784039A21
ref: 20-3
MODEL K/L/M/N/P/R
SWITCH ASSEMBLY,SIDE STAND
€ 87.50
21-1
0211206205
ref: 21-1
MODEL H/J/K/L/M
SCREW
€ 2.00
21-2
0211276205
ref: 21-2
MODEL N/P/R
SCREW
€ 2.50
22
0832121064
ref: 22
WASHER,LOCK
€ 2.00
23
0832221064
ref: 23
WASHER
€ 2.00
24
0940406206
ref: 24
CLAMP(L:45)
€ 2.50
24A
0940406401
ref: 24A
MODEL J/K/L/M/N/P/R
CLAMP L:35
€ 2.50
25
3874038B00
ref: 25
RELAY ASSY
€ 37.50
26
3850038B01
ref: 26
E1,E2,E21,E22,E24
HORN ASSY
€ 112.50
27-1
0151706125
ref: 27-1
MODEL J/K/L/M/N/P
BOLT 6X12
€ 2.50
27-2
0155006123
ref: 27-2
MODEL R
BOLT
€ 2.50
28
3850038B10
ref: 28
E4,E15,E16,E17,E18,E
HORN ASSY
€ 83.00
29
3859538B10
ref: 29
E4,E15,E16,E17,E18,E
WIRE,HORN LEAD
€ 8.00
