REAR FENDER (MODEL S)
VS1400GLP 1989 (K) (E22)

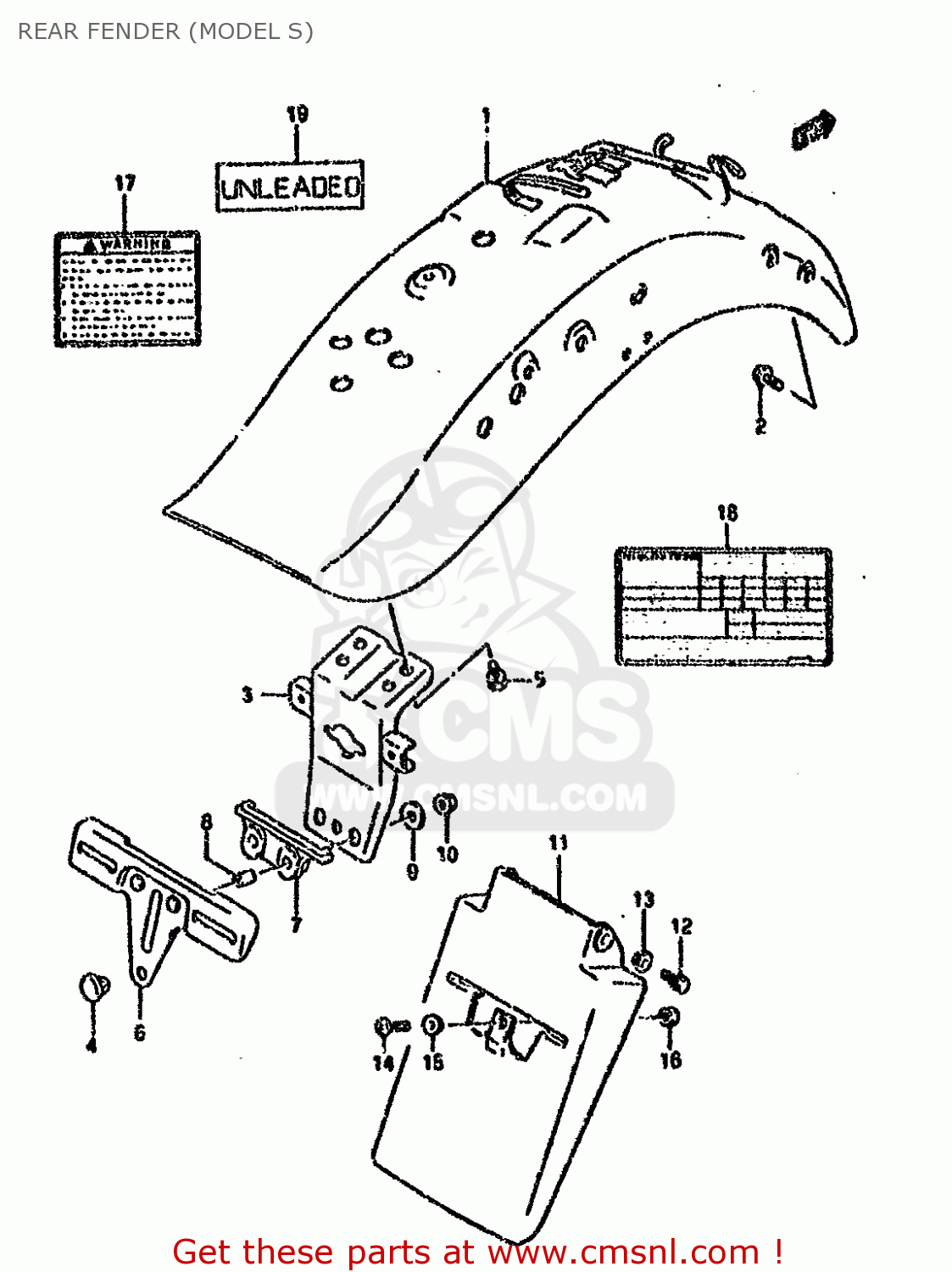

Rear fender (model s) diagram VS1400GLP 1989 (K) (E22)
REAR FENDER (MODEL S) VS1400GLP 1989 (K) (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
6311038B101ZV
ref: 1-1
FENDER, REAR (GREEN)
€ 253.00
1-2
6311038B1020F
ref: 1-2
FENDER,RR
€ 261.00
1-3
6311038B1033J
ref: 1-3
FENDER, REAR (BLACK)
€ 223.50
1-4
6311038B201ZV
ref: 1-4
E22
FENDER,RR
€ 0.00
1-5
6311038B2020F
ref: 1-5
E22
FENDER,RR
€ 261.00
1-6
6311038B2033J
ref: 1-6
E22
FENDER,RR
€ 347.50
2
0155008203
ref: 2
BOLT
€ 3.00
3
6346038B10
ref: 3
BRACKET,LICENSE LAMP
€ 56.50
4
0932108005
ref: 4
CUSHION
€ 2.50
5
0157006123
ref: 5
BOLT
€ 1.50
6
6346338B00
ref: 6
PLATE,REAR LICENSE
€ 27.50
7
6346438B00
ref: 7
CUSHION,RR LICENSE PLATE
€ 14.50
8
0918005028
ref: 8
SPACER (5.5X7.5X14.3)
€ 4.00
9
0916005501
ref: 9
WASHER(5.5X20X1.2)
€ 2.00
10
0831620053
ref: 10
NUT
€ 2.00
11
6331138B00
ref: 11
EXTENSION,RR FENDER
€ 26.50
12
0157006163
ref: 12
BOLT
€ 2.50
13
0916906045
ref: 13
WASHER
€ 2.50
14
0211206123
ref: 14
SCREW
€ 1.50
15
0916906033
ref: 15
WASHER
€ 1.50
16
0831921068
ref: 16
NUT 6MM
€ 2.00
17-1
6831940C00
ref: 17-1
E2,E22,E24
LABEL
€ 8.00
17-2
6831940C20
ref: 17-2
E22
LABEL, WARNING SAFETY
€ 8.00
17-3
6831940C30
ref: 17-3
E4,E34,E37
LABEL, WARNING SAFETY
€ 8.50
17-4
6831940C40
ref: 17-4
E34,E37
LABEL, WARNING SAFETY
€ 8.00
17-5
6831940C51
ref: 17-5
E34,E37
LABEL
€ 8.00
18-1
6833238B30
ref: 18-1
E2,E4,E24
LABEL (TIRE AIR PRESSURE)
€ 4.50
18-2
6833238B40
ref: 18-2
E22,E34,E37
LABEL,TIRE AIR PRESSURE
€ 4.50
19-1
8693273060
ref: 19-1
E24
LABEL,FUEL CAUTION
€ 4.00
19-2
6862317D00
ref: 19-2
E2
LABEL,CAUTION
€ 4.00
20-1
9901138B5801U
ref: 20-1
E2,E4,E22,E24,E34,E3
O.M. VS1400GLS
€ 16.50
20-2
9901138B58009
ref: 20-2
E22,E34
O.M. VS1400GLS
€ 16.50
20-3
9901138B58029
ref: 20-3
E34 DRAWING NOT SHOW
MANUAL, OWNERS
€ 27.50
3
0832121086
ref: 3
MODEL H/J
WASHER,LOCK,8.
€ 2.50
4
0832211086
ref: 4
MODEL H/J
WASHER 8MM
€ 1.50
5-1
6346038B10
ref: 5-1
E2,E4,E15,E16,E17,E1
BRACKET,LICENSE LAMP
€ 56.50
5-2
6346038B00
ref: 5-2
MODEL J/L/N/P E1
BRACKET,RR COMBINATION LAMP
€ 74.00
6
0932108005
ref: 6
CUSHION
€ 2.50
7-1
0110706126
ref: 7-1
MODEL H/J/K/L
BOLT
€ 2.00
7-2
0113406126
ref: 7-2
MODEL M/N/P
BOLT
€ 1.50
7-3
0157006123
ref: 7-3
MODEL R
BOLT
€ 1.50
8
0832121066
ref: 8
MODEL H/J/K/L
WASHER,LOCK
€ 2.00
9
6346338B00
ref: 9
PLATE,REAR LICENSE
€ 27.50
10
6346438B00
ref: 10
CUSHION,RR LICENSE PLATE
€ 14.50
11
0918005028
ref: 11
SPACER (5.5X7.5X14.3)
€ 4.00
12
0916005041
ref: 12
WASHER
€ 2.00
13-1
0831626056
ref: 13-1
MODEL H/J/K/L/M/N/P
NUT
€ 2.00
13-2
0831620053
ref: 13-2
MODEL R
NUT
€ 2.00
14-1
6331138B00
ref: 14-1
E16,E17,E22
EXTENSION,RR FENDER
€ 26.50
14-2
6331138B10
ref: 14-2
E15,E18
EXTENSION, REAR FENDER
€ 35.00
15
0110706167
ref: 15
E15,E16,E17,E18,E22
BOLT
€ 3.00
16
0832131067
ref: 16
E15,E16,E17,E18,E22
WASHER,LOCK
€ 2.50
17
0916906051
ref: 17
E15,E16,E17,E18,E22
WASHER
€ 2.50
18
0211206128
ref: 18
E15,16,E17,E18,E22
SCREW 6X12
€ 2.00
19
0916906033
ref: 19
E15,E16,E17,E18,E22
WASHER
€ 1.50
20
0831921068
ref: 20
E15,E16,E17,E18,E22
NUT 6MM
€ 2.00
21
6331238B00
ref: 21
E15,E18
PLATE, MUD FLAP
€ 9.50
22
6333243520
ref: 22
E15,E18
MUD FLAP, REAR FENDER
€ 12.50
23
0214205124
ref: 23
E15,E18
SCREW, FRONT & REAR
€ 1.50
24
0916005031
ref: 24
E15,E18
WASHER
€ 1.50
25
0918005015
ref: 25
E15,E18
SPACER (5.5X8X4)
€ 3.00
26
0831921055
ref: 26
E15,E18
NUT 8MM
€ 1.50
27-1
6831940C00
ref: 27-1
LABEL
€ 8.00
27-2
6831940C20
ref: 27-2
E22,E39
LABEL, WARNING SAFETY
€ 8.00
27-3
6831940C30
ref: 27-3
E4,E21
LABEL, WARNING SAFETY
€ 8.50
27-4
6831940C40
ref: 27-4
E34
LABEL, WARNING SAFETY
€ 8.00
28-1
6833238B30
ref: 28-1
DRAWING NOT SHOWN
LABEL (TIRE AIR PRESSURE)
€ 4.50
28-2
6833238B40
ref: 28-2
E22, DRAWING NOT SHO
LABEL,TIRE AIR PRESSURE
€ 4.50
29-1
8693273060
ref: 29-1
E24
LABEL,FUEL CAUTION
€ 4.00
29-2
6862317D00
ref: 29-2
E2
LABEL,CAUTION
€ 4.00
30
1196782000
ref: 30
E2
LABEL,ASBESTOS WARNING
€ 2.00
31-1
9901138B5001U
ref: 31-1
MODEL H
MANUAL, OWNERS
€ 16.50
31-2
9901138B5101U
ref: 31-2
MODEL J
MANUAL, OWNERS
€ 16.50
31-3
9901138B5201U
ref: 31-3
MODEL K
O.M. VS1400GLP
€ 16.50
31-4
9901138B5301U
ref: 31-4
MODEL L
MANUAL, OWNERS
€ 0.00
31-5
9901138B5401U
ref: 31-5
MODEL M
O.M. VS1400GLP
€ 16.50
31-6
9901138B54009
ref: 31-6
MODEL M E17,E34
MANUAL, OWNERS
€ 0.00
31-7
9901138B5501U
ref: 31-7
MODEL N
O.M. VS1400GLP
€ 16.50
31-8
9901138B55009
ref: 31-8
MODEL N E17,E34
MANUAL, OWNERS
€ 0.00
31-9
9901138B5601U
ref: 31-9
MODEL P
O.M. VS1400GLP
€ 16.50
31-10
9901138B56009
ref: 31-10
MODEL P E17,E34
MANUAL, OWNERS
€ 0.00
31-11
9901138B5701U
ref: 31-11
MODEL R DRAWING NOT
O.M. VS1400GLP
€ 16.50
