SEAT (MODEL S)
VS1400GLP 1989 (K) (E22)

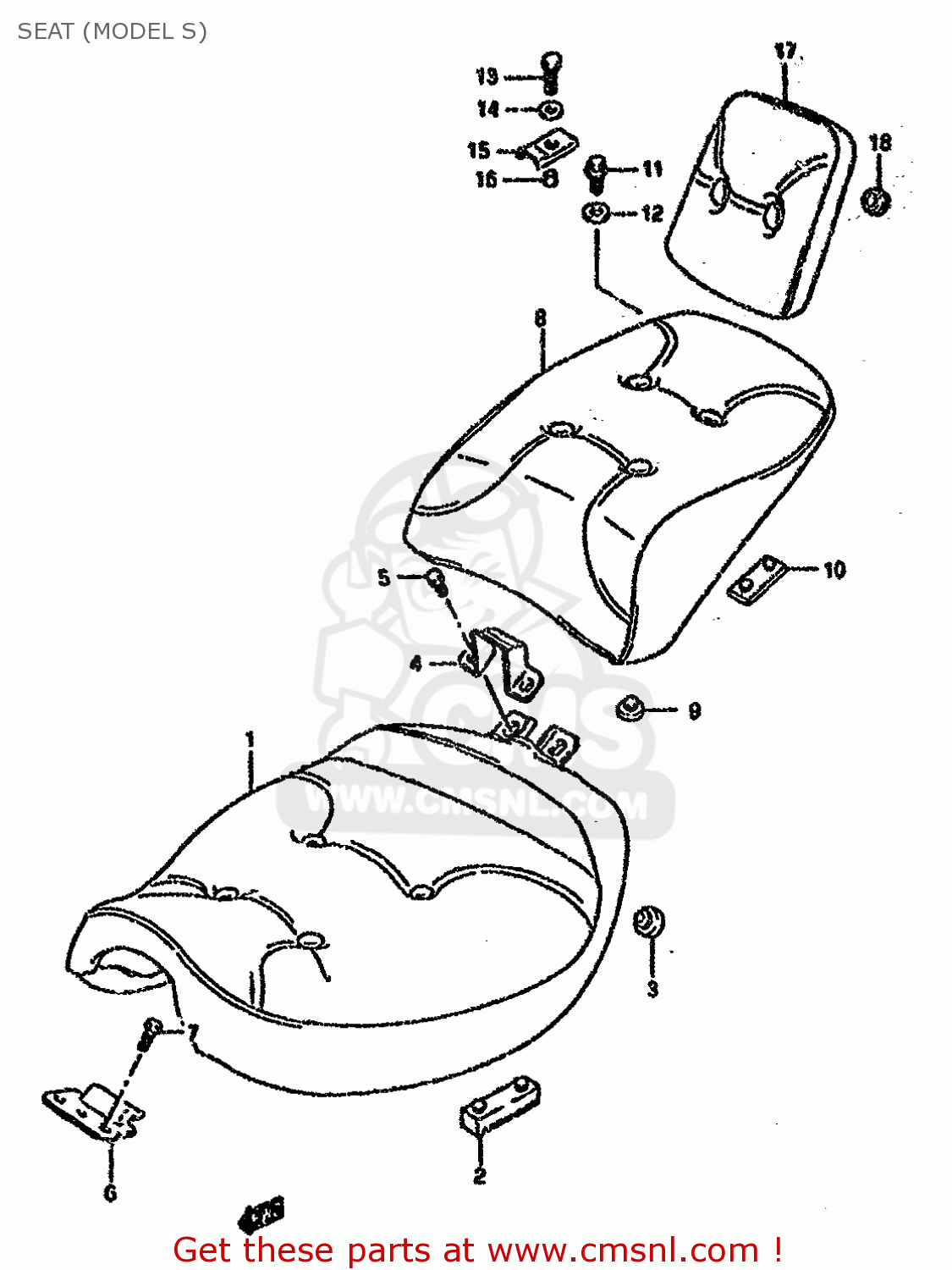

Seat (model s) diagram VS1400GLP 1989 (K) (E22)
SEAT (MODEL S) VS1400GLP 1989 (K) (E22)
×
prices are in EUR
ref
part #
description
quantity
1
4510038B039HZ
ref: 1
SEAT SET
€ 555.50
2
4514838B01
ref: 2
CUSHION,SEAT
€ 8.50
3
0932110012
ref: 3
CUSHION
€ 3.00
4
4511938B00
ref: 4
BRACKET,PILLION SEAT FR
€ 5.50
5
0157006203
ref: 5
BOLT
€ 2.50
6
4521038B00
ref: 6
BRACKET,SEAT FR
€ 12.00
7
0157006163
ref: 7
BOLT
€ 2.50
8
4530038B009HZ
ref: 8
SEAT SET,PILLION
€ 374.50
9
0932910001
ref: 9
CUSHION
€ 2.50
10
4514938B00
ref: 10
CUSHION,PILLION SEAT RR
€ 6.50
11
0911106057
ref: 11
BOLT(6X17.5)
€ 4.50
12
0916009007
ref: 12
WASHER (9.5X20X1)
€ 2.00
13
0150006167
ref: 13
E22
BOLT
€ 3.00
14
0916006084
ref: 14
E22
WASHER(6.5X18X1.6)
€ 2.00
15
4511838B00
ref: 15
E22
PLATE,PILLION SEAT RR
€ 13.50
16
0918006135
ref: 16
E22
SPACER(6.5X8.5X5.8)
€ 2.00
17
4535038B009HZ
ref: 17
PAD ASSY,SEAT
€ 224.50
18
0932009026
ref: 18
CUSHION
€ 4.00
15
0911106057
ref: 15
BOLT(6X17.5)
€ 4.50
16-1
0916009009
ref: 16-1
MODEL H/J/K/L/M/N/P
WASHER (9X19X1)
€ 2.50
16-2
0916009007
ref: 16-2
MODEL R
WASHER (9.5X20X1)
€ 2.00
17
0120406167
ref: 17
E22
BOLT
€ 2.00
18
0916006084
ref: 18
E22
WASHER(6.5X18X1.6)
€ 2.00
19
4511838B00
ref: 19
E22
PLATE,PILLION SEAT RR
€ 13.50
20
0918006135
ref: 20
E22
SPACER(6.5X8.5X5.8)
€ 2.00
21
4535038B009HZ
ref: 21
PAD ASSY,SEAT
€ 224.50
22
0932009026
ref: 22
CUSHION
€ 4.00
23-1
4518038B005AB
ref: 23-1
MODEL H E16
BAND, SEAT GRIP (BLACK)
€ 0.00
23-2
4518038B015AB
ref: 23-2
MODEL J E16
BAND, SEAT GRIP (BLACK)
€ 0.00
24
0150006127
ref: 24
E16
BOLT
€ 2.00
25
0832101067
ref: 25
E16
WASHER,LOCK
€ 2.50
26
0832201067
ref: 26
E16
WASHER
€ 2.00
