REAR COMBINATION LAMP (MODEL S)
VS1400GLP 1989 (K) (E22)

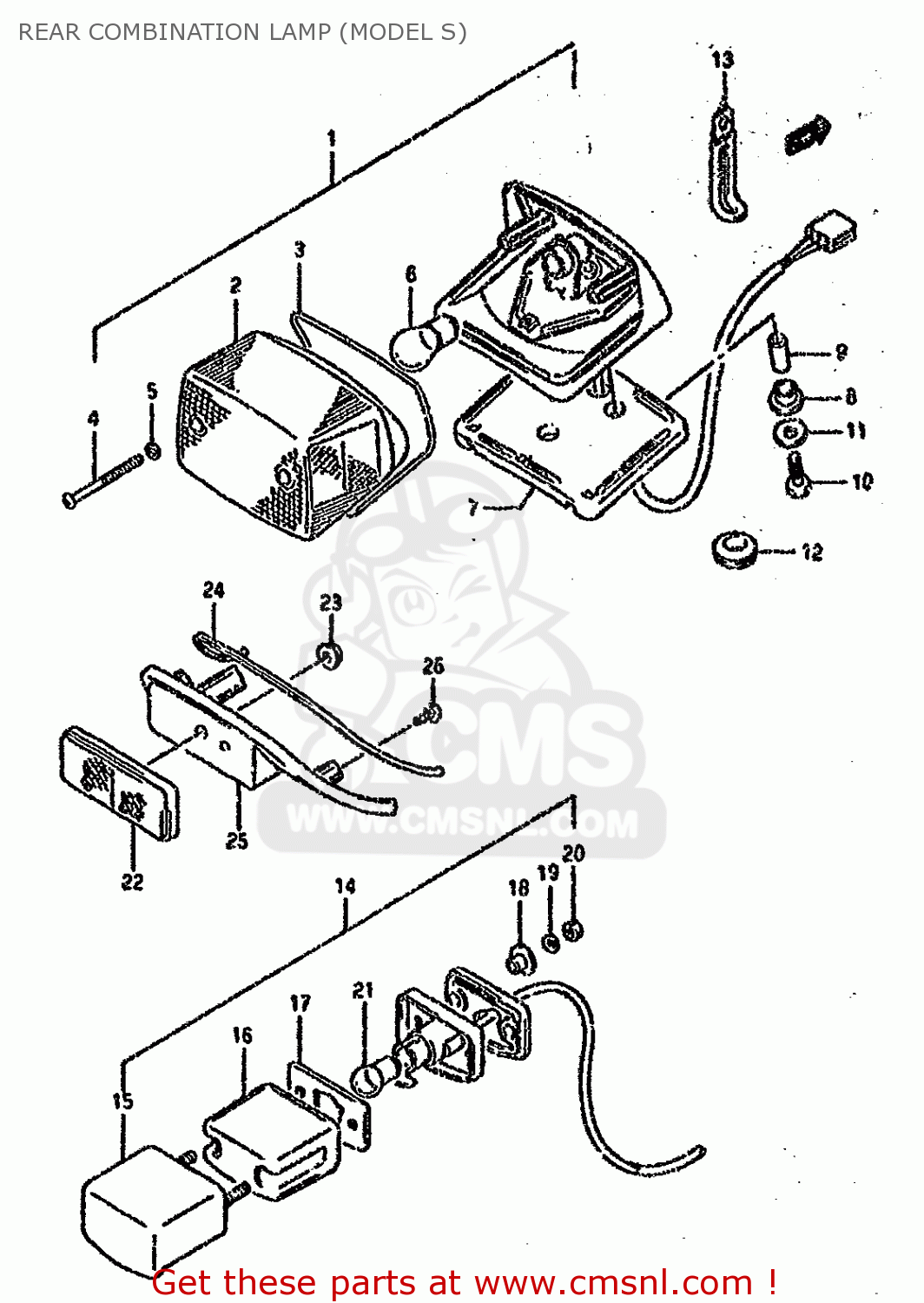

Rear combination lamp (model s) diagram VS1400GLP 1989 (K) (E22)
REAR COMBINATION LAMP (MODEL S) VS1400GLP 1989 (K) (E22)
×
prices are in EUR
ref
part #
description
quantity
1
3571038B20
ref: 1
LAMP ASSY,RR COMBINATION
€ 234.00
2
3571238A20
ref: 2
LENS
€ 81.00
3
3571338A00
ref: 3
GASKET (NAS)
€ 9.50
4
3572344130
ref: 4
SCREW
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
€ 2.00
6
0947112083
ref: 6
BULB(12V21/5W)
€ 6.00
7
3576538B20
ref: 7
CUSHION
€ 18.50
8
3576426470
ref: 8
CUSHION
€ 2.50
9
3576644720
ref: 9
SPACER,COMBINATION LAMP
€ 3.00
10
0150006303
ref: 10
BOLT
€ 2.50
11
0916006057
ref: 11
WASHER
€ 2.00
12
0930812009
ref: 12
GROMMET
€ 3.00
13
0940406429
ref: 13
CLAMP(L:45)
€ 2.50
14
3591038A21
ref: 14
LAMP ASSY,LICENSE
€ 240.00
15
3591738A20
ref: 15
COVER,LICENSE LAMP
€ 121.50
16
3591238A20
ref: 16
LENS
€ 13.00
17
3591338A30
ref: 17
GASKET,LICENSE LAMP (NAS)
€ 2.00
18
3576638A30
ref: 18
SPACER
€ 2.00
19
0832101043
ref: 19
WASHER,LOCK
€ 2.00
20
0831000047
ref: 20
NUT
€ 2.00
21
0947112140
ref: 21
BULB(12V5W,BF150-40160A)
€ 4.00
22
3597024D60
ref: 22
REFLECTOR ASSY,RR
€ 19.50
23
0831610053
ref: 23
NUT
€ 2.50
24
3598338B20
ref: 24
CUSHION
€ 5.50
25
3597738B20
ref: 25
SPACER,RR RR
€ 8.00
26
0351104163
ref: 26
SCREW
€ 1.50
27
0831000053
ref: 27
MODEL J
NUT
€ 2.50
28
3597038B00
ref: 28
MODEL J/M/N/P
REFLEX REFLECTOR ASSY,RR
€ 27.00
29
3597738B00
ref: 29
MODEL J/M/N/P
SPACER
€ 3.00
30
0832201053
ref: 30
MODEL J/M/N/P
WASHER
€ 2.50
31
0831000053
ref: 31
MODEL J/M/N/P
NUT
€ 2.50
32
3692006401
ref: 32
MODEL J/M/N/P
COVER,HARNESS
€ 3.00
30
0214205123
ref: 30
E39
SCREW 5X12
€ 1.50
31
0832201053
ref: 31
E39
WASHER
€ 2.50
32
0831000053
ref: 32
E39
NUT
€ 2.50
