ELECTRICAL

VS1400GLP BOULEVARD S83 2005 (K5) CALIFORNIA (E33)

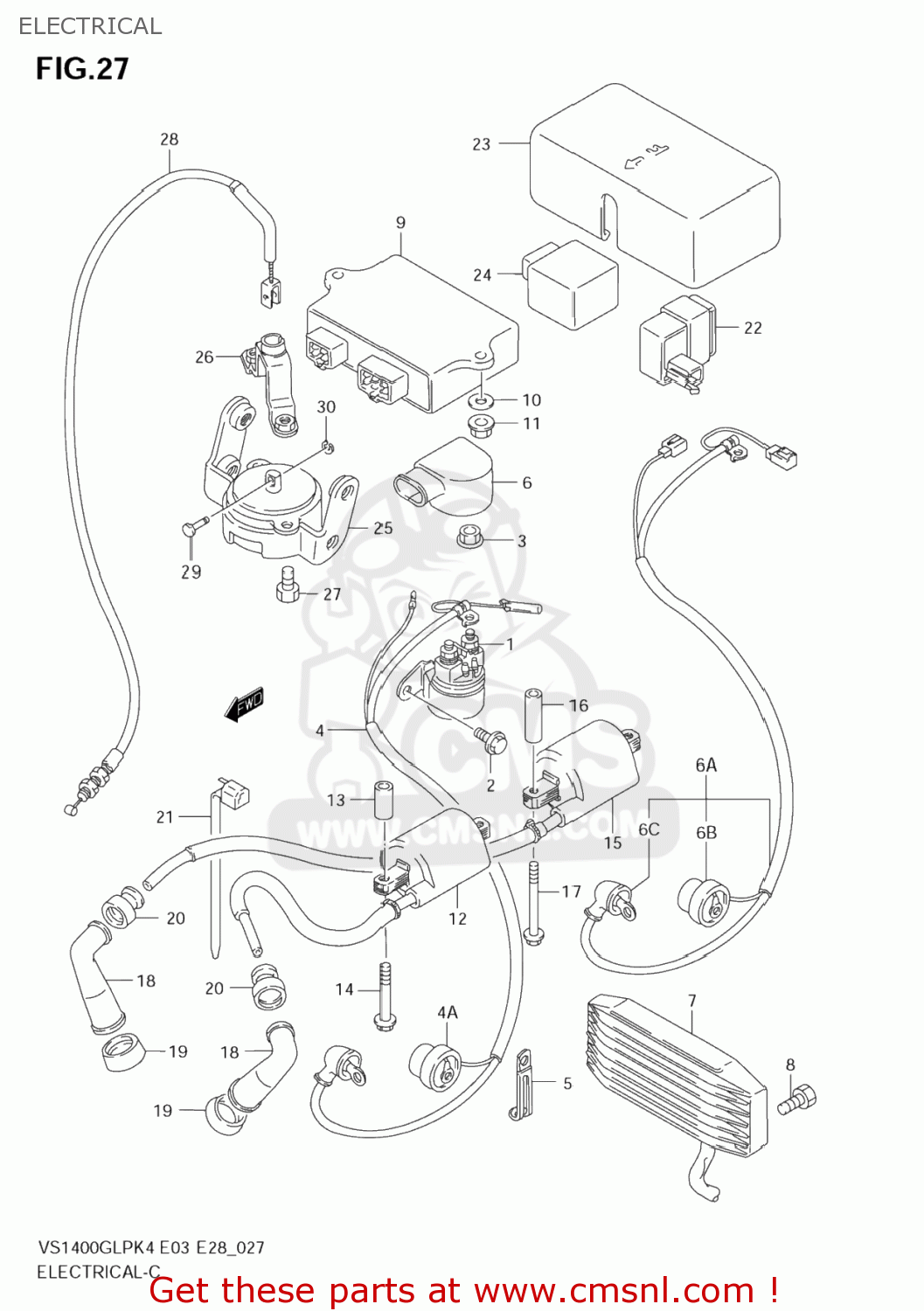

Electrical diagram VS1400GLP BOULEVARD S83 2005 (K5) CALIFORNIA (E33)

ELECTRICAL VS1400GLP BOULEVARD S83 2005 (K5) CALIFORNIA (E33)
ELECTRICAL VS1400GLP BOULEVARD S83 2005 (K5) CALIFORNIA (E33)
ELECTRICAL VS1400GLP BOULEVARD S83 2005 (K5) CALIFORNIA (E33)
prices are in EUR
ref
part #
description
quantity
1
3180049100
ref: 1
RELAY ASSY,STARTING MOTOR
3180049100
€ 89.00
2
015500610B
ref: 2
BOLT
015500610B
€ 2.50
3
083613506A
ref: 3
NUT
083613506A
€ 2.00
4
3385038B00
ref: 4
WIRE,STARTER MOTOR LEAD
3385038B00
€ 57.50
4A
3661843410
ref: 4A
CAP,OIL PRESSURE SWITCH
3661843410
€ 2.50
5
0940406401
ref: 5
09404-06432
CLAMP L:35
0940406401
€ 2.50
6
3362449401
ref: 6
CAP,STARTER RELAY TERMINAL
3362449401
€ 5.00
6A
3381038B00
ref: 6A
WIRE,STARTER MOTOR LEAD
€ 0.00
6B
3661843410
ref: 6B
CAP,OIL PRESSURE SWITCH
3661843410
€ 2.50
6C
3186148B10
ref: 6C
CAP,STARTER MOTOR LEAD
3186148B10
€ 4.50
7
3280012E01
ref: 7
RECTIFIER ASSY
3280012E01
€ 368.00
8
015000610B
ref: 8
BOLT
015000610B
€ 2.00
9
3290038B50
ref: 9
IGNITOR ASSY
€ 802.50
10
0916006131
ref: 10
WASHER(6.5X16X4)
0916006131
€ 2.50
11
083161006B
ref: 11
NUT
083161006B
€ 2.50
12
3341038B00
ref: 12
COIL ASSY,IGNITION RR
3341038B00
€ 151.00
13
0918006178
ref: 13
SPACER(6.4X10X22)
0918006178
€ 4.00
14
015700545B
ref: 14
BOLT
€ 2.50
15
3342038B00
ref: 15
COIL ASSY,IGNITION
3342038B00
€ 151.00
16
0918006179
ref: 16
SPACER(6.4X10X32)
0918006179
€ 5.00
17
015700555B
ref: 17
BOLT
€ 2.50
18
3351038B00
ref: 18
CAP,SPARK PLUG
3351038B00
€ 21.50
19
3354147D00
ref: 19
SEAL,SPARK PLUG
3354147D00
€ 7.00
20
3354238B00
ref: 20
SEAL,HIGH TENSION CORD
3354238B00
€ 4.50
21
0940714403
ref: 21
CLAMP(L:125)
0940714403
€ 2.50
22
3395038B00
ref: 22
RELAY ASSY,FUEL CUT
3395038B00
€ 89.00
23
3395138B00
ref: 23
COVER,RELAY
€ 19.50
24
3291024B10
ref: 24
CONTROL UNIT,DECOMP
3291024B10
€ 69.50
25
3397038B00
ref: 25
SOLENOID ASSY,DECOMP
3397038B00
€ 290.00
26
3397138B00
ref: 26
BRACKET,DECOMP SOLENOID
€ 13.50
27
015500612B
ref: 27
BOLT
015500612B
€ 2.50
28-1
5890038B01
ref: 28-1
58900-38B20
CABLE ASSEMBLY,DECOMPRESSION
5890038B01
€ 53.00
28-2
5890038B20
ref: 28-2
CABLE ASSY,DECOMP FR
5890038B20
€ 53.00
29
0920904020
ref: 29
PIN(4X12.5)
0920904020
€ 5.50
30
083321103A
ref: 30
E RING
083321103A
€ 1.50
