MAGNETO

VS1400GLP BOULEVARD S83 2005 (K5) CALIFORNIA (E33)

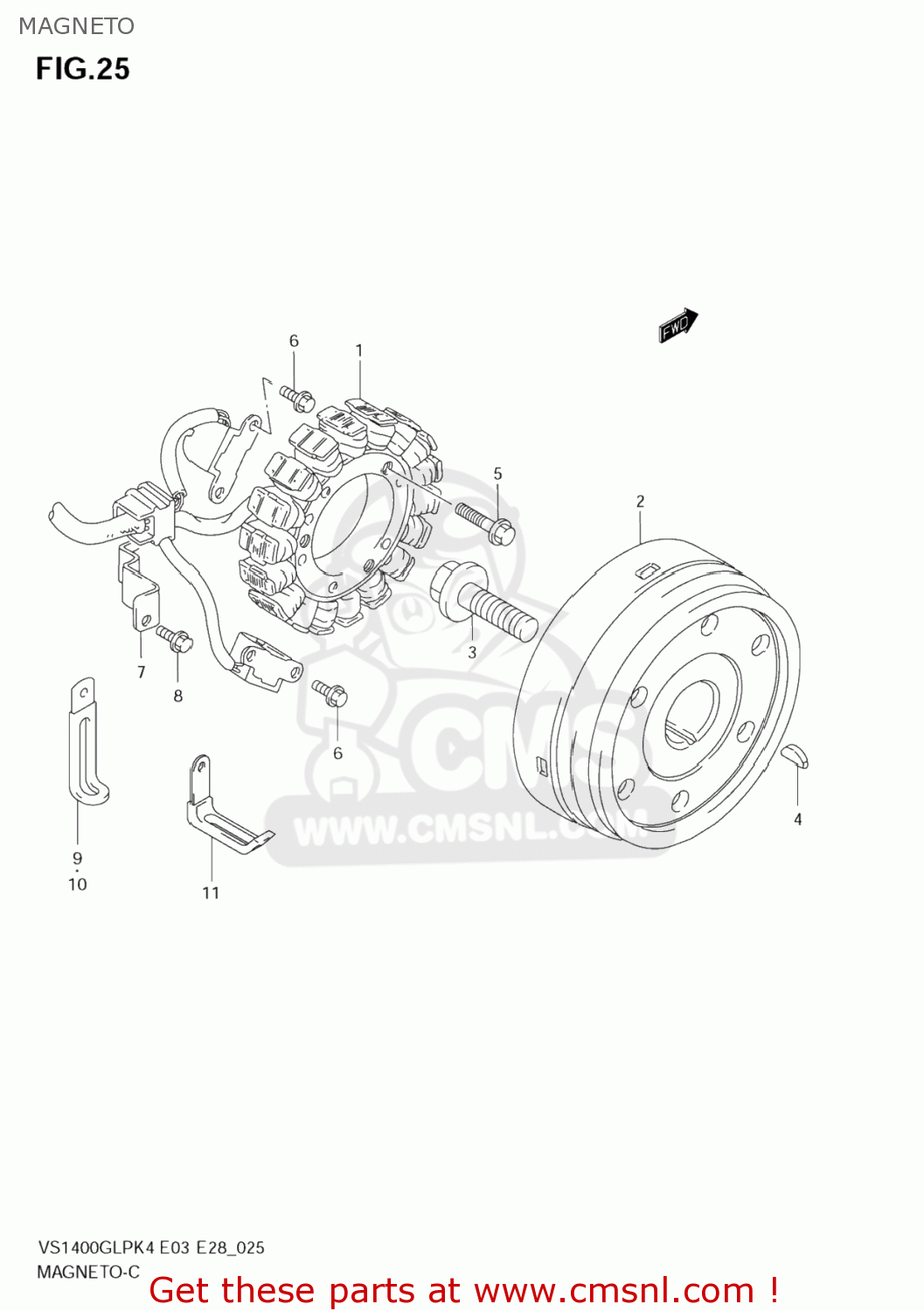

Magneto diagram VS1400GLP BOULEVARD S83 2005 (K5) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

3210138B02
ref: 1

STARTER ASSY

€ 1,055.00

3210238B10
ref: 2

ROTOR ASSY

€ 743.00

0910314001
ref: 3

BOLT(14X43)

€ 7.00

0942005007
ref: 4

KEY

€ 3.00

015470630B
ref: 5

BOLT

€ 3.00

015470510B
ref: 6

BOLT

€ 2.50

3237145C00
ref: 7

CLAMP,MAGNETO LEAD WIRE

€ 3.00

015470510B
ref: 8

BOLT

€ 2.50

0940408419
ref: 9

CLAMP(L:80)

€ 2.00

0940406429
ref: 10

CLAMP(L:45)

€ 2.50

0940406606
ref: 11
09404-06432

CLAMP(L:35)

€ 2.00
