Buy Suzuki VS Parts Online


FRONT MASTER CYLINDER (MODEL K5/K6/K7/K8)

VS1400GLP BOULEVARD S83 2005 (K5) CALIFORNIA (E33)

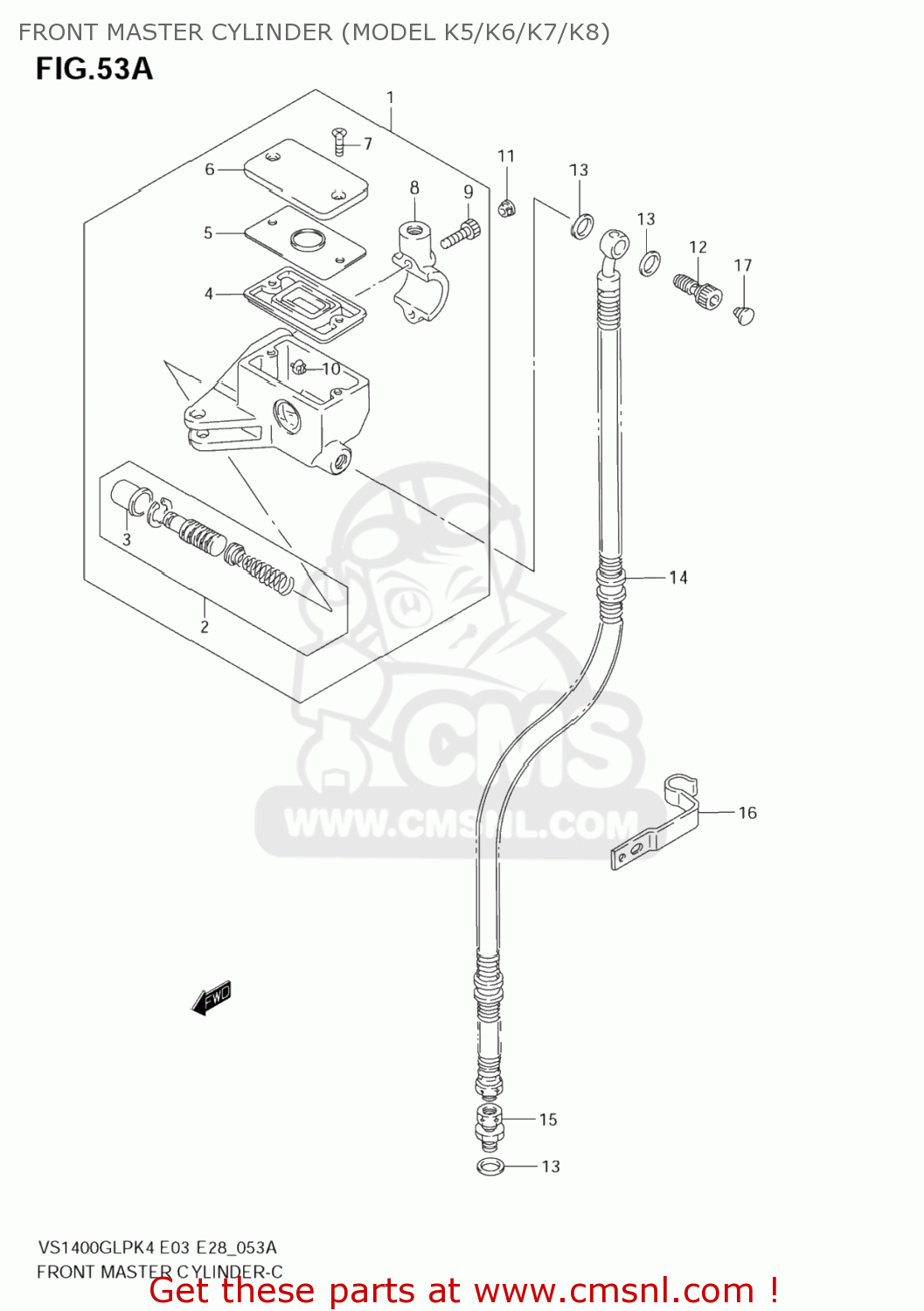

Front master cylinder (model k5/k6/k7/k8) diagram VS1400GLP BOULEVARD S83 2005 (K5) CALIFORNIA (E33)

FRONT MASTER CYLINDER (MODEL K5/K6/K7/K8) VS1400GLP BOULEVARD S83 2005 (K5) CALIFORNIA (E33)
FRONT MASTER CYLINDER (MODEL K5/K6/K7/K8) VS1400GLP BOULEVARD S83 2005 (K5) CALIFORNIA (E33)
FRONT MASTER CYLINDER (MODEL K5/K6/K7/K8) VS1400GLP BOULEVARD S83 2005 (K5) CALIFORNIA (E33)
prices are in EUR
ref
part #
description
quantity
1
5960038A90
ref: 1
CYLINDER ASSY,FR MASTER
5960038A90
€ 365.00
2
5960004810
ref: 2
PISTON/CUP SET
5960004810
€ 37.50
3
5966644300
ref: 3
BOOT
5966644300
€ 6.00
4
5966749460
ref: 4
5966749460
5
5966841C00
ref: 5
PLATE,DIAPHRAGM
5966841C00
€ 8.00
6
5966910F00
ref: 6
CAP
5966910F00
€ 59.50
7
0212204127
ref: 7
SCREW
0212204127
€ 2.00
8
5967138A00
ref: 8
HOLDER
5967138A00
€ 37.50
9
0713006207
ref: 9
BOLT
0713006207
€ 3.50
10
5966448B00
ref: 10
PROTECTOR
5966448B00
€ 8.00
11
0925005008
ref: 11
CAP(OD:10)
0925005008
€ 5.00
12
0936010027
ref: 12
BOLT UNION
0936010027
€ 9.00
13
0916110009
ref: 13
WASHER(10X15X1.5)
0916110009
€ 2.00
14
5948038B50
ref: 14
HOSE,FR BRAKE
€ 0.00
15
5929043500
ref: 15
ADAPTER,BRAKE HOSE
5929043500
€ 34.50
16
5926838B01
ref: 16
GUIDE,BRAKE HOSE
5926838B01
€ 8.50
17
0925008014
ref: 17
CAP(OD:12)
0925008014
€ 3.50
