HANDLEBAR (MODEL K5/K6/K7/K8)

VS1400GLP BOULEVARD S83 2005 (K5) CALIFORNIA (E33)

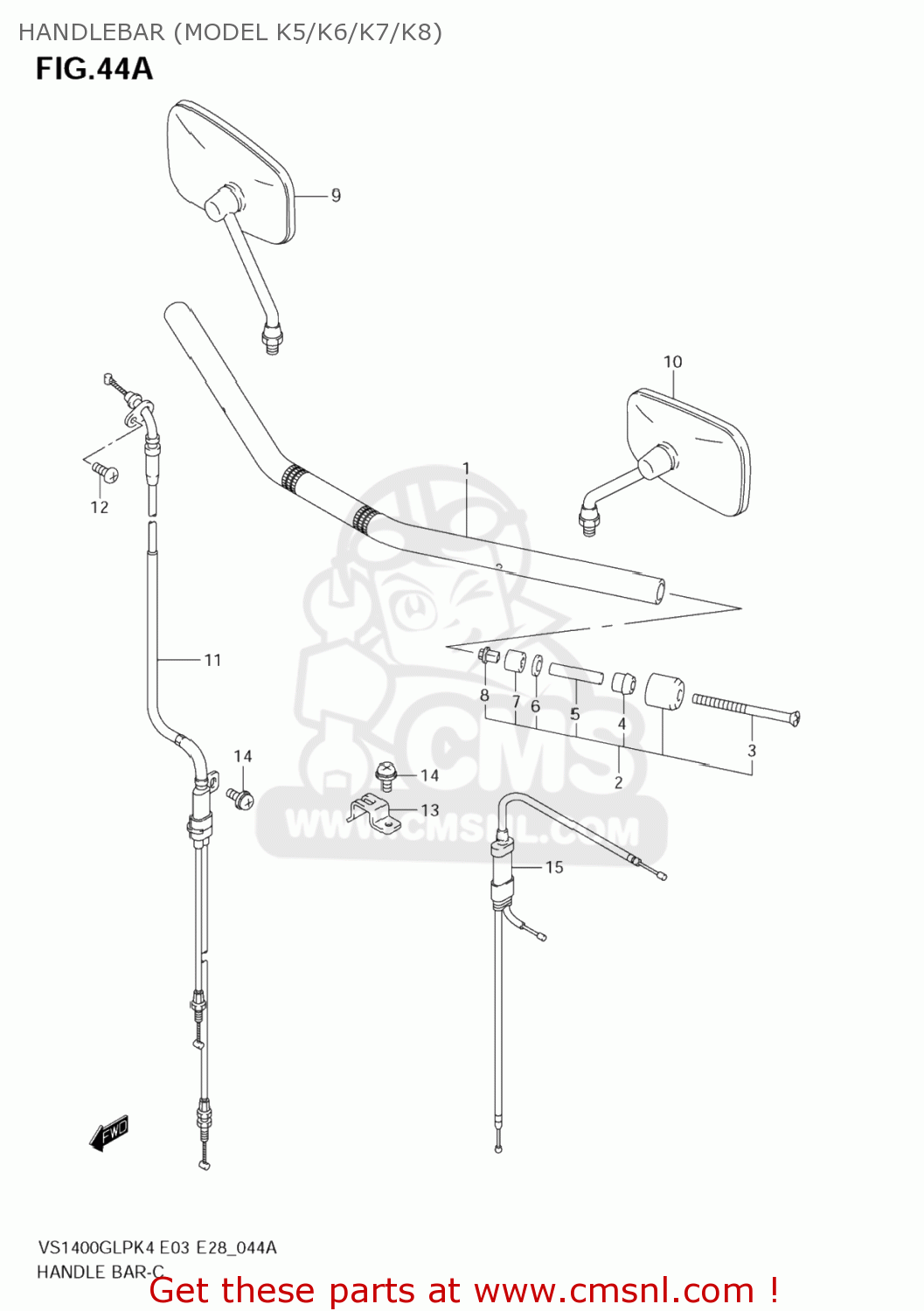

Handlebar (model k5/k6/k7/k8) diagram VS1400GLP BOULEVARD S83 2005 (K5) CALIFORNIA (E33)

HANDLEBAR (MODEL K5/K6/K7/K8) VS1400GLP BOULEVARD S83 2005 (K5) CALIFORNIA (E33)

HANDLEBAR (MODEL K5/K6/K7/K8) VS1400GLP BOULEVARD S83 2005 (K5) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

5611139B00
ref: 1

HANDLEBAR

€ 0.00

2

5620010891
ref: 2

BALANCER SET,HANDLEBAR

€ 38.50

3

0912706017
ref: 3

SCREW(6X127)

€ 2.50

4

5627226D01
ref: 4

EXPANDER,HANDLE BALANCER NO.2

€ 5.00

5

5627617D00
ref: 5

SPACER,EXPANDER

€ 2.50

6

0916006131
ref: 6

WASHER(6.5X16X4)

€ 2.50

7

5627210G10
ref: 7

EXPANDER,HANDLE BALANCER

€ 3.00

8

5627310G10
ref: 8

NUT,HANDLE BALANCER

€ 6.50

9-1

5650045C60
ref: 9-1
56500-45C61

MIRROR ASSY,RR VIEW,R

€ 0.00

9-2

5650045C61
ref: 9-2

MIRROR ASSY,RR VIEW,R

€ 0.00

10-1

5660045C60
ref: 10-1
56600-45C61

MIRROR ASSY, REAR VIEW LH

€ 246.00

10-2

5660045C61
ref: 10-2

MIRROR ASSY,RR VIEW,L

€ 246.00

11

5830039B00
ref: 11

CABLE ASSY,THROTTLE

€ 106.50

12

0913905033
ref: 12

SCREW(5X10)

€ 2.00

13

5862138B00
ref: 13

CLAMP,THROTTLE CABLE CONNECTOR

€ 6.00

14

021127512B
ref: 14

SCREW

€ 2.00

15

5840039B00
ref: 15

CABLE ASSY,STARTER

€ 34.00
