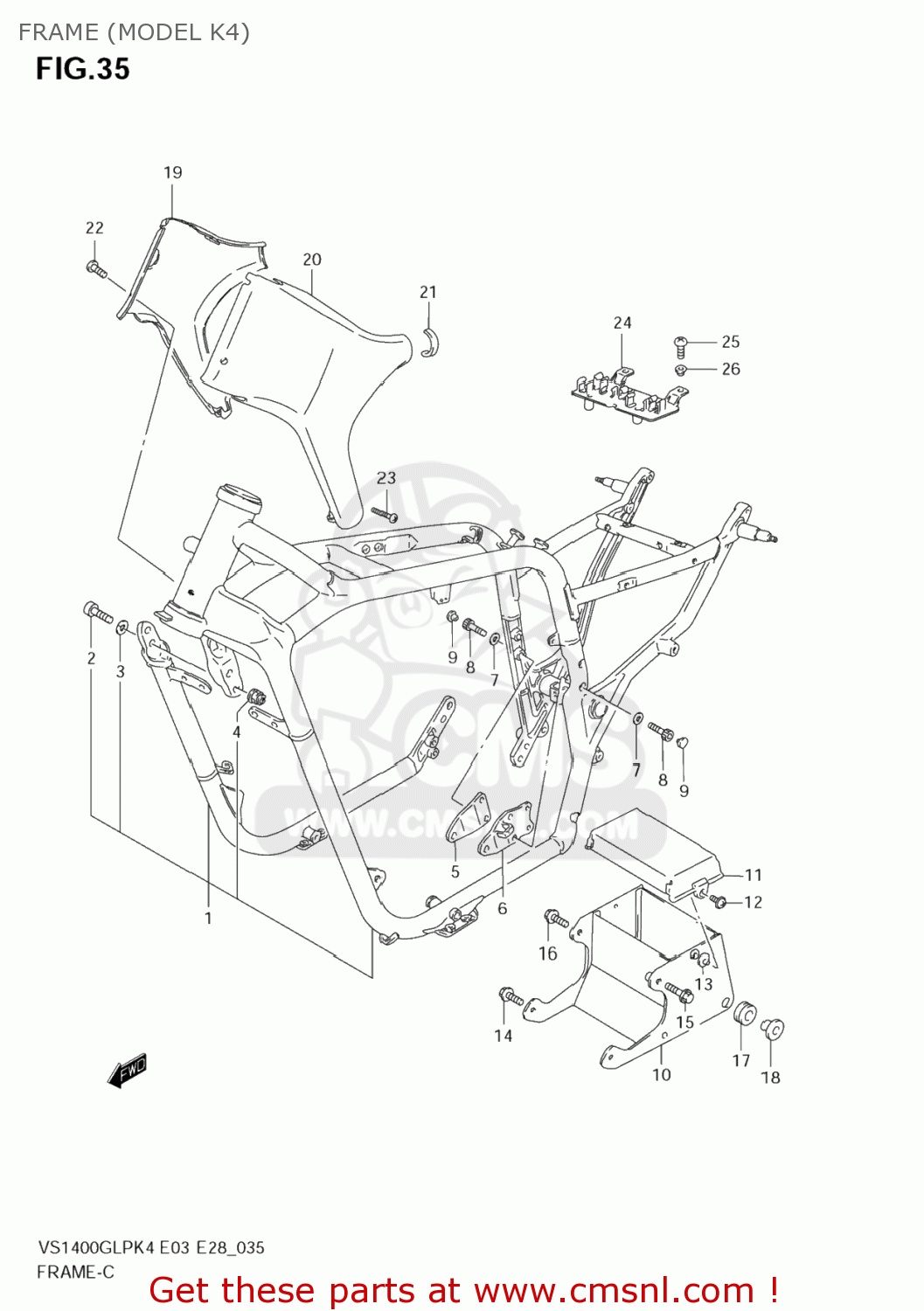

FRAME (MODEL K4)

ref

part #

description

quantity

1-1

4110138822YAY
ref: 1-1

FRAME SET(BLACK)

€ 1,654.00

1-2

4110138822YD8
ref: 1-2

FRAME SET(SILVER)

€ 2,238.00

2

0910610019
ref: 2

BOLT(10X33)

€ 4.00

3

0916410010
ref: 3

WASHER

€ 6.50

4

0831931103
ref: 4
08319-3110A

NUT

€ 3.00

5-1

4195138B00YAY
ref: 5-1

PLATE,MOUNT NO.4,R

€ 0.00

5-2

4195138B00YD8
ref: 5-2

PLATE,MOUNT NO.4,R

€ 14.50

6-1

4196038B00YAY
ref: 6-1

PLATE,MOUNT NO.4,L

€ 0.00

6-2

4196038B00YD8
ref: 6-2

PLATE,MOUNT NO.4,L

€ 21.00

7

0916408015
ref: 7

WASHER

€ 3.00

8

0910608072
ref: 8

BOLT(8X32)

€ 5.00

9

0925006004
ref: 9

CAP(OD:14.5)

€ 1.50

10

4154038B01
ref: 10
41540-38B02

HOLDER,BATTERY

€ 97.00

11

3365838B00
ref: 11

COVER,BATTERY

€ 12.00

12

0913805012
ref: 12

SCREW(5X12)

€ 2.50

13

0916905014
ref: 13

WASHER

€ 10.00

14

0155006163
ref: 14
01550-0616A

BOLT

€ 2.50

15

0155108203
ref: 15
01551-0820A

BOLT, FRONT

€ 2.00

16

0910308222
ref: 16

BOLT(8X40)

€ 3.00

17

0932012042
ref: 17

CUSHION

€ 4.00

18

0930108009
ref: 18

BUSH

€ 6.50

19-1

4735038B01YAY
ref: 19-1

COVER,FRAME HEAD,R(BLACK)

€ 0.00

19-2

4735038B01YD8
ref: 19-2

COVER,FRAME HEAD,R(SILVER)

€ 117.00

20-1

4736038B11YAY
ref: 20-1

COVER,FRAME HEAD,L(BLACK)

€ 119.00

20-2

4736038B11YD8
ref: 20-2

COVER,FRAME HEAD,L(SILVER)

€ 117.00

21

4735938B00
ref: 21

PROTECTOR,FRAME HEAD COVER

€ 2.00

22

0214206103
ref: 22
02142-0610A

SCREW 6X10

€ 2.00

23

0211204253
ref: 23
02112-0425B

SCREW

€ 2.00

24

4741138B02
ref: 24

HOLDER,COUPLER

€ 11.50

25

0214206163
ref: 25
02142-0616A

SCREW

€ 2.50

26

0916906010
ref: 26

WASHER

€ 3.00
