WIRING HARNESS (VS1400K5)

VS1400GLP BOULEVARD S83 2005 (K5) CALIFORNIA (E33)

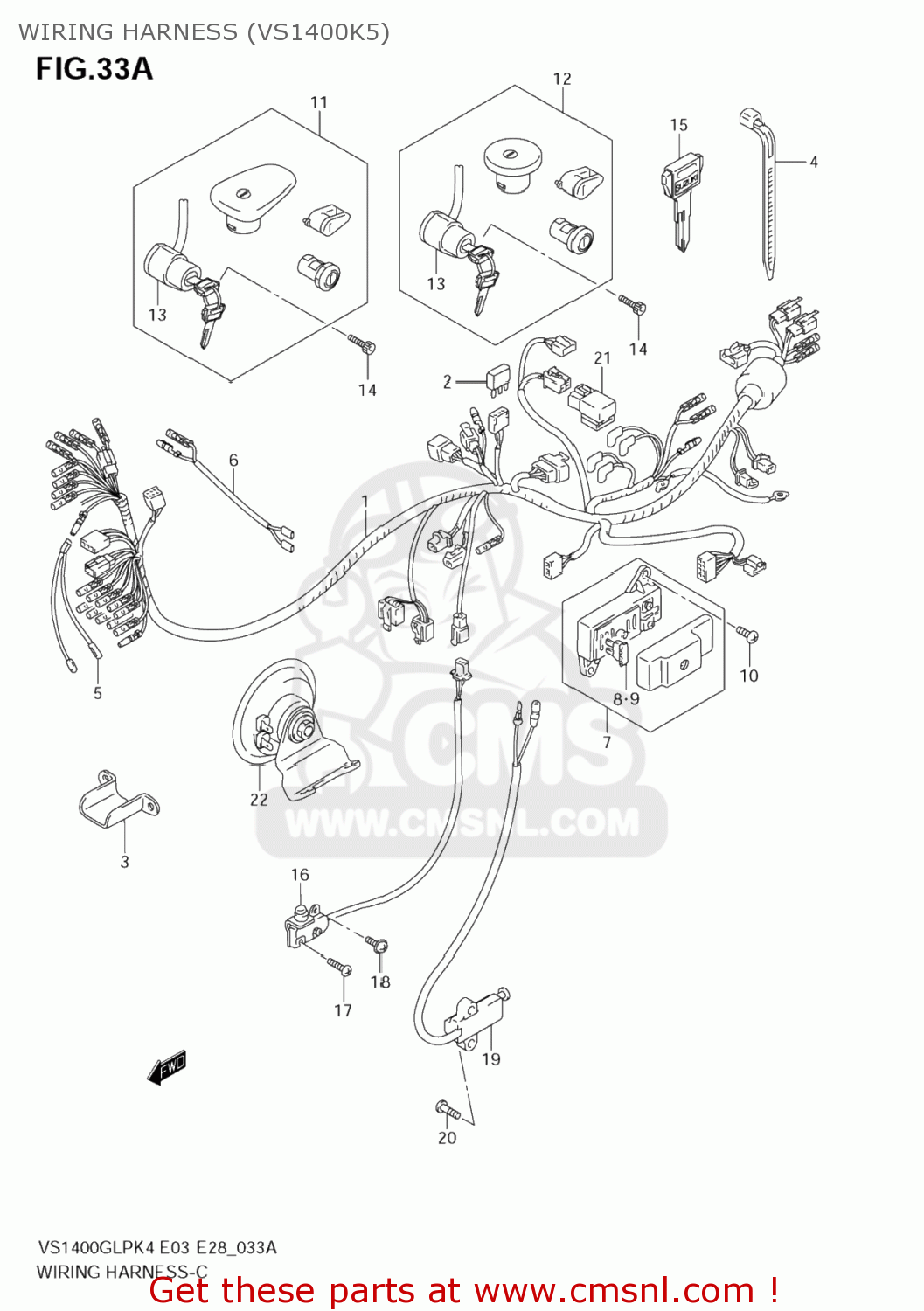

Wiring harness (vs1400k5) diagram VS1400GLP BOULEVARD S83 2005 (K5) CALIFORNIA (E33)

WIRING HARNESS (VS1400K5) VS1400GLP BOULEVARD S83 2005 (K5) CALIFORNIA (E33)

WIRING HARNESS (VS1400K5) VS1400GLP BOULEVARD S83 2005 (K5) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

3661038BH0
ref: 1

HARNESS,WIRING

€ 0.00

2

3661138A00
ref: 2

DIODE(STANLEY DE8804)

€ 13.00

3

3661938B00
ref: 3

GUIDE,WIRING HARNESS

€ 6.50

4-1

0940714403
ref: 4-1

CLAMP(L:125)

€ 2.50

4-2

0940714407
ref: 4-2

CLAMP(L:145)

€ 4.00

4-3

0940718402
ref: 4-3

CLAMP(L:165)

€ 2.50

5

3685238B10
ref: 5

WIRE,CLUTCH SW CONNECTOR

€ 5.50

6

3859538B10
ref: 6

WIRE,HORN LEAD

€ 8.00

7

3674019C00
ref: 7

BOX ASSY,FUSE

€ 88.00

8

0948125101
ref: 8
09481-25103

FUSE (25A)

€ 2.50

9

0948110101
ref: 9

FUSE(10A)

€ 2.50

10

0214206163
ref: 10
02142-0616A

SCREW

€ 2.50

11

3700038850
ref: 11

LOCK SET

€ 0.00

12

3700038860
ref: 12

LOCK SET

€ 0.00

13

3711038B03
ref: 13

SWITCH ASSY,IGNITION

€ 71.50

14

0713005163
ref: 14
07130-0516A

BOLT

€ 2.00

15-1

3714603A00
ref: 15-1

KEY,BLANK(TYPE:C)

€ 6.00

15-2

3714603A10
ref: 15-2

KEY,BLANK(TYPE:D)

€ 6.00

15-3

3714603A20
ref: 15-3

KEY,BLANK(TYPE:E)

€ 6.00

15-4

3714603A30
ref: 15-4

KEY,BLANK(TYPE:F)

€ 6.00

16

3774038B00
ref: 16

SWITCH ASSY,STOP LAMP

€ 79.00

17

0211204163
ref: 17
02112-0416A

SCREW 4X16

€ 1.00

18

0214204063
ref: 18
02142-0406A

SCREW

€ 1.50

19

3784039A22
ref: 19

SWITCH ASSY,SIDE STAND

€ 87.50

20

0211276203
ref: 20
02112-7620B

SCREW

€ 2.50

21

3874038B00
ref: 21

RELAY ASSY

€ 37.50

22

3850038B10
ref: 22

HORN ASSY

€ 83.00
