Buy Suzuki VS Parts Online


CANISTER (FOR CALIFORNIA)

VS800GL INTRUDER 1993 (P) USA (E03)

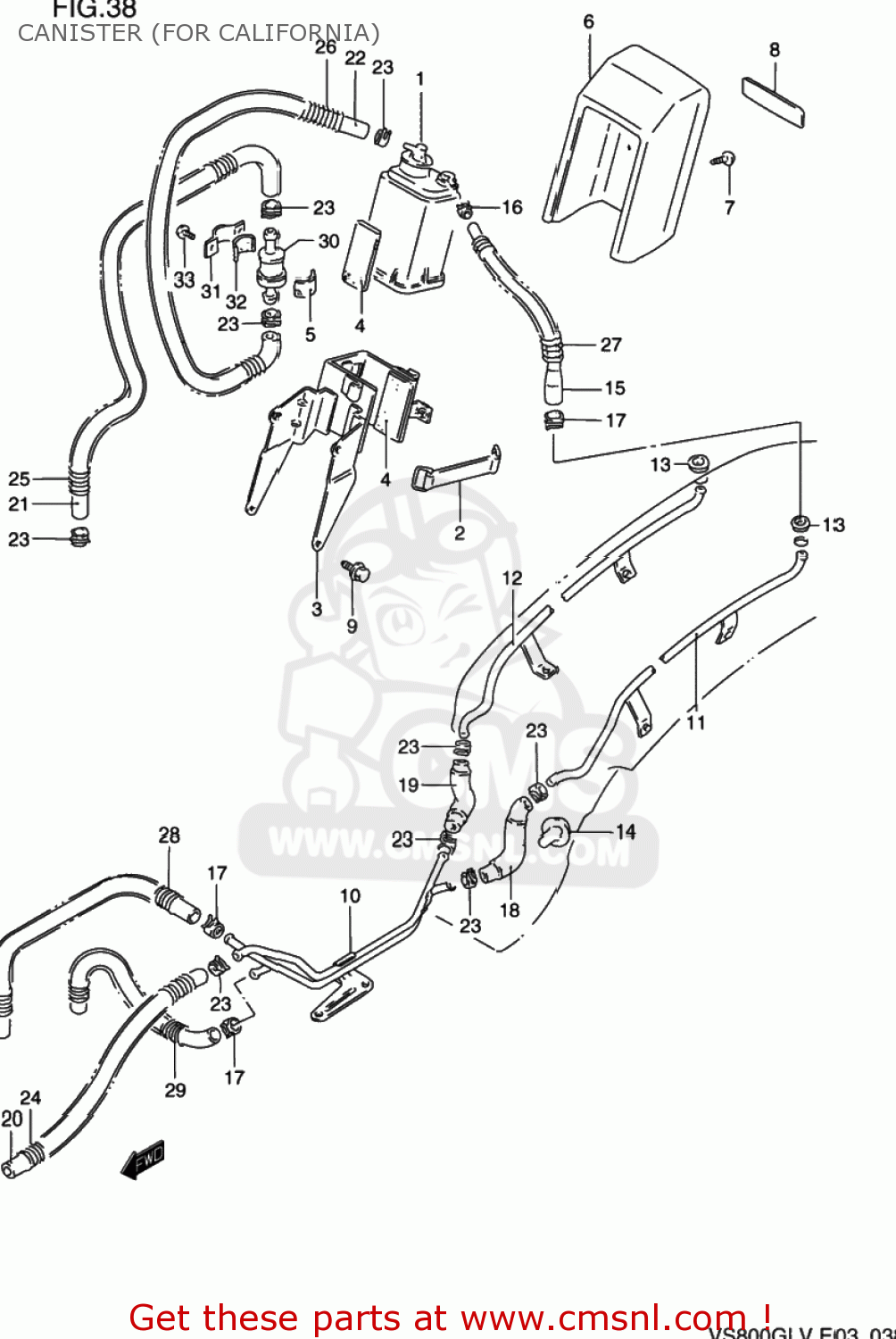

Canister (for california) diagram VS800GL INTRUDER 1993 (P) USA (E03)

CANISTER (FOR CALIFORNIA) VS800GL INTRUDER 1993 (P) USA (E03)
CANISTER (FOR CALIFORNIA) VS800GL INTRUDER 1993 (P) USA (E03)
CANISTER (FOR CALIFORNIA) VS800GL INTRUDER 1993 (P) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1721038A00
ref: 1
CANISTER ASSY,CHARCOAL
€ 0.00
2
0946200034
ref: 2
BAND
0946200034
€ 4.50
3-1
4488038A10
ref: 3-1
44880-38A12
BRACKET,CANISTER
€ 31.00
3-2
4488038A12
ref: 3-2
PLATE,CANISTER FITING
€ 31.00
4
4488538A00
ref: 4
CUSHION
4488538A00
€ 3.00
5
4489424A00
ref: 5
CUSHION
4489424A00
€ 1.50
6
4499138A10
ref: 6
COVER,CANISTER
€ 120.50
7-1
0912005002
ref: 7-1
SCREW (5X10)
€ 0.00
7-2
0212205123
ref: 7-2
02122-0512A
SCREW
€ 2.00
8
6826138A30
ref: 8
EMBLEM,TOOL HOLDER RR
6826138A30
€ 31.00
9
0154706167
ref: 9
BOLT
0154706167
€ 2.00
10
4494038A00
ref: 10
PIPE,CSTR JOINT FR
€ 67.50
11
4495038A10
ref: 11
(CA) PIPE,CANISTER JOINT REAR
€ 46.50
12
4496038A10
ref: 12
(CA) PIPE,CANISTER JOINT REAR
€ 46.50
13
0930805020
ref: 13
GROMMET
€ 2.50
14
0930805004
ref: 14
GROMMET
€ 2.00
15
4491143500
ref: 15
HOSE,PURGE NO.1
€ 3.00
16
0940106405
ref: 16
CLIP
0940106405
€ 2.00
17
0940108411
ref: 17
CLIP
0940108411
€ 3.00
18
4434038A00
ref: 18
(CA) HOSE NO.6
€ 0.00
19
4433038A00
ref: 19
(CA) HOSE NO.2
€ 0.00
20
0935554116600
ref: 20
HOSE(5.4X11.4X600)
0935554116600
€ 12.00
21
0934305414
ref: 21
HOSE
€ 3.50
22
0934305414
ref: 22
HOSE
€ 3.50
23
0940111413
ref: 23
CLIP
0940111413
€ 2.50
24
0944013043
ref: 24
SPRING
0944013043
€ 14.50
25
0944013044
ref: 25
(CA) SPRING
€ 7.00
26
0944013043
ref: 26
SPRING
0944013043
€ 14.50
27
0944010031
ref: 27
SPRING
€ 0.00
28
0944010022
ref: 28
SPRING
€ 4.50
29
0944010019
ref: 29
SPRING
0944010019
€ 4.00
30
4424038A00
ref: 30
VALVE,FUEL TANK BREATHER
4424038A00
€ 35.00
31
4489224A00
ref: 31
PLATE,FUEL TANK BREATHER NO.2
€ 3.00
32
4489424A00
ref: 32
CUSHION
4489424A00
€ 1.50
33
0214204103
ref: 33
02142-0410A
SCREW
0214204103
€ 1.50
