CYLINDER
VS800GL INTRUDER 1993 (P) USA (E03)

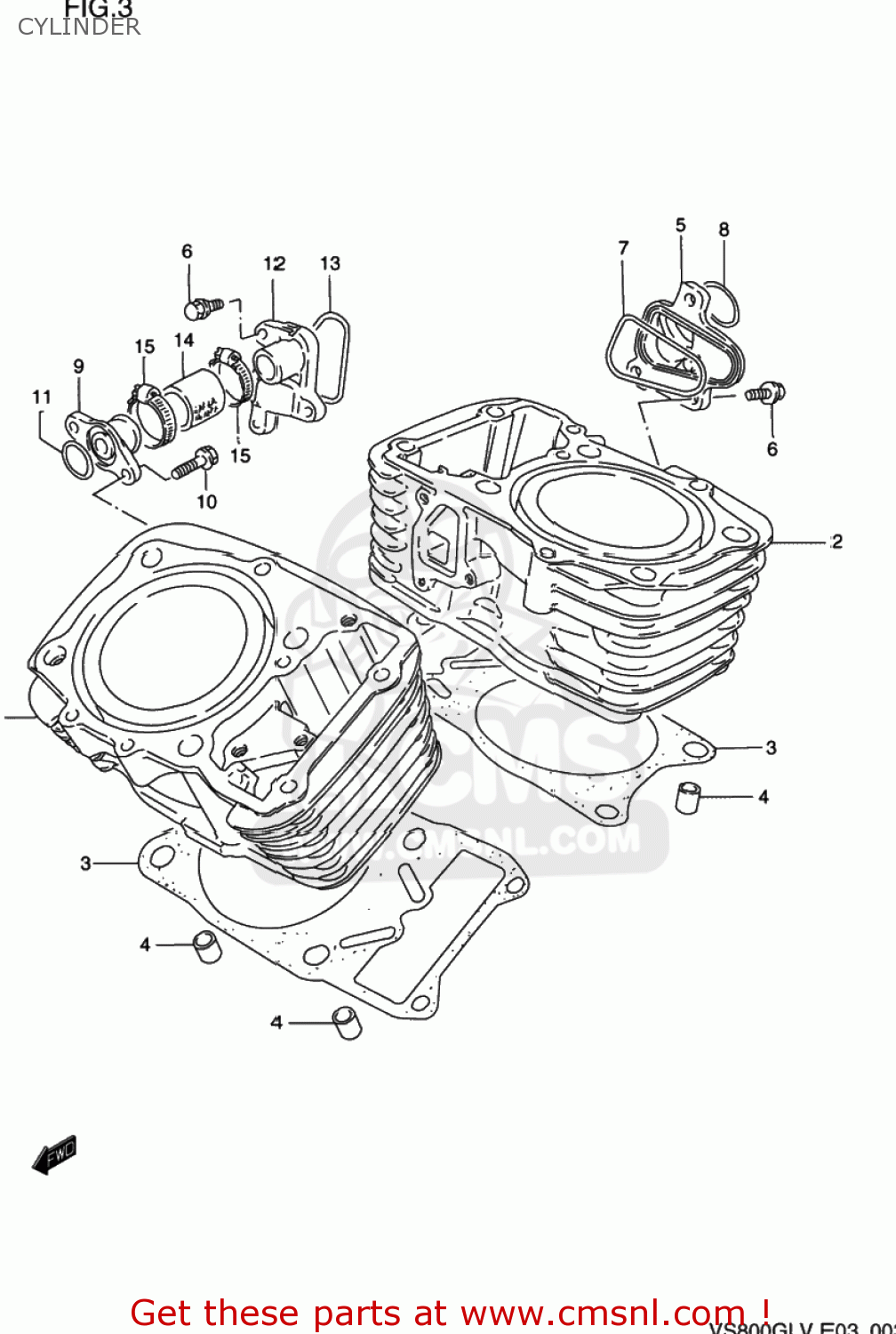

Cylinder diagram VS800GL INTRUDER 1993 (P) USA (E03)
CYLINDER VS800GL INTRUDER 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1121039A00
ref: 1-1
11210-39A01
CYLINDER COMP,FRONT
€ 481.00
1-2
1121039A01
ref: 1-2
CYLINDER,FR
€ 481.00
2-1
1122039A00
ref: 2-1
11220-39A01
CYLINDER COMP,REAR
€ 530.50
2-2
1122039A01
ref: 2-2
CYLINDER
€ 530.50
3
1124145C20
ref: 3
GASKET,CYLINDER (NAS)
€ 16.50
4-1
0920613001
ref: 4-1
04211-13189
PIN
€ 2.50
4-2
0421113189
ref: 4-2
PIN
€ 2.50
5-1
1123738A01
ref: 5-1
11237-41F00
CHAMBER,WATER,INLET
€ 28.00
5-2
1123745C10
ref: 5-2
11237-41F00
CHAMBER,WATER,INLET
€ 28.00
6
0154706207
ref: 6
BOLT
€ 2.50
7
1124738A00
ref: 7
O RING,INLET WATER CHAMBER
€ 3.00
8
0928024007
ref: 8
O RING(D:2.3,ID:24.4)
€ 2.00
9-1
1123538A00
ref: 9-1
11235-41F00
UNION,WATER INLET
€ 16.00
9-2
1123545C10
ref: 9-2
11235-41F00
UNION,WATER INLET
€ 16.00
10
0154706167
ref: 10
BOLT
€ 2.00
11
0928016005
ref: 11
O RING(D:2.4,ID:15.8)
€ 1.50
12-1
1123638A01
ref: 12-1
11236-45C10
CHAMBER,WATER,OUTLET
€ 26.50
12-2
1123645C10
ref: 12-2
CHAMBER,WATER OUTLET
€ 26.50
13
1124638A00
ref: 13
O RING,OUTLET WATER CHAMBER
€ 4.50
14-1
1785338A00
ref: 14-1
17851-01A00
HOSE,RADIATOR
€ 17.50
14-2
1785328C20
ref: 14-2
17851-01A00
HOSE,RADIATOR JOINT NO.1
€ 17.50
15-1
0940225502
ref: 15-1
09402-28511
CLAMP
€ 8.50
15-2
0940228511
ref: 15-2
CLAMP
€ 8.50
