SECONDARY DRIVE GEAR
VS800GL INTRUDER 1993 (P) USA (E03)

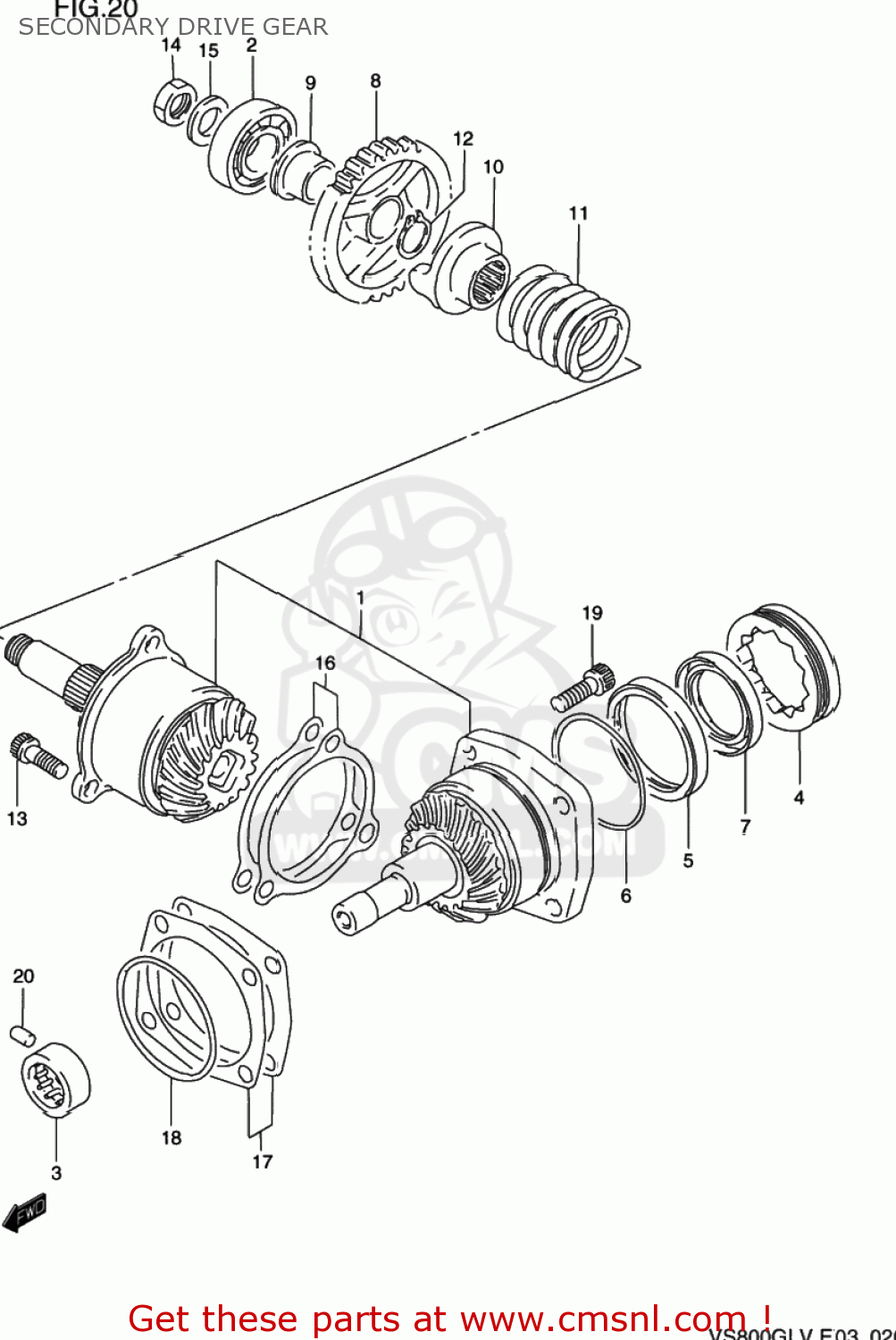

Secondary drive gear diagram VS800GL INTRUDER 1993 (P) USA (E03)
SECONDARY DRIVE GEAR VS800GL INTRUDER 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2490038822
ref: 1
GEAR & HOUSING SET,SECONDARY
€ 1,238.50
2
0926220073
ref: 2
BEARING(20X52X15)
€ 19.00
3
0926320038
ref: 3
BEARING(20X34X16)
€ 30.50
4
2494238A50
ref: 4
STOPPER,SEC DRIVEN BEARING
€ 34.50
5
2494338A50
ref: 5
HOUSING,OIL SEAL
€ 54.50
6
0928060003
ref: 6
O RING(D:1.2,ID:59.6)
€ 2.00
7
0928338016
ref: 7
SEAL,OIL(38X54X8.5)
€ 12.00
8
2463138A00
ref: 8
GEAR,REDUCTION DRIVEN(NT:30)
€ 95.50
9
2463238A00
ref: 9
BUSH,REDUCTION DRIVEN GEAR
€ 13.00
10
2492238A00
ref: 10
DOG,OUTPUT CAM
€ 42.00
11
0944044002
ref: 11
SPRING
€ 15.50
12
0833131216
ref: 12
08331-3121A
CIRCLIP
€ 2.00
13-1
0711008256
ref: 13-1
07130-0825B
BOLT
€ 3.50
13-2
0713008253
ref: 13-2
07130-0825B
BOLT
€ 3.50
14-1
0914016014
ref: 14-1
09140-16005
NUT
€ 4.50
14-2
0914016005
ref: 14-2
NUT
€ 4.50
15
0916016029
ref: 15
WASHER(16X29X4)
€ 6.00
16
2493538810
ref: 16
SHIM SET,SEC DRIVE GEAR
€ 17.00
17
2494505810
ref: 17
SHIM SET,SEC DRIVEN HOUSING
€ 20.00
18
0928067004
ref: 18
O RING(D:2.1,ID:66.2)
€ 2.50
19-1
0711008256
ref: 19-1
07130-0825B
BOLT
€ 3.50
19-2
0713008253
ref: 19-2
07130-0825B
BOLT
€ 3.50
20
0422107129
ref: 20
PIN
€ 1.50
