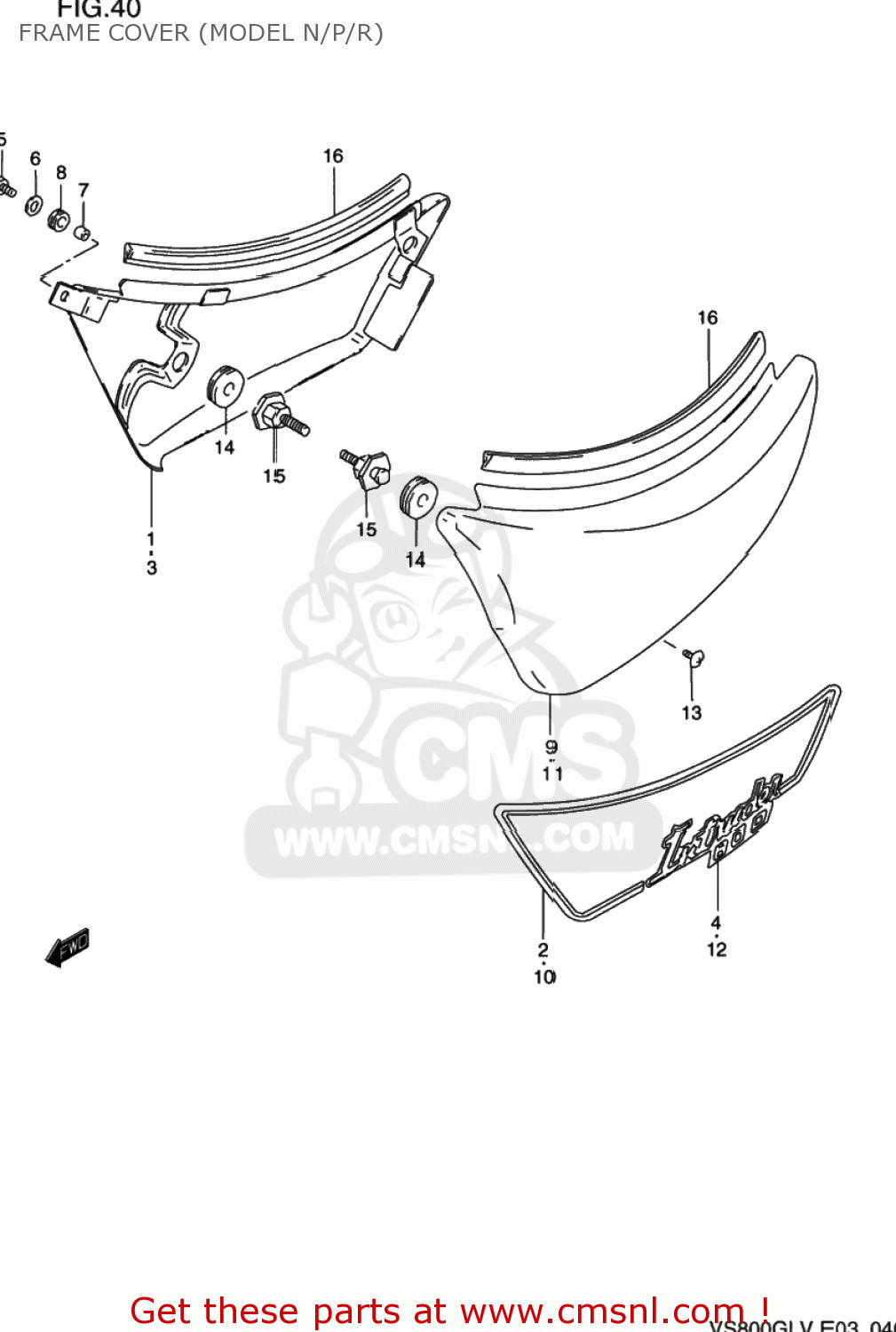

FRAME COVER (MODEL N/P/R)

ref

part #

description

quantity

1-1

4710039A0003F
ref: 1-1

COVER ASSEMBLY,FRAME,RIGHT

€ 245.00

1-2

4710039A0010X
ref: 1-2
47110-38A00-19A

COVER ASSEMBLY,FRAME,RIGHT

€ 112.50

2-1

6813539A01M54
ref: 2-1

TAPE,FRAME COVER,RIGHT

€ 57.50

2-2

6813539A01M55
ref: 2-2

TAPE,FRAME COVER,RIGHT

€ 63.00

3-1

4710039A1019A
ref: 3-1

COVER ASSEMBLY,FRAME,RIGHT (RED)

€ 112.50

3-2

4710039A100CG
ref: 3-2

COVER ASSEMBLY,FRAME,RIGHT

€ 141.50

3-3

4710039A1033J
ref: 3-3
47110-38A00-33J

COVER ASSEMBLY,FRAME,RIGHT (BLACK)

€ 245.00

4-1

6813139A00M55
ref: 4-1

EMBLEM,FRAME COVER

€ 31.00

4-2

6813139A00A6S
ref: 4-2

EMBLEM,FRAME COVER

€ 20.50

4-3

6813139A00C2P
ref: 4-3

EMBLEM,FRAME COVER

€ 21.00

5

0120406167
ref: 5

BOLT

€ 2.00

6

0916006084
ref: 6

WASHER(6.5X18X1.6)

€ 2.00

7

0918006032
ref: 7
09180-06246

SPACER (6.1X8X5.2)

€ 2.50

8

0932006017
ref: 8

CUSHION

€ 3.00

9-1

4720039A0003F
ref: 9-1
47210-38A00-13L

COVER ASSEMBLY,FRAME,LEFT

€ 259.00

9-2

4720039A0010X
ref: 9-2
47210-38A00-19A

COVER ASSEMBLY,FRAME,LEFT

€ 259.00

10-1

6814539A01M54
ref: 10-1

TAPE,FRAME COVER,LEFT

€ 57.50

10-2

6814539A01M55
ref: 10-2

TAPE,FRAME COVER,LEFT

€ 76.00

11-1

4720039A1019A
ref: 11-1

COVER ASSEMBLY,FRAME,LEFT (RED)

€ 259.00

11-2

4720039A100CG
ref: 11-2

COVER ASSEMBLY,FRAME,LEFT

€ 121.00

11-3

4720039A1033J
ref: 11-3
47210-38A00-33J

COVER ASSEMBLY,FRAME,LEFT (BLACK)

€ 481.50

12-1

6813139A00M55
ref: 12-1

EMBLEM,FRAME COVER

€ 31.00

12-2

6813139A00A6S
ref: 12-2

EMBLEM,FRAME COVER

€ 20.50

12-3

6813139A00C2P
ref: 12-3

EMBLEM,FRAME COVER

€ 21.00

13-1

0214206104
ref: 13-1
02142-0610A

SCREW

€ 2.00

13-2

0214206103
ref: 13-2
02142-0610A

SCREW 6X10

€ 2.00

14

0932008013
ref: 14

CUSHION

€ 4.00

15

4725038A01
ref: 15

BOSS,FRAME COVER

€ 6.50

16

4721838A00
ref: 16
68241-04X50-300

MOLDING, FRAME COVER

€ 6.00
