FRONT WHEEL
VS800GL INTRUDER 1993 (P) USA (E03)

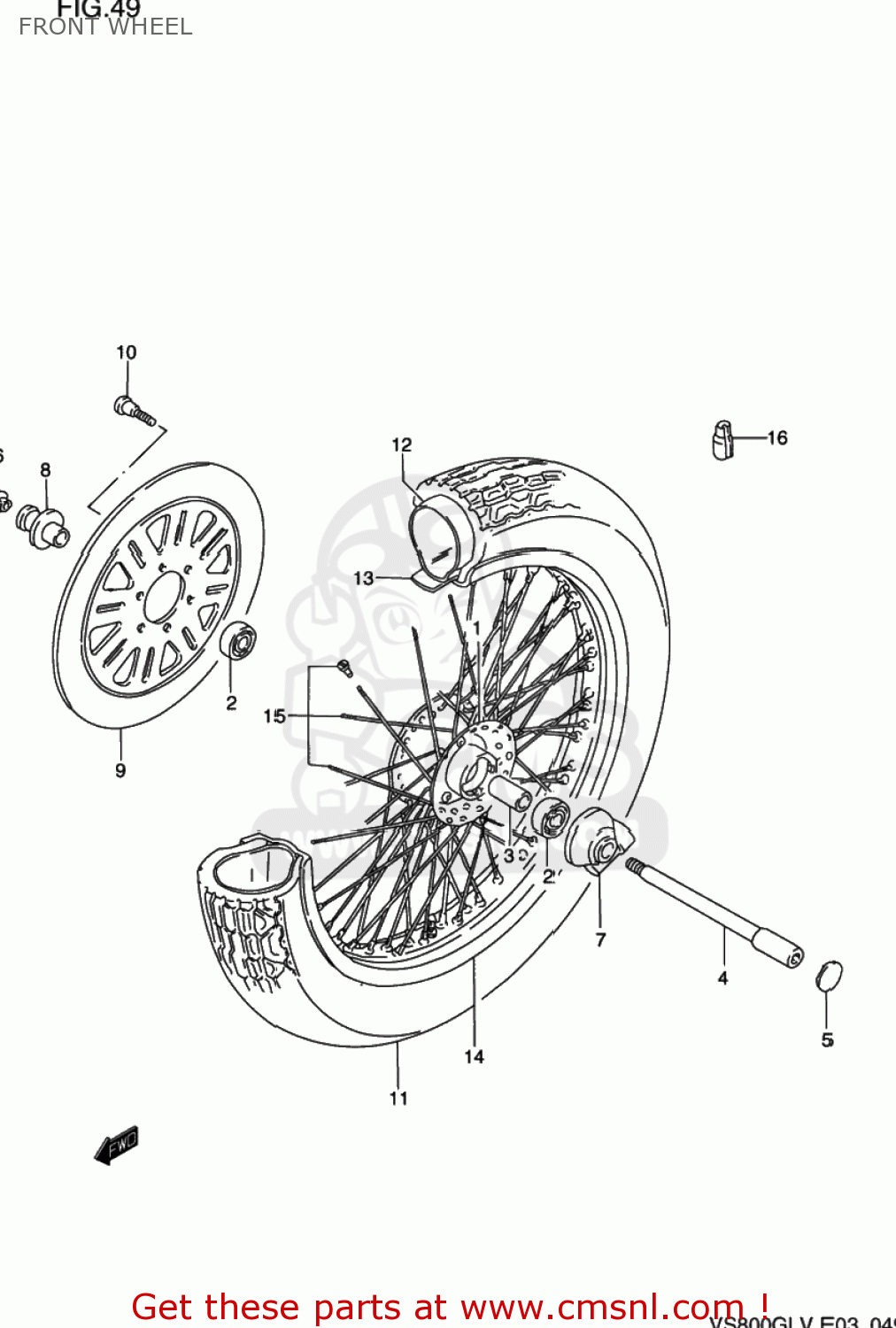

Front wheel diagram VS800GL INTRUDER 1993 (P) USA (E03)
FRONT WHEEL VS800GL INTRUDER 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5411038B00
ref: 1
HUB ASSY,FR
€ 323.50
2
0812363027
ref: 2
BEARING
€ 19.00
3
0918015004
ref: 3
SPACER(15.3X21.7X65)
€ 9.00
3
0918015004
ref: 3
SPACER(15.3X21.7X65)
€ 9.00
4
5471138B02
ref: 4
AXLE,FR
€ 60.50
5
5479238B00
ref: 5
CAP,FR AXLE
€ 97.00
6
5479138B01
ref: 6
CAP,FR AXLE
€ 4.50
7
5460038A11
ref: 7
BOX ASSY,SPEEDOMETER
€ 124.50
8
5475038B00
ref: 8
SPACER,FR AXLE
€ 25.50
9
5921138B00
ref: 9
DISC,FR BRAKE
€ 232.50
10-1
0910608049
ref: 10-1
BOLT(8X25.5)
€ 4.00
10-2
0910608125
ref: 10-2
09106-08148
BOLT 8X33
€ 6.00
11
5510038A60
ref: 11
TIRE,FR(80/90 21 48H)
€ 355.50
11
5510038A60
ref: 11
TIRE,FR(80/90 21 48H)
€ 355.50
12
5520016510
ref: 12
TUBE
€ 32.50
13
5526114540
ref: 13
PROTECTOR,WHEEL INNER
€ 5.00
14
5531138A30
ref: 14
RIM,FR WHEEL(21X2.15 AL)
€ 383.50
15
5532038A20
ref: 15
SPOKE SET,FR WHEEL
€ 174.50
16-1
5541238A00
ref: 16-1
55412-41F00
BALANCER,WHEEL
€ 6.50
16-2
5541338A00
ref: 16-2
55413-41F00
BALANCER,WHEEL (30G)
€ 8.00
