HANDLE SWITCH (MODEL S/T/V)

VS800GL INTRUDER 1993 (P) USA (E03)

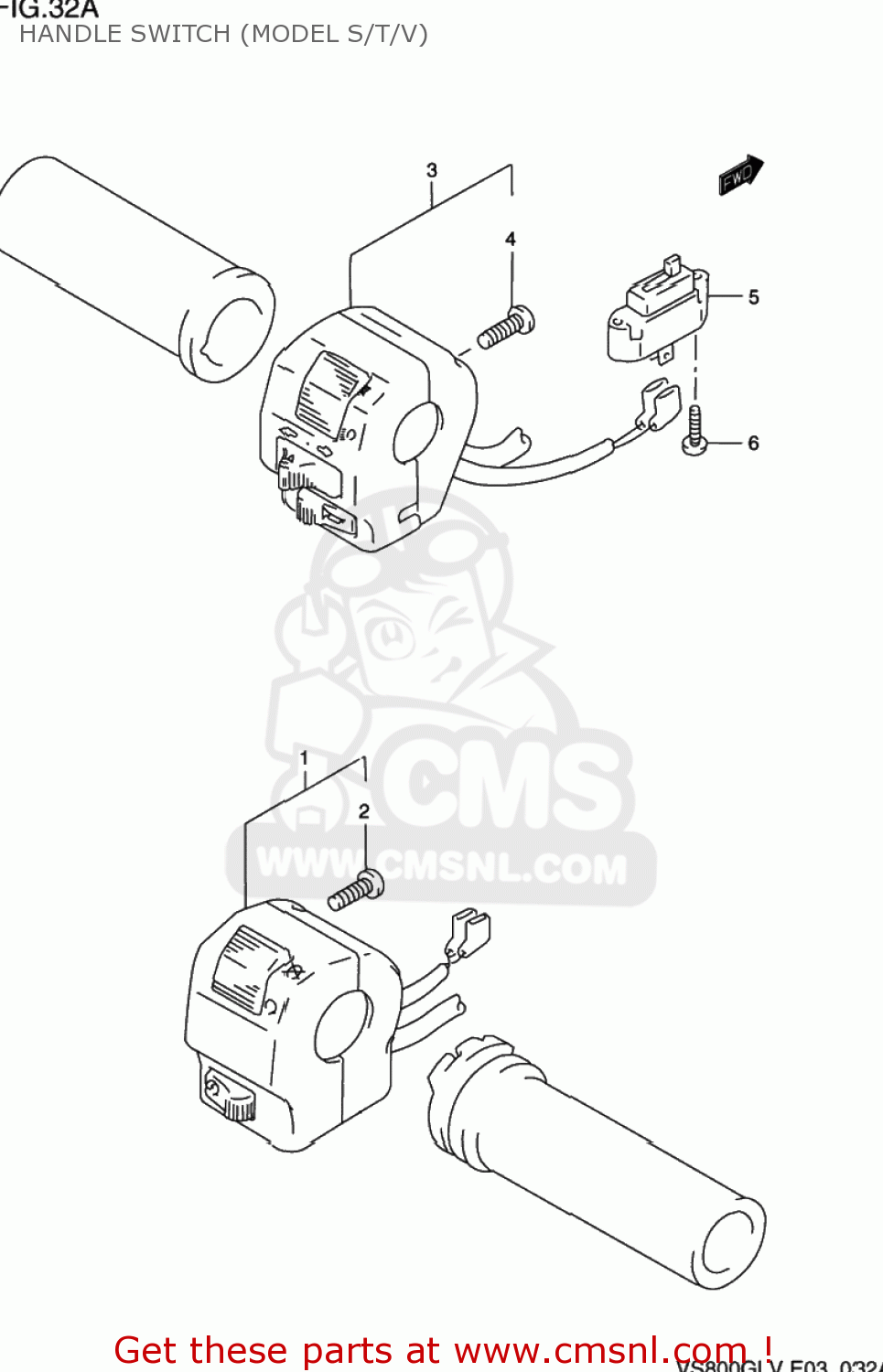

Handle switch (model s/t/v) diagram VS800GL INTRUDER 1993 (P) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3720038AD0
ref: 1-1

SWITCH ASSY,HANDLE,R

€ 226.00

1-2

3720039AD0
ref: 1-2

SWITCH ASSY,HANDLE,R

€ 0.00

0211205167
ref: 2

SCREW

€ 2.50

3-1

3740038AC0
ref: 3-1
37400-39AC0

SWITCH ASSEMBLY,HANDLE,LEFT

€ 179.00

3-2

3740039AC0
ref: 3-2

SWITCH ASSY,HANDLE,L

€ 179.00

0211205167
ref: 4

SCREW

€ 2.50

3756038A00
ref: 5

SWITCH ASSY,CLUTCH

€ 20.00

0214203127
ref: 6

SCREW

€ 2.00
